GEAR SHIFTING
RM500 1983 (D) USA (E03)

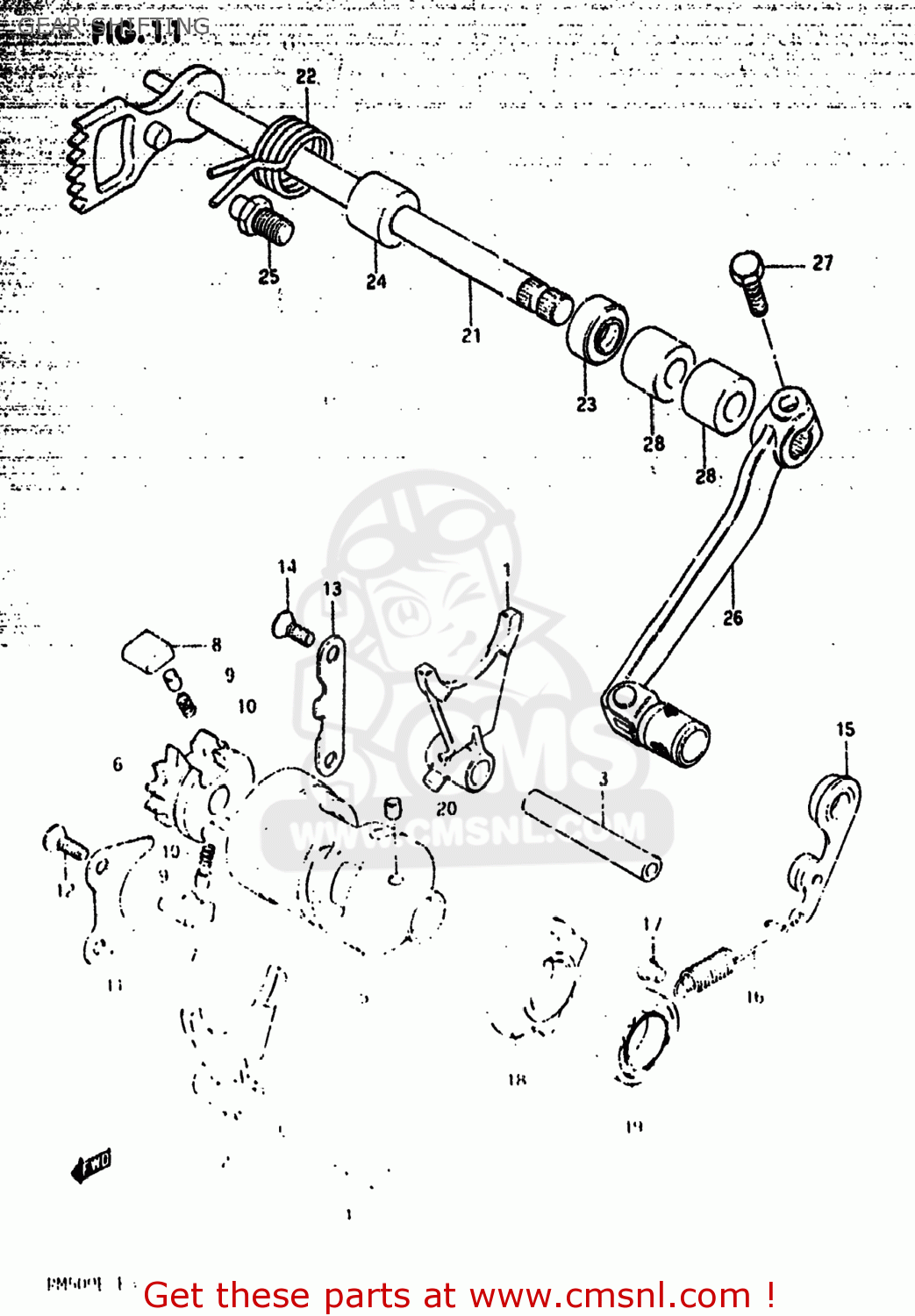

Gear shifting diagram RM500 1983 (D) USA (E03)
GEAR SHIFTING RM500 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521114230
ref: 1
FORK,GEAR SHIFT NO.1
€ 44.00
2
2522114230
ref: 2
25221-14X01
FORK,GEAR SHIFT NO.2
€ 39.00
3
2542114320
ref: 3
25421-14330
SHAFT,GEAR SHIFT FORK
€ 10.00
4
2542114300
ref: 4
25421-14301
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531014231
ref: 5
CAM,GEAR SHIFT
€ 65.50
6
2532211000
ref: 6
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
7
2532311000
ref: 7
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532411000
ref: 8
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533140400
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 3.50
12
0212206128
ref: 12
02122-06127
SCREW
€ 3.00
13
2534140001
ref: 13
STOPPER,GEAR SHIFT POLE
€ 6.50
14
0212206128
ref: 14
02122-06127
SCREW
€ 3.00
15
2535014230
ref: 15
STOPPER,GEAR SHIFTING
€ 0.00
16
0944308028
ref: 16
SPRING
€ 2.50
17
0922004001
ref: 17
09223-04001
RIVET
€ 1.50
18
2538114310
ref: 18
PLATE,GEAR SHIFT CAM STOPPER
€ 10.00
19
0811369030
ref: 19
BEARING
€ 14.00
20
0422104089
ref: 20
PIN
€ 1.50
21
2551014220
ref: 21
25510-142V0
SHAFT,GEAR SHIFT
€ 55.50
22
0944426013
ref: 22
SPRING
€ 3.50
23
0928512002
ref: 23
09285-12006
OIL SEAL
€ 7.00
24
0918012083
ref: 24
SPACER(12X20X15.3)
€ 2.50
25
2567101000
ref: 25
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
26
2560014310
ref: 26
25600-14321
LEVER ASSEMBLY,GEAR SHIFTING
€ 65.00
27
0151706258
ref: 27
01550-06257
BOLT
€ 2.50
28
0918012083
ref: 28
SPACER(12X20X15.3)
€ 2.50
