CYLINDER
RM500 1983 (D) USA (E03)

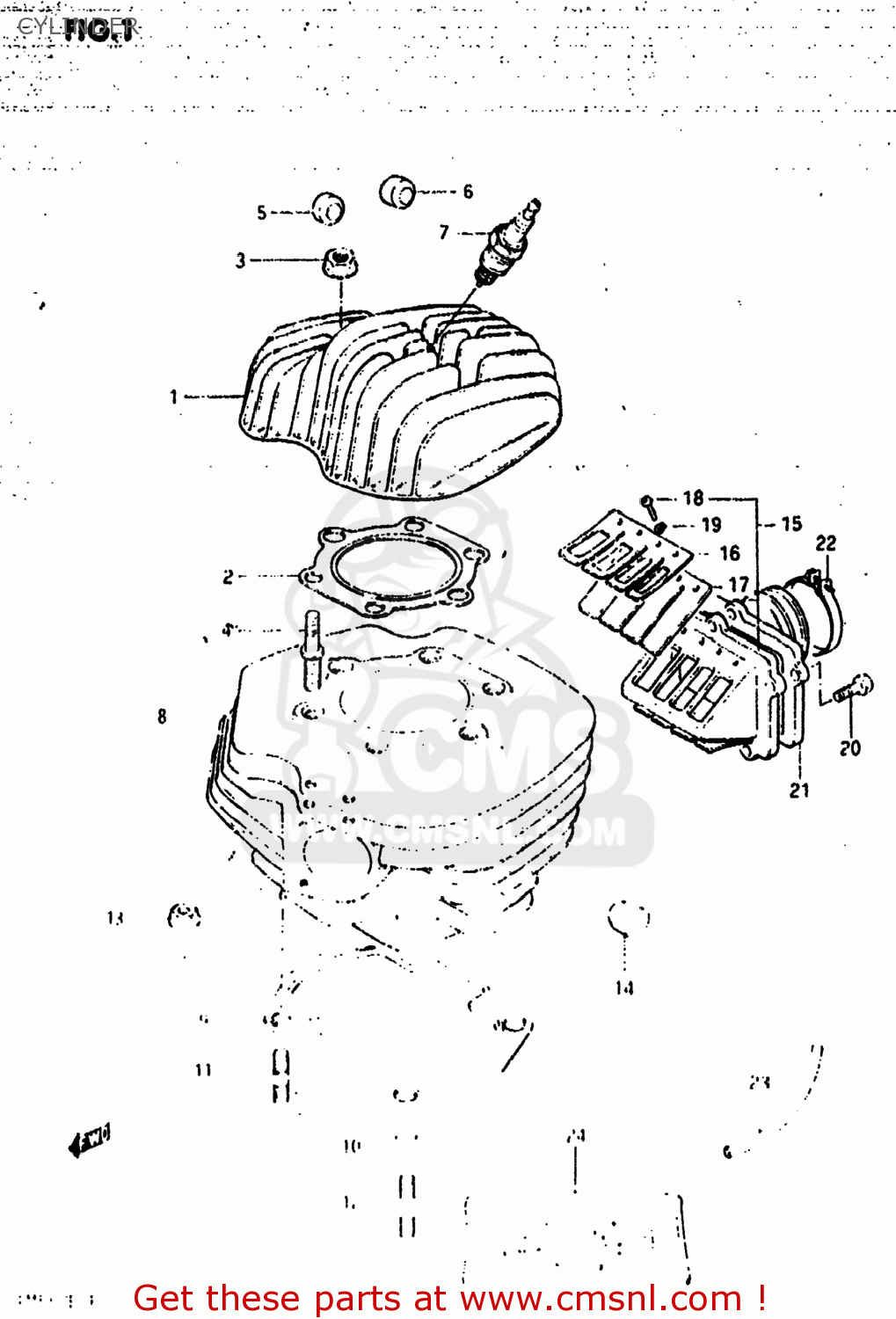

Cylinder diagram RM500 1983 (D) USA (E03)
CYLINDER RM500 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111114220
ref: 1
HEAD,CYLINDER
€ 0.00
2
1114114220
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 20.50
3
0831616085
ref: 3
08316-1008B
NUT 8MM
€ 3.00
4
0910808108
ref: 4
09108-08086
STUD
€ 4.00
5
1125228000
ref: 5
11252-13630
PAD,CYLINDER
€ 2.00
6
1125238001
ref: 6
PAD,CYLINDER HEAD
€ 3.50
7
0948200208
ref: 7
PLUG,SPARK(NGK B-8EN)
€ 16.00
8-1
1121014221
ref: 8-1
CYLINDER
€ 628.50
8-2
1121014233
ref: 8-2
CYLINDER
€ 628.50
9-1
1124114221
ref: 9-1
11241-14231-H17
GASKET,CYLINDER (MCA)
€ 17.00
9-2
1124114231
ref: 9-2
11241-14231-H17
GASKET,CYLINDER (MCA)
€ 17.00
10
0920613001
ref: 10
04211-13189
PIN
€ 2.50
11-1
0142110305
ref: 11-1
01421-1030A
STUD BOLT
€ 2.50
11-2
0910810065
ref: 11-2
STUD
€ 0.00
12-1
0142110405
ref: 12-1
01421-10403
STUD BOLT
€ 2.00
12-2
0910810066
ref: 12-2
09108-10066-XC0
BOLT,STUD L:60
€ 2.50
13
0831616105
ref: 13
08316-1010B
NUT
€ 2.00
14
1115116400
ref: 14
PAD,CYLINDER HEAD
€ 8.00
15
1315014200
ref: 15
13150-01C00
VALVE ASSEMBLY,REED
€ 97.00
16
1315214200
ref: 16
13150-01C00
STOPPER,REED VALVE
€ 97.00
17
1315314200
ref: 17
VALVE,REED
€ 15.50
18
0211203088
ref: 18
02112-03087
SCREW
€ 1.50
19
0832121038
ref: 19
09162-03001
LOCK WASHER
€ 1.50
20
0110706205
ref: 20
01500-0620A
BOLT
€ 2.00
21
1311014210
ref: 21
PIPE,INTAKE
€ 39.00
22
0940256306
ref: 22
09402-56901
CLAMP
€ 3.50
23-1
0934304046
ref: 23-1
09352-40703-600
HOSE
€ 3.00
23-2
0934304046
ref: 23-2
09352-40703-600
HOSE
€ 3.00
23-3
0934304046
ref: 23-3
09352-40703-600
HOSE
€ 3.00
24-1
1140014880
ref: 24-1
11400-14886
GASKET
€ 31.50
24-2
1140014884
ref: 24-2
11400-14886
GASKET
€ 31.50
