REAR SWINGING ARM (MODEL E)
RM500 1983 (D) USA (E03)

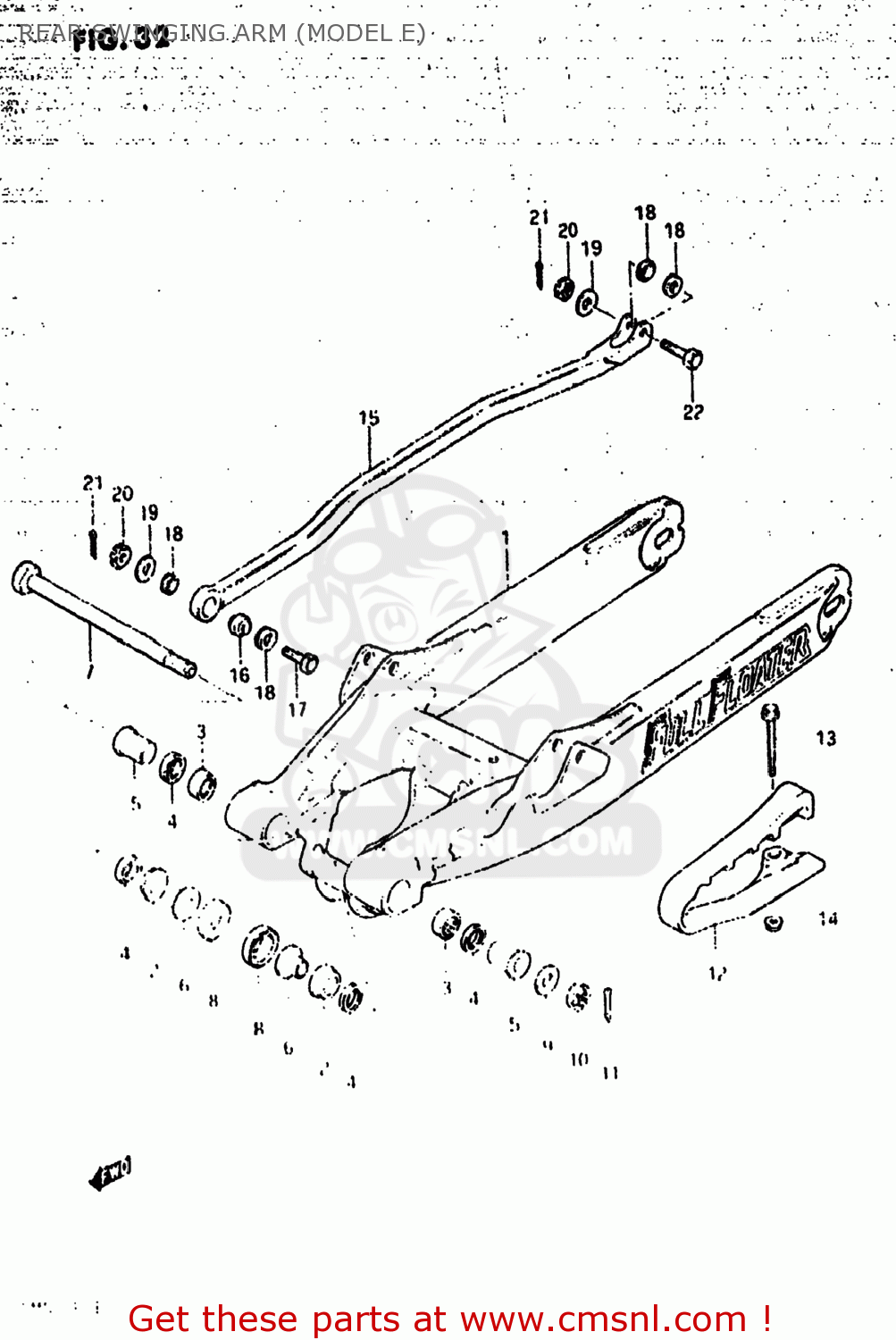

Rear swinging arm (model e) diagram RM500 1983 (D) USA (E03)
REAR SWINGING ARM (MODEL E) RM500 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100014240
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
6126140402
ref: 2
61261-27C00
BUSHING,REAR SWING ARM PIVOT
€ 26.00
3
0926320041
ref: 3
BEARING(20X27X20)
€ 15.00
4
0928520005
ref: 4
09283-20031
OIL SEAL
€ 5.00
5
6125114100
ref: 5
SPACER,RR SWGARM PIVOT
€ 16.00
6
6125214100
ref: 6
SPACER,RR SWGARM PIVOT INNER
€ 12.50
7
6121114102
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 47.50
8
6126240400
ref: 8
COVER,RR SWGARM DUST SEAL
€ 4.00
9
0916014009
ref: 9
WASHER(14.5X29X2.3)
€ 3.50
10
0831441146
ref: 10
08314-4014B
NUT
€ 3.00
11
0411130308
ref: 11
04111-3030A
COTTER PIN
€ 1.50
12
6127314240
ref: 12
BUFFER,CHAIN TOUCH DEFLECTOR
€ 22.00
13
0151706658
ref: 13
01550-06657
BOLT 6X65
€ 3.00
14
0831931068
ref: 14
08319-31067
NUT
€ 2.50
15
6430014850
ref: 15
64300-14240
LINK,REAR TORQUE
€ 109.50
16
6435240411
ref: 16
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
17
0910108003
ref: 17
BOLT 8X28
€ 2.00
18
6433940410
ref: 18
6433940410
19
0832211088
ref: 19
08322-01087
WASHER
€ 2.00
20
0831441088
ref: 20
08314-4008B
NUT 8MM
€ 2.50
21
0411120208
ref: 21
04111-2020A
PIN 20X20
€ 1.50
22
0910108014
ref: 22
BOLT 8X29.5
€ 1.50
