RM500 1983 (D) USA (E03)

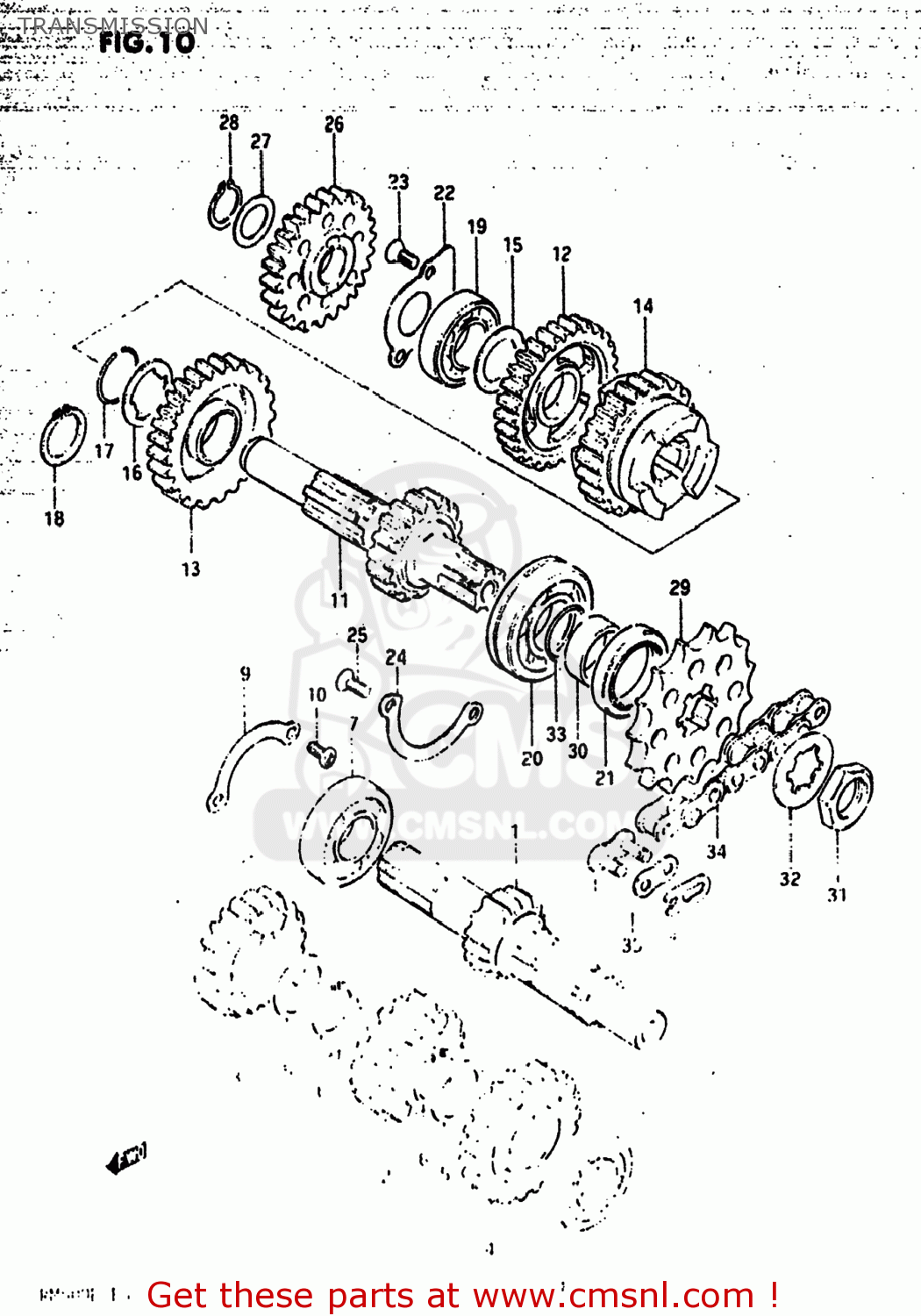

Transmission diagram RM500 1983 (D) USA (E03)
TRANSMISSION RM500 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412014230
ref: 1
SHAFT,COUNTER
€ 152.50
2
2422114230
ref: 2
24221-14231
GEAR,SECOND DRIVE
€ 93.00
3
2423014230
ref: 3
GEAR,THIRD DRIVE
€ 54.50
4
2424114230
ref: 4
GEAR,FOURTH DRIVE
€ 54.50
5
0821125301
ref: 5
WASHER
€ 3.00
6
0938025010
ref: 6
CIRCLIP
€ 3.00
7
0926222012
ref: 7
09262-22025
BEARING
€ 63.50
8
0811360040
ref: 8
09262-20106
BEARING, LH
€ 20.50
9
2474114210
ref: 9
RETAINER,BEARING
€ 0.00
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11-1
2413014230
ref: 11-1
24130-14231
SHAFT,DRIVE
€ 165.00
11-2
2413014231
ref: 11-2
SHAFT,DRIVE
€ 165.00
12
2431114230
ref: 12
GEAR,FIRST DRIVEN
€ 65.50
13
2432014231
ref: 13
GEAR,SECOND DRIVEN
€ 54.50
14
2433114231
ref: 14
GEAR,THIRD DRIVEN
€ 57.00
15
0821120363
ref: 15
WASHER
€ 3.50
16
0916728004
ref: 16
WASHER
€ 0.00
17
0938028004
ref: 17
CIRCLIP
€ 1.50
18
0833111289
ref: 18
08331-3128A
CIRCLIP
€ 2.50
19
0926420002
ref: 19
BEARING
€ 25.50
20
0926228004
ref: 20
BEARING(28X58X16)
€ 33.00
21
0928335023
ref: 21
SEAL,OIL(35X45X6)
€ 9.50
22-1
2475114211
ref: 22-1
24751-14212
RETAINER,DRIVESHAFT
€ 0.00
22-2
2475114212
ref: 22-2
RETAINER,DRIVESHAFT
€ 0.00
23
0212206128
ref: 23
02122-06127
SCREW
€ 3.00
24
2475214220
ref: 24
PLATE,DRIVESHAFT BEARING
€ 5.50
25
0212206128
ref: 25
02122-06127
SCREW
€ 3.00
26
2626014201
ref: 26
GEAR,KICK STARTER IDLE
€ 41.00
27
0821120281
ref: 27
09181-20167
WASHER,THRUST
€ 2.50
28
0833111209
ref: 28
08331-3120A
CIRCLIP
€ 2.50
29-1
2751114220
ref: 29-1
SPROCKET,ENGINE (NT:14)
€ 24.50
29-2
2751114230
ref: 29-2
SPROCKET,ENGINE(NT:13)
€ 19.00
29-3
2751114240
ref: 29-3
SPROCKET,ENGINE (NT:15)
€ 21.00
30
0918028003
ref: 30
SPACER(28X35X11.4)
€ 11.50
31
0914028001
ref: 31
09140-28003
NUT
€ 8.00
32
0916728003
ref: 32
WASHER,LOCK
€ 6.50
33
0928028004
ref: 33
O RING(D:1.5,ID:27.7)
€ 7.50
34
2760014310
ref: 34
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
35-1
2762014270
ref: 35-1
JOINT ASSEMBLY,CHAIN
€ 8.50
35-2
2762014261
ref: 35-2
27620-14262
JOINT ASSEMBLY,CHAIN
€ 0.00
