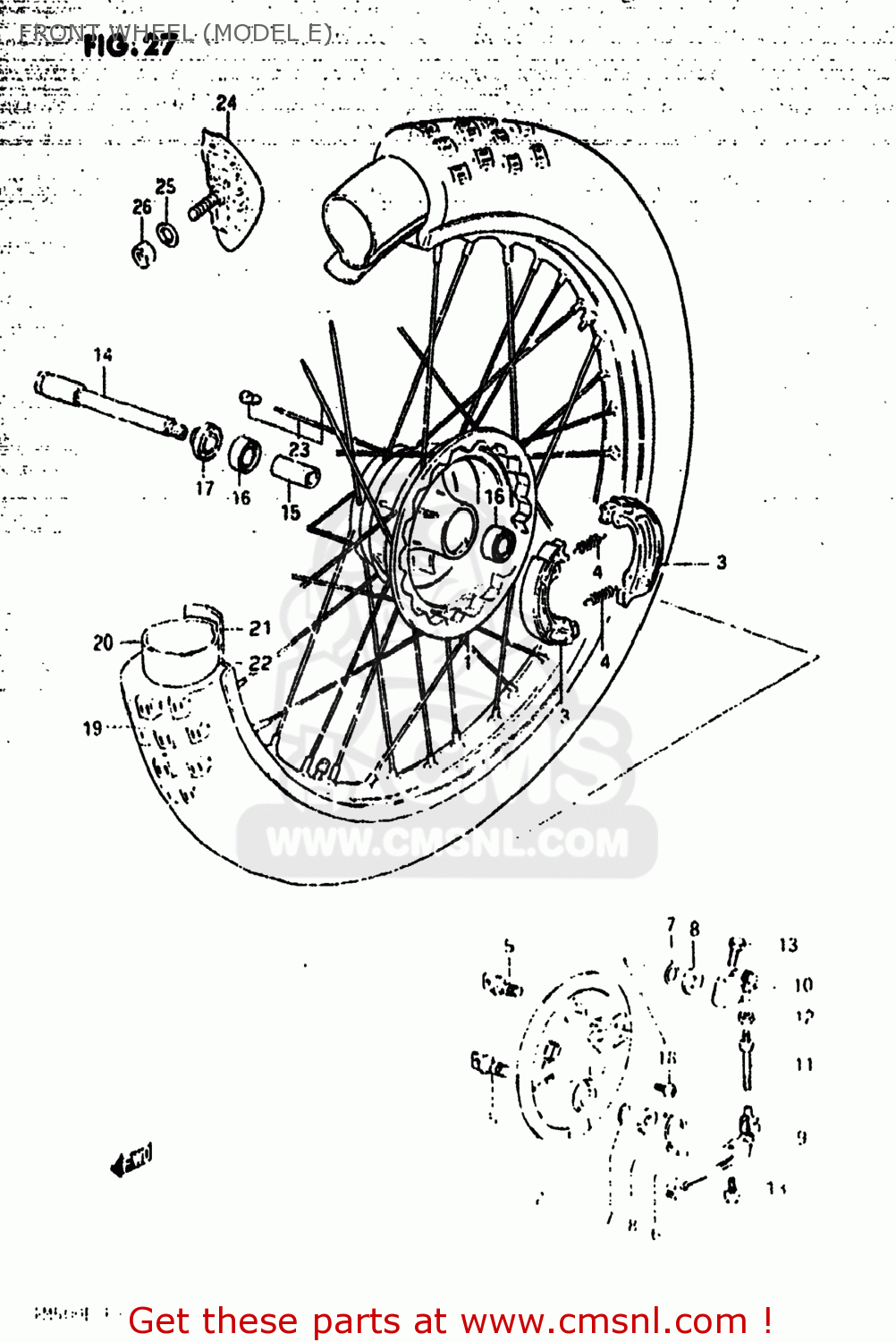

FRONT WHEEL (MODEL E)

ref

part #

description

quantity

1

5411014121
ref: 1

DRUM,FRONT HUB

€ 196.00

2

5421014500
ref: 2

PANEL,FRONT HUB

€ 138.00

3

5441014300
ref: 3
54400-14840

SHOE,BRAKE (MCA)

€ 55.00

4

0944309017
ref: 4

SPRING

€ 4.50

5

5444114310
ref: 5

CAM,FRONT BRAKE

€ 11.50

6

0944832014
ref: 6

SPRING

€ 6.50

7

0928014008
ref: 7

O-RING (D:2 ID13.8)

€ 2.00

8

0916014003
ref: 8
09160-14054

WASHER (14.2X22X1)

€ 1.00

9

5440014500
ref: 9

SHOE SET,BRAKE

€ 33.50

10

5450014300
ref: 10

LEVER ASSY, BRAKE CAM, NO.2

€ 22.50

11

5447114300
ref: 11

ROD,BRAKE CAM LEVER CONNECTION

€ 10.00

12

0831022068
ref: 12
08310-00067

NUT 6MM

€ 2.50

13

0110706258
ref: 13
01500-06257

BOLT

€ 2.00

14

5471114500
ref: 14

AXLE,FRONT

€ 46.50

15

5473014100
ref: 15

SPACER,FRONT HUB BEARING

€ 23.00

16

0926215011
ref: 16
09262-15024

BALL BEARING 15X35X11

€ 22.00

17

5474014200
ref: 17

SPACER,FRONT AXLE,RIGHT

€ 8.50

18

0211206108
ref: 18
02112-06107

SCREW

€ 1.50

19

5510014300
ref: 19

TIRE,FRONT

€ 0.00

20

5520014600
ref: 20
55200-16510

TUBE,INNER

€ 32.50

21

5526116510
ref: 21
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

22

5531114500
ref: 22

RIM,FRONT WHEEL (1.60X21)

€ 124.50

23

5532014111
ref: 23

SPOKE SET,FRONT

€ 41.00

24

6527014300
ref: 24

STOPPER,BEAD

€ 26.00

25

0832211088
ref: 25
08322-01087

WASHER

€ 2.00

26

0831022088
ref: 26
08310-00087

NUT 8MM

€ 2.00

all assemblies
