CRANKCASE
RM500 1984 (E) USA (E03)

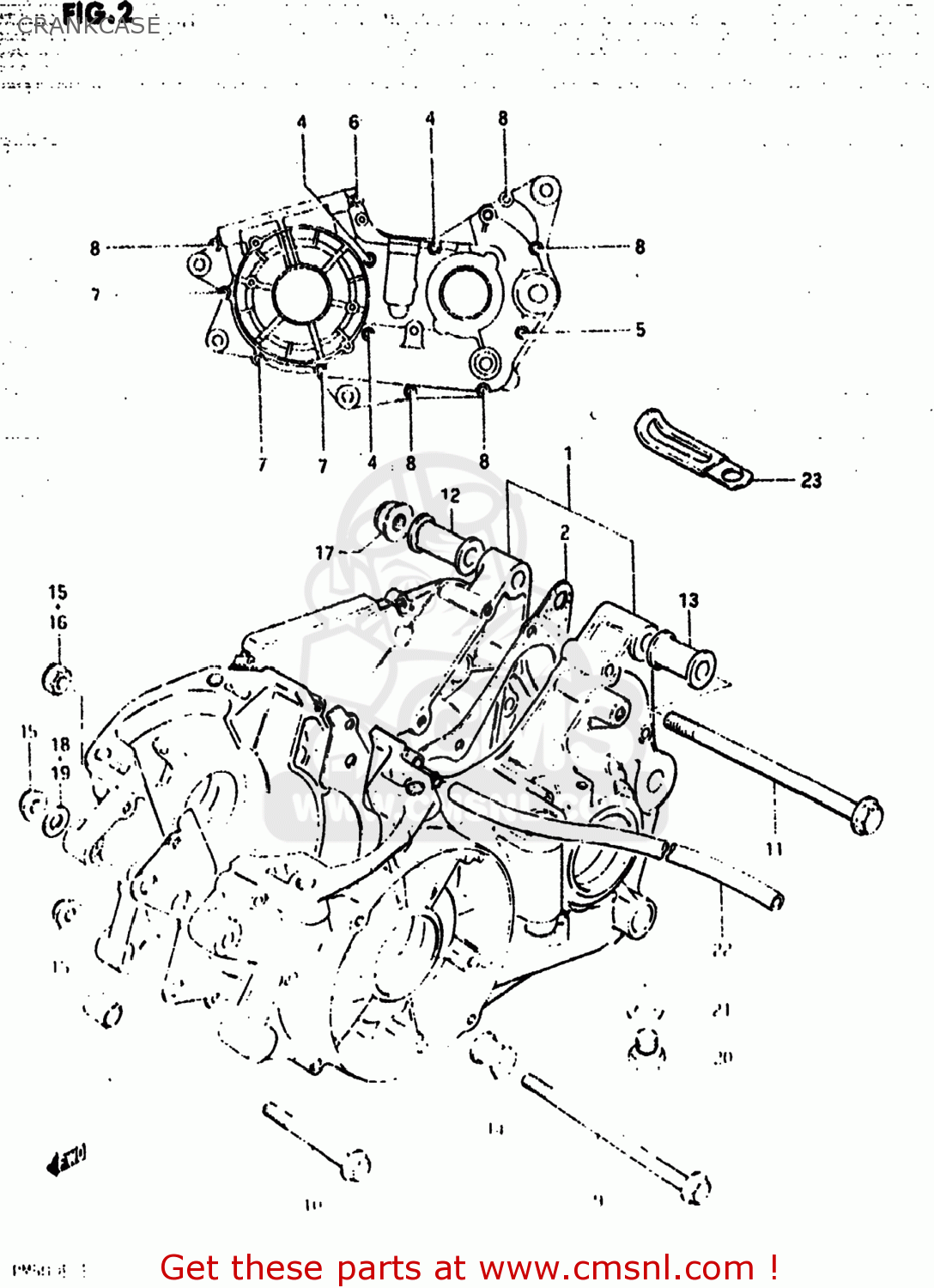

Crankcase diagram RM500 1984 (E) USA (E03)
CRANKCASE RM500 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130114820
ref: 1
CRANKCASE SET
€ 945.00
2
1148114230
ref: 2
11481-14230-H17
GASKET,CRANKCASE
€ 26.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206658
ref: 4
02112-06657
SCREW 6X65
€ 2.00
5
0211206557
ref: 5
SCREW
€ 2.50
6
0211206458
ref: 6
02112-06457
SCREW (6X45)
€ 2.00
7
0211206508
ref: 7
02112-06507
SCREW
€ 2.50
8
0211206358
ref: 8
02112-06357
SCREW (6X35)
€ 2.50
9
0910008191
ref: 9
BOLT 8X200
€ 9.00
10
0910308063
ref: 10
BOLT(8X75)
€ 79.50
11
0910310041
ref: 11
09103-10041-A05
BOLT 10X215
€ 9.00
12
1161114210
ref: 12
SPACER,ENGINE MOUNT
€ 33.50
13
1161114220
ref: 13
11610-14A00
SPACER,ENGINE MOUNT
€ 9.00
14
1161114230
ref: 14
11610-14200
SPACER,ENGINE MOUNT
€ 7.50
15-1
0831931088
ref: 15-1
08319-3108A
NUT
€ 2.50
15-2
0831931088
ref: 15-2
08319-3108A
NUT
€ 2.50
16
0831921088
ref: 16
08319-2108A
NUT
€ 1.50
17
0831931108
ref: 17
NUT
€ 3.00
18
0916910011
ref: 18
WASHER
€ 1.00
19
0916910012
ref: 19
WASHER
€ 1.00
20
0924714001
ref: 20
09247-14002
PLUG
€ 5.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
0934304046
ref: 22
09352-40703-600
HOSE
€ 3.00
23
0940408402
ref: 23
09404-08420
CLAMP
€ 3.50
