MAGNETO
RM500 1984 (E) USA (E03)

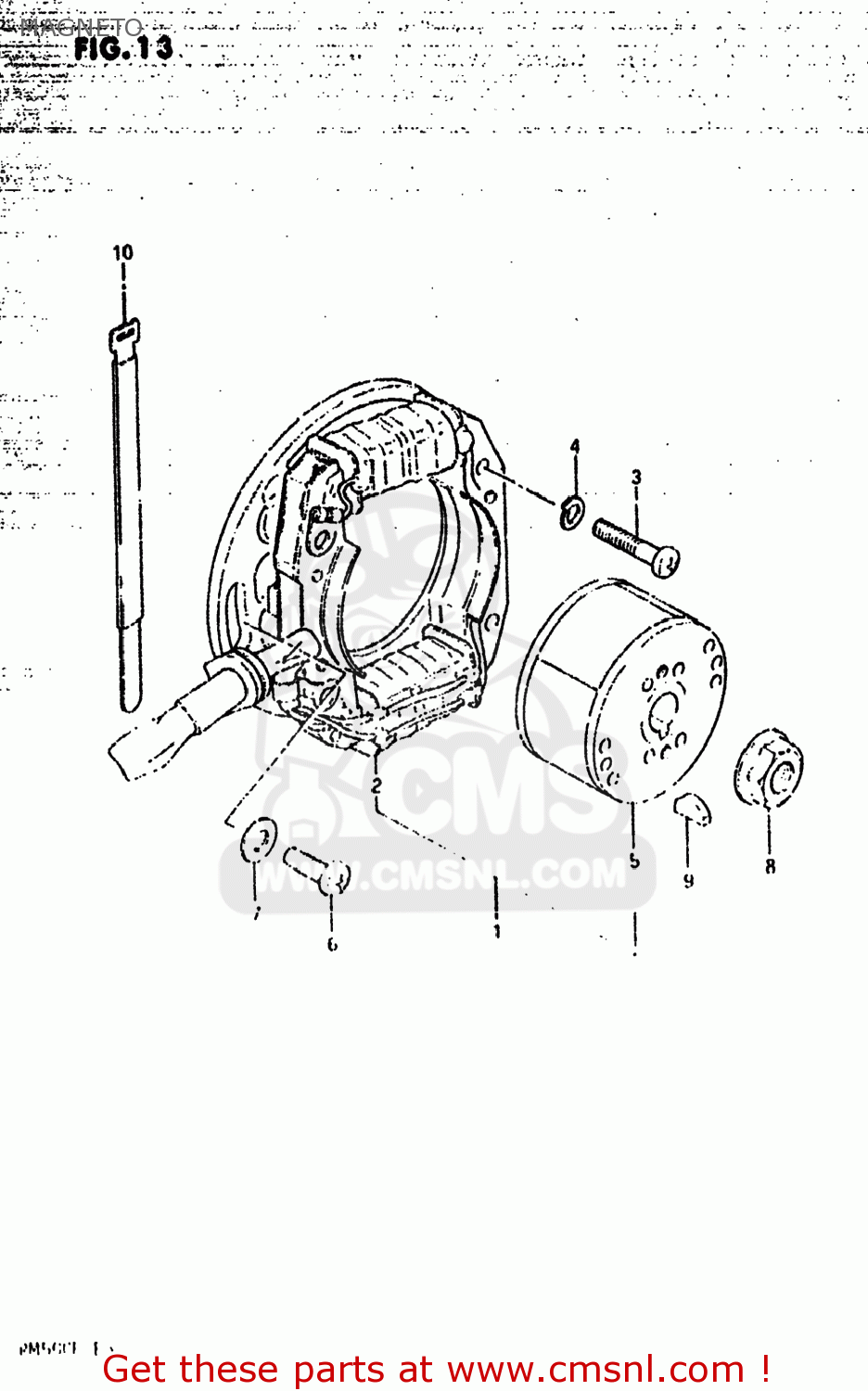

Magneto diagram RM500 1984 (E) USA (E03)
MAGNETO RM500 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210040422
ref: 1
MAGNETO ASSEMBLY
€ 377.00
2
3210140422
ref: 2
STATOR ASSEMBLY
€ 222.50
3
0211205208
ref: 3
02112-05207
SCREW 5X20
€ 3.00
4
0832121058
ref: 4
08321-0105A
LOCK WASHER
€ 2.00
5
3210240422
ref: 5
ROTOR ASSEMBLY
€ 334.50
6
0211206168
ref: 6
02112-06167
SCREW
€ 2.50
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
0831616108
ref: 8
08316-10107
NUT
€ 2.00
9
0834131049
ref: 9
09420-04008
KEY 4MM
€ 3.50
10
0940725301
ref: 10
CLAMP(L:250)
€ 4.50
