RM500 1984 (E) USA (E03)

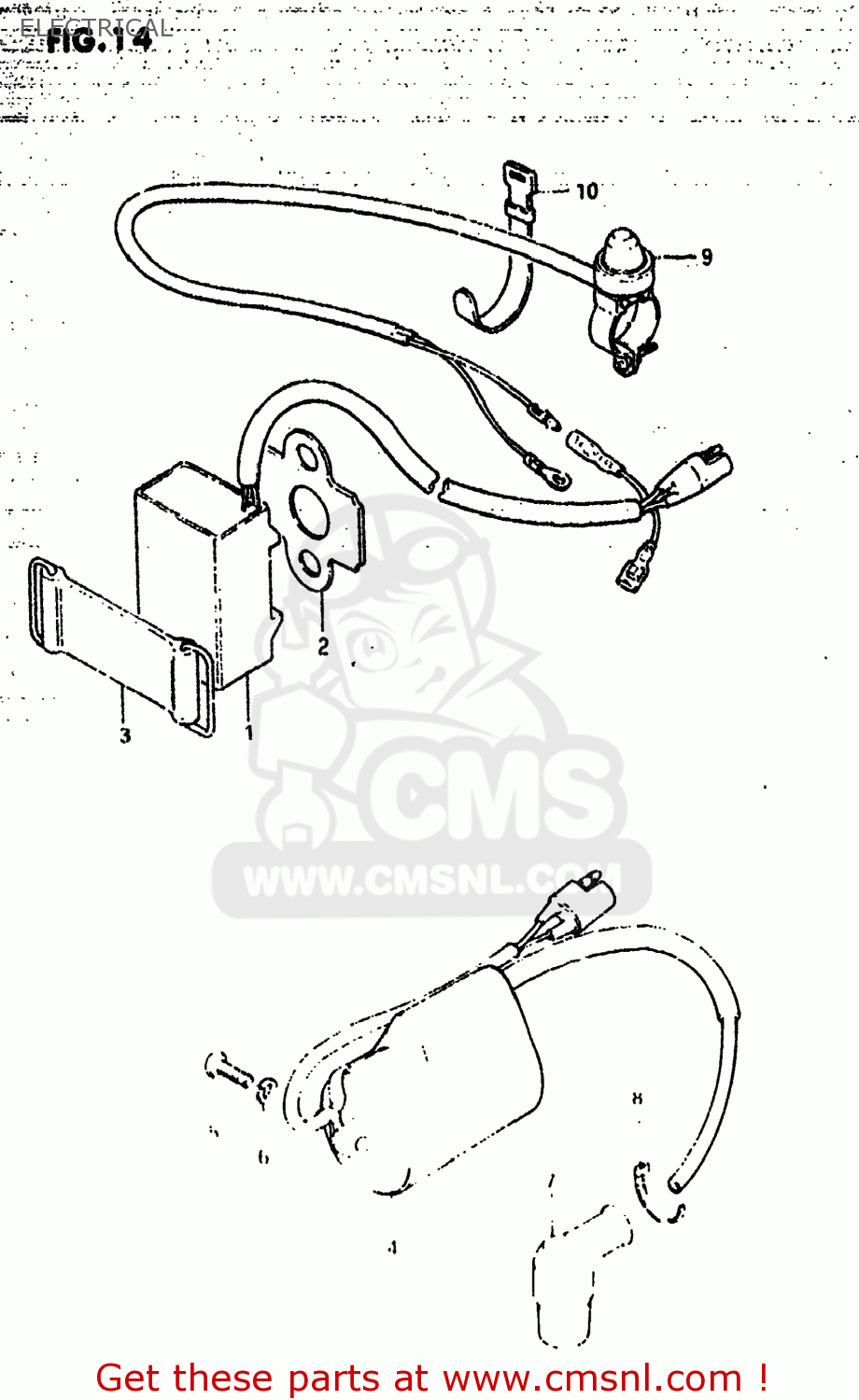

Electrical diagram RM500 1984 (E) USA (E03)
ELECTRICAL RM500 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290014220
ref: 1
CDI UNIT
€ 351.50
2
3294114300
ref: 2
PROTECTOR,CDI UNIT
€ 4.00
3
3294214110
ref: 3
32942-14111
BAND
€ 8.00
4
3341014120
ref: 4
COIL ASSY,IGNITION
€ 100.00
5
0211205208
ref: 5
02112-05207
SCREW 5X20
€ 3.00
6
0832121058
ref: 6
08321-0105A
LOCK WASHER
€ 2.00
7
3351041111
ref: 7
33510-20A02
CAP,SPARK PLUG
€ 23.00
8
0940709402
ref: 8
CLAMP
€ 3.00
9
3782040400
ref: 9
37820-14X50
SWITCH ASSEMBLY
€ 24.50
10
0940712402
ref: 10
CLAMP(L:120)
€ 3.00
