FUEL TANK (MODEL E)
RM500 1984 (E) USA (E03)

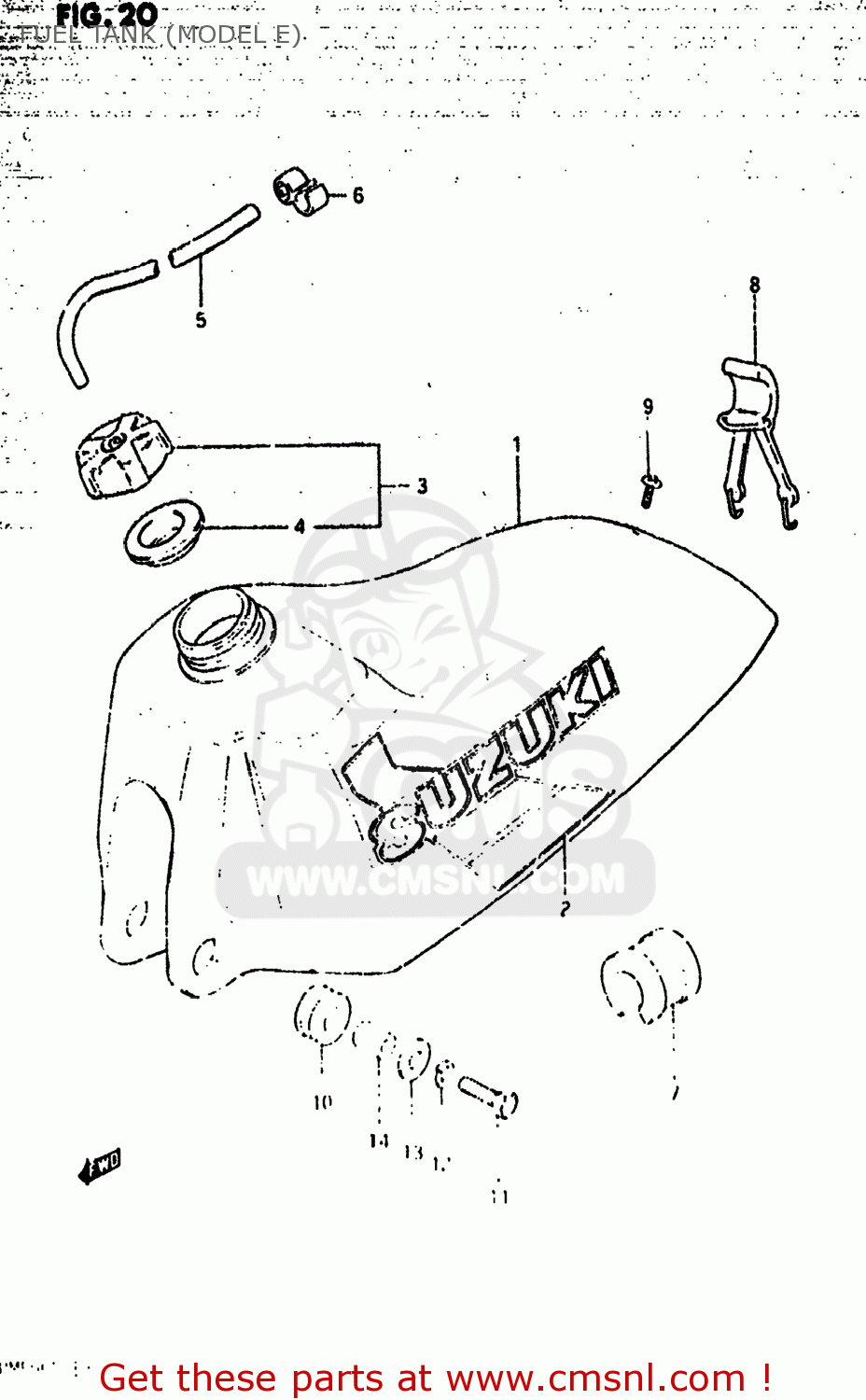

Fuel tank (model e) diagram RM500 1984 (E) USA (E03)
FUEL TANK (MODEL E) RM500 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410114860163
ref: 1
TANK ASSEMBLY,FUEL
€ 0.00
2
681101424082M
ref: 2
TAPE SET,FUEL TANK
€ 40.00
3
4420014820
ref: 3
44200-27870
CAP SET,FUEL TANK
€ 19.50
4
4424840400
ref: 4
44248-05210
GASKET,FUEL TANK CAP (NAS)
€ 4.50
5
0934305129
ref: 5
44420-44AR0
HOSE
€ 13.00
6
4448640200
ref: 6
CLAMP,BREATHER HOSE
€ 2.50
7
4454114101
ref: 7
CUSHION,FUEL TANK UPR
€ 15.50
8
4456014102
ref: 8
44560-02B00
BAND,FUEL TANK,REAR
€ 9.50
9
0912506009
ref: 9
09125-06073
SCREW (6X15)
€ 3.00
10
0932012030
ref: 10
CUSHION
€ 3.50
11
0110708308
ref: 11
01500-08307
BOLT (8X30)
€ 2.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0916008064
ref: 13
09160-08032
WASHER (8.5X26X1.2)
€ 3.50
14
0918008003
ref: 14
09180-08191
SPACER (8.8X12X13.5)
€ 5.00
