HANDLEBAR
RM500 1984 (E) USA (E03)

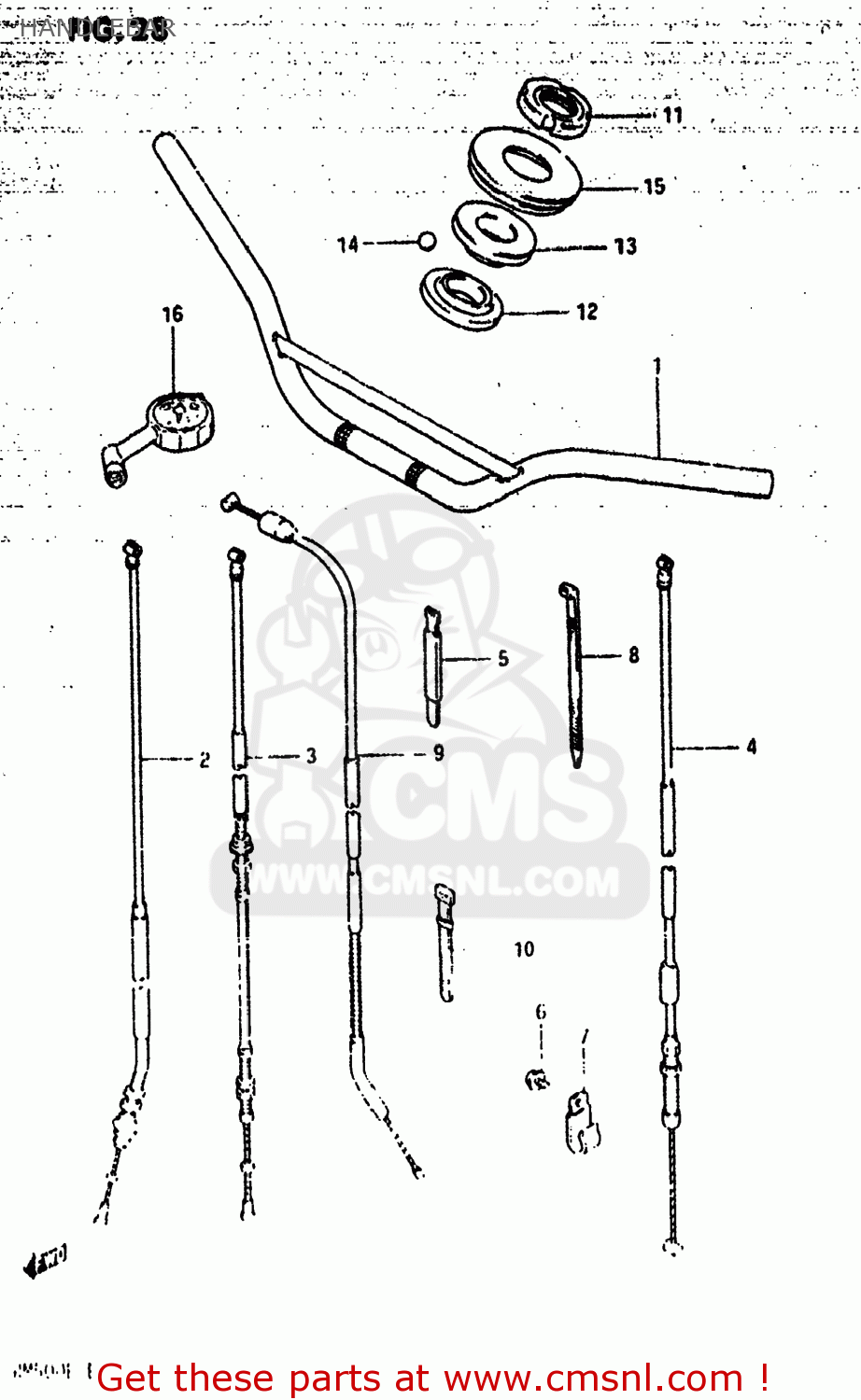

Handlebar diagram RM500 1984 (E) USA (E03)
HANDLEBAR RM500 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611014101291
ref: 1-1
56110-14211-291
HANDLEBAR
€ 63.00
1-2
561101410119T
ref: 1-2
56110-14400-19T
HANDLEBAR
€ 0.00
2
5810014310
ref: 2
CABLE ASSY,FR BRAKE
€ 31.50
3
5811014501
ref: 3
CABLE,FR BRAKE
€ 36.50
4-1
5820014212
ref: 4-1
58200-14213
CABLE ASSEMBLY,CLUTCH
€ 29.00
4-2
5820014213
ref: 4-2
CABLE ASSY,CLUTCH
€ 29.00
5
0940718301
ref: 5
CLAMP
€ 6.00
6
0215206108
ref: 6
02142-0610A
SCREW
€ 2.00
7
0940309301
ref: 7
09403-00069
CLAMP
€ 8.50
8
0940720401
ref: 8
09407-25402
CLAMP
€ 4.50
9
5830014310
ref: 9
58300-14X08
CABLE ASSEMBLY,THROTTLE
€ 29.00
10
0940718401
ref: 10
CLAMP(L:187)
€ 2.00
11
5163140200
ref: 11
NUT,STEERING STEM
€ 12.00
12
5161140200
ref: 12
51611-40201
RACE,STEERING,INNER,UPPER
€ 8.50
13
5162140200
ref: 13
51621-08D00
RACE,STEERING,OUTER,UPPER
€ 17.00
14
0611108003
ref: 14
BALL
€ 1.50
15
5164340200
ref: 15
SEAL,STEERING UPR DUST
€ 7.50
16
9620041330
ref: 16
GAUGE ASSY,AIR PRESSURE
€ 77.50
