REAR WHEEL (MODEL E)
RM500 1984 (E) USA (E03)

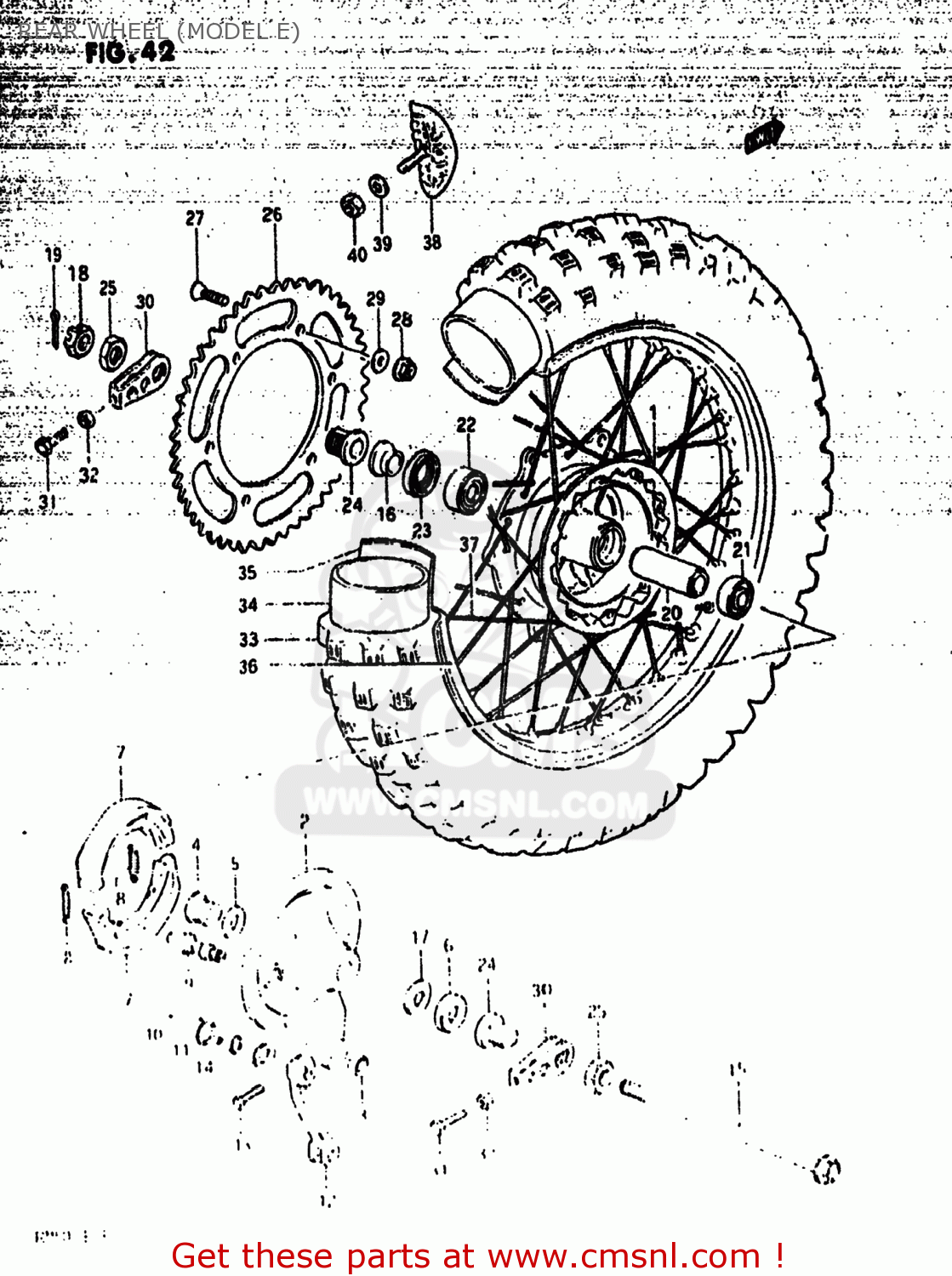

Rear wheel (model e) diagram RM500 1984 (E) USA (E03)
REAR WHEEL (MODEL E) RM500 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411014240
ref: 1
DRUM,REAR HUB
€ 0.00
2
6420014860
ref: 2
PANEL SET
€ 211.00
3
6435240401
ref: 3
SPHERICAL BRNG,TORQUE LINK
€ 69.50
4
6421314600
ref: 4
SPACER,REAR HUB PANEL
€ 28.50
5
0928524001
ref: 5
SEAL,OIL(24X31X5)
€ 4.50
6
6484537200
ref: 6
CVR,RR BRAKE AHR PNL DUST SEAL
€ 12.00
7
5441014100
ref: 7
64400-40810
SHOE,BRAKE
€ 21.50
8
6443014600
ref: 8
SPRING,BRAKE SHOE
€ 4.00
9
5444114101
ref: 9
CAM,FR BRAKE
€ 16.00
10
0944830007
ref: 10
09448-30007-XC0
SPRING
€ 19.00
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
€ 2.50
12
6445114240
ref: 12
64451-14100
LEVER,REAR BRAKE CAM
€ 62.50
13
0110706258
ref: 13
01500-06257
BOLT
€ 2.00
14
0916012011
ref: 14
WASHER(12.5X20X1)
€ 1.50
15
6471114600
ref: 15
AXLE,REAR
€ 47.00
16
6475114240
ref: 16
SPACER,REAR AXLE,LEFT
€ 8.00
17
0821117361
ref: 17
WASHER
€ 2.00
18
0831441168
ref: 18
08314-4016A
NUT
€ 4.50
19
0411140308
ref: 19
04111-4030A
PIN,COTTER
€ 1.50
20
6473014240
ref: 20
SPACER,REAR HUB BEARING
€ 13.50
21
0812362037
ref: 21
08133-62037
BEARING
€ 24.50
22
0926717001
ref: 22
BALL BEARING 17X47X22
€ 47.50
23
0928425003
ref: 23
OIL SEAL (25X47X7.5)
€ 8.00
24
6478140600
ref: 24
SPACER,CHAIN ADJUSTER
€ 18.50
25
0914024007
ref: 25
NUT
€ 4.50
26
6451114220
ref: 26
SPROCKET,REAR (NT:46)(AL)
€ 126.00
27
0912008009
ref: 27
SCREW(8X40)
€ 3.00
28
0831931088
ref: 28
08319-3108A
NUT
€ 2.50
29
0832211088
ref: 29
08322-01087
WASHER
€ 2.00
30
6141040600
ref: 30
ADJUSTER,CHAIN
€ 18.00
31
0910408006
ref: 31
09104-08034
BOLT
€ 3.00
32
0831012088
ref: 32
08310-00087
NUT
€ 2.00
33
6510014300
ref: 33
TIRE 140/80-18
€ 0.00
34
6520014600
ref: 34
TUBE ASSEMBLY,WHEEL,INNER
€ 0.00
35
6526133030
ref: 35
PROTECTOR,INNER TUBE
€ 5.50
36
6531114240
ref: 36
RIM,REAR WHEEL (2.50X18)(
€ 276.00
37
6532014230
ref: 37
SPOKE SET,REAR WHEEL
€ 41.00
38
6527040420
ref: 38
STOPPER,BEAD
€ 70.50
39
0832211088
ref: 39
08322-01087
WASHER
€ 2.00
40
0831012088
ref: 40
08310-00087
NUT
€ 2.00
