CLUTCH
RM500 1984 (E)

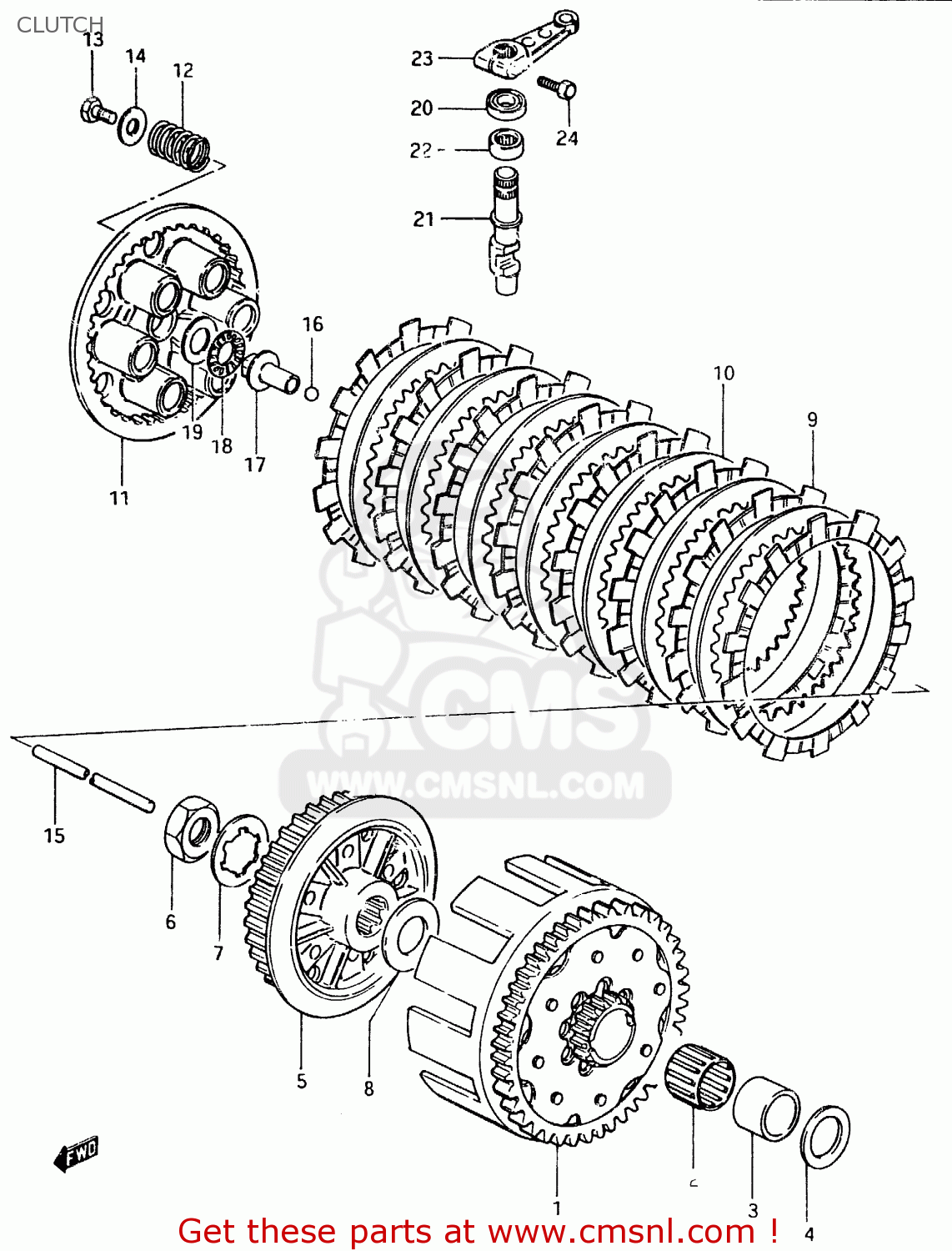

Clutch diagram RM500 1984 (E)
CLUTCH RM500 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
2120014211
ref: 1
NT:18/62
GEAR ASSEMBLY,PRIMARY DRIVE
€ 190.00
2
0926328002
ref: 2
BEARING(28X33X27)
€ 21.00
3
0918022021
ref: 3
SPACER(22X28X27)
€ 16.00
4
0821122403
ref: 4
WASHER
€ 4.00
5
2141114211
ref: 5
MODEL D
HUB,CLUTCH SLEEVE
€ 69.00
5
2141114212
ref: 5
MODEL E
HUB,CLUTCH SLEEVE
€ 69.00
6
0914022005
ref: 6
NUT
€ 4.00
7
0916722005
ref: 7
WASHER,LOCK
€ 2.50
8
0821122403
ref: 8
WASHER
€ 4.00
9
2144140402
ref: 9
PLATE,CLUTCH DRIVE (MCA)
€ 20.50
10
2145145000
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
11
2146245103
ref: 11
DISC,CLUTCH PRESSURE
€ 146.50
12
0944019007
ref: 12
SPRING
€ 3.00
13
0110706168
ref: 13
BOLT, UPPER
€ 3.00
14
0916006020
ref: 14
WASHER
€ 2.00
15
2311114220
ref: 15
ROD,CLUTCH PUSH
€ 13.50
16
0611108003
ref: 16
BALL
€ 1.50
17
2312114300
ref: 17
PIECE,CLUTCH PUSH
€ 17.50
18
0926315003
ref: 18
BEARING(15X28X2)
€ 7.00
19
0916015015
ref: 19
WASHER
€ 4.00
20
0928512004
ref: 20
SEAL,OIL(12X19X5)
€ 9.00
21
2312214311
ref: 21
SHAFT,CLUTCH RELEASE C
€ 33.50
22
0926312014
ref: 22
BEARING(12X19X12)
€ 11.00
23
2327114200
ref: 23
ARM,CLUTCH RELEASE
€ 39.50
24
0110706208
ref: 24
BOLT
€ 2.00
