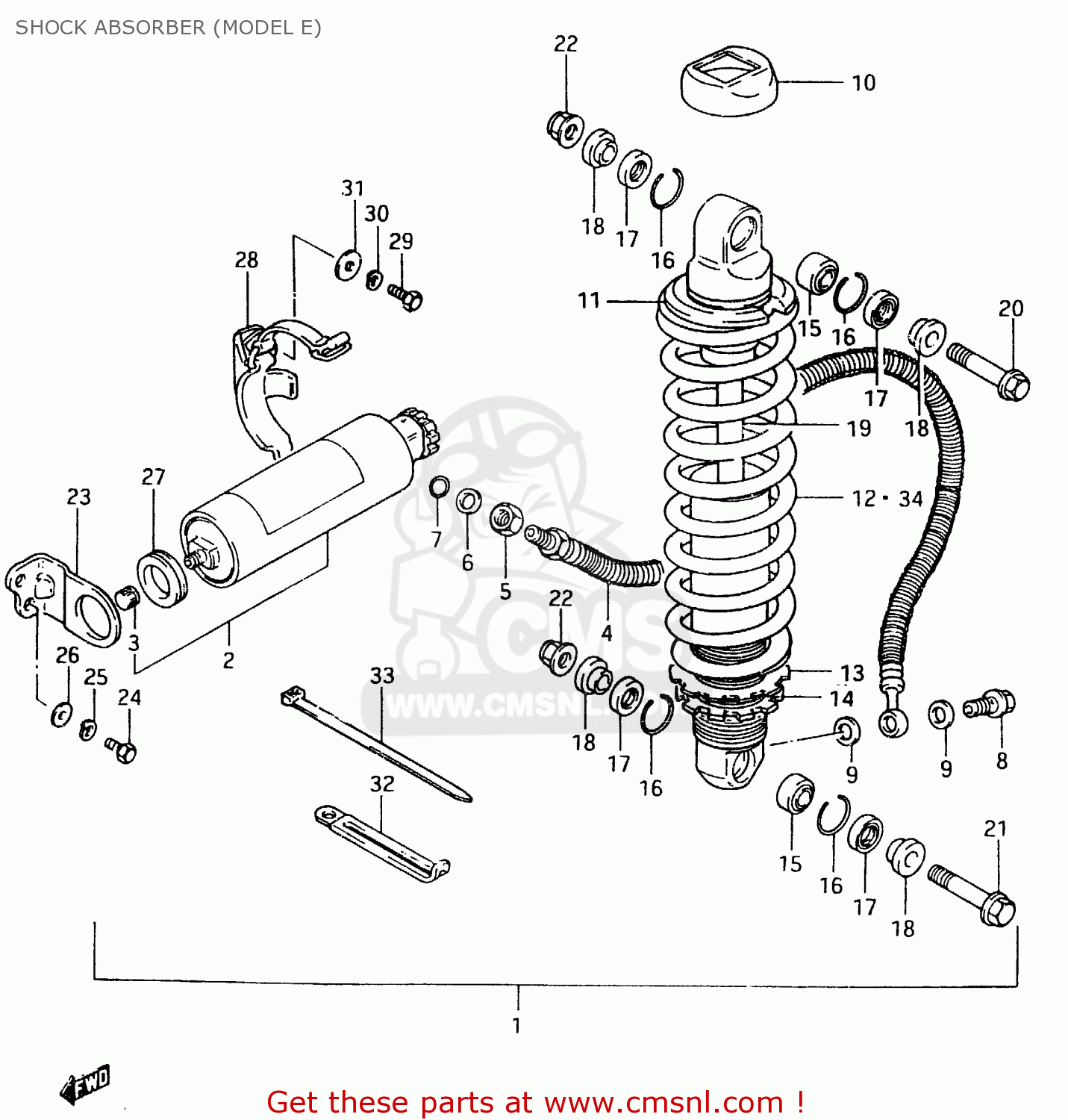

SHOCK ABSORBER (MODEL E)

ref

part #

description

quantity

1

6210014280
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 529.00

2

6227014280
ref: 2

RESERVE TANK,REAR SHOCK

€ 0.00

3

5129420400
ref: 3

CAP

€ 3.50

4

6228014270
ref: 4

HOSE,REAR SHOCK ABSORBER

€ 120.00

5

0831022128
ref: 5

NUT 12MM

€ 3.00

6

6228514100
ref: 6

WASHER,REAR SHOCK HOSE

€ 3.00

7

6215440200
ref: 7

O-RING,RESERVE TANK

€ 1.50

8

6228114140
ref: 8

BOLT,REAR SHOCK ABSORBER

€ 0.00

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

6217914330
ref: 10

CAP

€ 0.00

11

6219414331
ref: 11

GUIDE,REAR SHOCK ABSORBER SPRING

€ 8.50

12

6221114280
ref: 12

SPRING

€ 0.00

13

6219114600
ref: 13

GUIDE,SPRING

€ 14.00

14

6219414600
ref: 14

GUIDE,REAR SHOCK ABSORBER SPRING

€ 0.00

15

6217543400
ref: 15

BEARING,REAR SHOCK ABSORBER

€ 66.00

16

6227714200
ref: 16

RING

€ 1.50

17

6222643410
ref: 17

SEAL,DUST

€ 7.50

18

6268443401
ref: 18

SPACER

€ 7.00

19

6212014280
ref: 19

ROD,PISTON

€ 0.00

20

6231114500
ref: 20

BOLT,REAR SHOCK ABSORBER

€ 3.50

21

0910310027
ref: 21

BOLT(10X58)

€ 3.00

22

0831931108
ref: 22

NUT

€ 3.00

23

6241114200
ref: 23

BRACKET,RESERVOIR TANK

€ 5.00

24

0110706128
ref: 24

BOLT

€ 2.00

25

0832121068
ref: 25

LOCK WASHER

€ 2.50

26

0832221068
ref: 26

WASHER

€ 2.00

27

6242314211
ref: 27

CUSHION,RESERVOIR TANK

€ 2.50

28

6242014231
ref: 28

BRACKET,RESERVOIR TANK

€ 32.50

29

0110706168
ref: 29

BOLT, UPPER

€ 3.00

30

0832121068
ref: 30

LOCK WASHER

€ 2.50

31

0916006007
ref: 31

WASHER

€ 2.00

32

0940406415
ref: 32

CLAMP

€ 3.00

33

0940716401
ref: 33

CLAMP

€ 4.50

34

6221114285
ref: 34
OPT

SPRING

€ 0.00

34

6221114287
ref: 34
OPT

SPRING

€ 0.00

all assemblies
