FRAME - SEAT (MODEL E)
RM500 1984 (E)

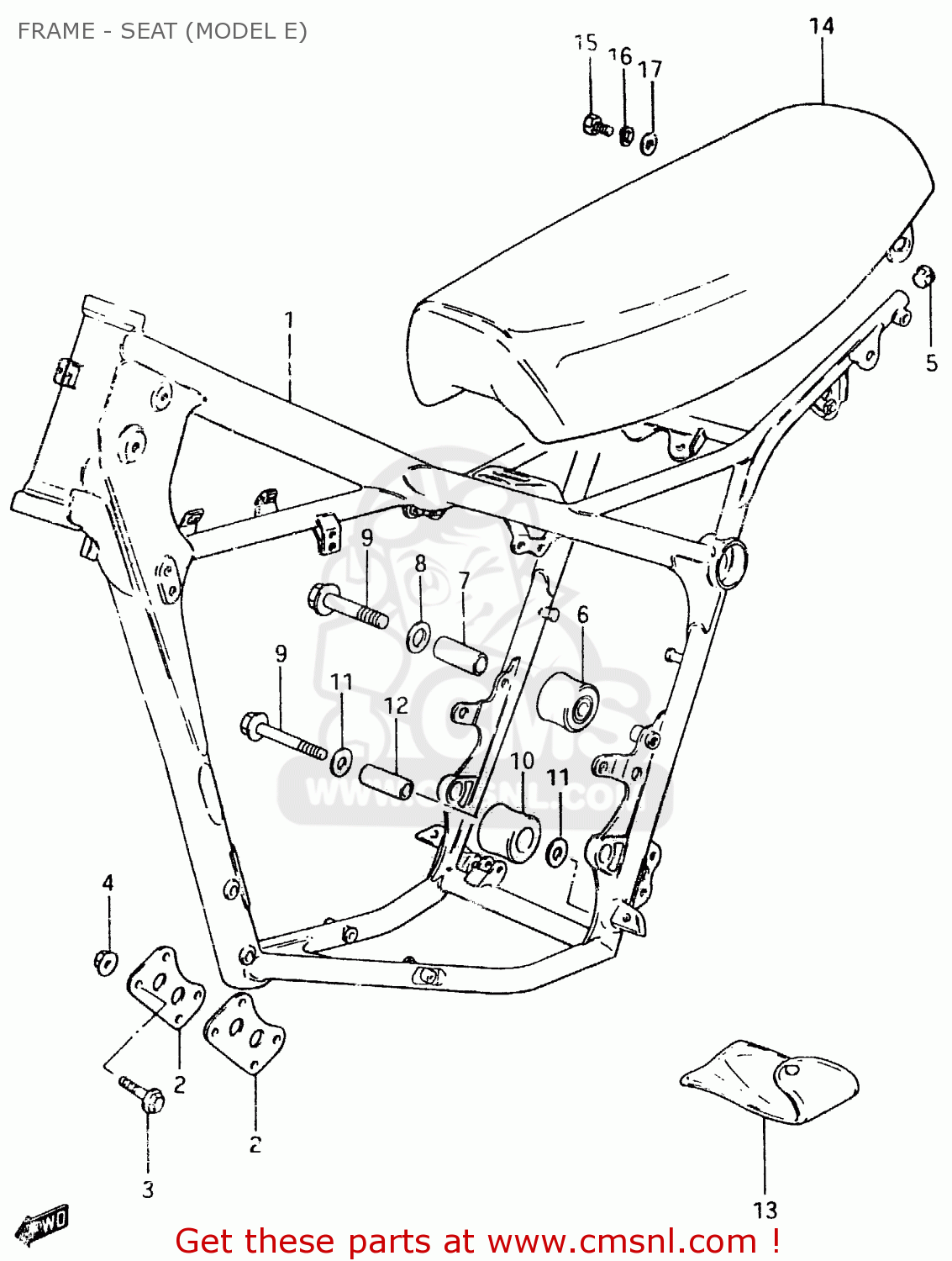

Frame - seat (model e) diagram RM500 1984 (E)
FRAME - SEAT (MODEL E) RM500 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
411001424019F
ref: 1
FRAME
€ 0.00
2
4199114201
ref: 2
PLATE,ENGINE MOUNTING
€ 21.00
3
0910308063
ref: 3
BOLT(8X75)
€ 79.50
4
0831931088
ref: 4
NUT
€ 2.50
5
0925014006
ref: 5
PLUG(OD:17)
€ 3.00
6
4391014500
ref: 6
ROLLER,CHAIN
€ 36.50
7
4391340400
ref: 7
SPACER,CHAIN LENGTH ROLLER
€ 8.00
8
0821108161
ref: 8
WASHER
€ 2.00
9
4391114200
ref: 9
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
10
0918008119
ref: 10
SPACER(8.6X12X25.5)
€ 6.50
11
0910308043
ref: 11
BOLT(8X45)
€ 4.50
12
0916008035
ref: 12
WASHER
€ 2.00
13
0980000233
ref: 13
TOOL SET
€ 0.00
14
451001414054G
ref: 14
SEAT ASSEMBLY
€ 0.00
15
0110708208
ref: 15
BOLT
€ 3.00
16
0832121088
ref: 16
LOCK WASHER
€ 2.00
17
0916008065
ref: 17
WASHER
€ 1.50
