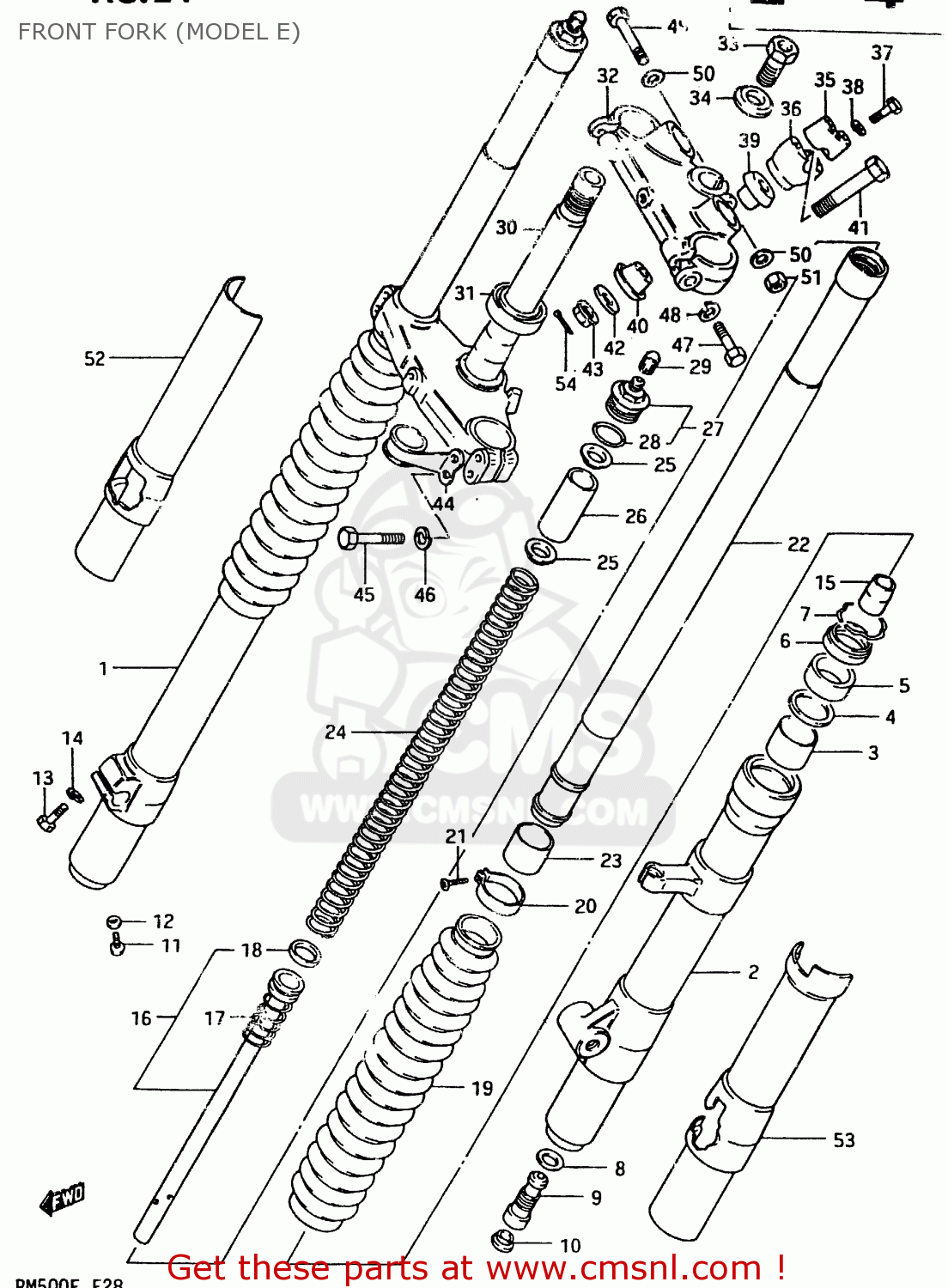

FRONT FORK (MODEL E)

ref

part #

description

quantity

0

511001428019F
ref: 0

DAMPER SET

€ 1,057.00

1

5113014500
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114014500
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5116714200
ref: 3

METAL,SLIDE

€ 13.50

4

5115814200
ref: 4

WASHER

€ 4.00

5

5115314330
ref: 5

SEAL,OIL

€ 11.00

6

5117314330
ref: 6

SEAL,DUST

€ 9.50

7

5115614200
ref: 7

RING,STOPPER

€ 4.50

8

5114814330
ref: 8

GASKET,FORK CYLINDER

€ 2.50

9

5177014500
ref: 9

VALVE,DF

€ 39.50

10

5118914500
ref: 10

CAP,FRONT FORK DF

€ 5.00

11

0211204068
ref: 11

SCREW 4X6

€ 2.00

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

0110708308
ref: 13

BOLT (8X30)

€ 2.50

14

0832131088
ref: 14

WASHER,LOCK,8.

€ 2.00

15

5119514330
ref: 15

PIECE,FRONT FORK OIL LOCK

€ 10.50

16

5114614280
ref: 16

CYLINDER,FRONT FORK

€ 0.00

17

5117714280
ref: 17

SPRING,REBOUND

€ 0.00

18

5119614280
ref: 18

RING,FRONT FORK PISTON

€ 0.00

19

515711450019F
ref: 19

BOOT,FRONT FORK COVER

€ 61.50

20

5157514500
ref: 20

BAND,BOOT,UPPER

€ 7.00

21

0211204108
ref: 21

SCREW 4X10

€ 2.00

22

5111014280
ref: 22

TUBE,FORK,INNER

€ 0.00

23

5112114200
ref: 23

PISTON

€ 14.00

24

5117114280
ref: 24

SPRING,FRONT FORK

€ 0.00

25

5117214280
ref: 25

GUIDE,FRONT FORK SPRING

€ 0.00

26

5117614280
ref: 26

SPACER,FRONT FORK SPRING

€ 0.00

27

5135114500
ref: 27

CAP,FORK INNER TUBE

€ 31.50

28

5111714200
ref: 28

O RING

€ 2.00

29

5129420400
ref: 29

CAP

€ 3.50

30

5141014500
ref: 30

STEM,STEERING

€ 262.50

31

0926530005
ref: 31

BEARING

€ 49.50

32

5131114600
ref: 32

HEAD,STEERING STEM

€ 0.00

33

5135141320
ref: 33

BOLT

€ 8.50

34

5135641310
ref: 34

WASHER

€ 6.00

35

5621127100
ref: 35

HOLDER,HANDLEBAR

€ 12.50

36

5622123450
ref: 36

HOLDER,HANDLE LWR

€ 22.50

37

0110708358
ref: 37

BOLT

€ 3.50

38

0832131088
ref: 38

WASHER,LOCK,8.

€ 2.00

39

5624114200
ref: 39

DAMPER,UPR

€ 32.00

40

5624214200
ref: 40

DAMPER,LWR

€ 21.50

41

5132114200
ref: 41

BOLT,HANDLE HOLDER

€ 6.50

42

5135640400
ref: 42

WASHER,HANDLEBAR HOLDER

€ 2.00

43

0831931108
ref: 43

NUT

€ 3.00

44

5862114500
ref: 44

GUIDE,CABLE

€ 8.00

45

0110708408
ref: 45

BOLT 8X40

€ 3.00

46

0832131088
ref: 46

WASHER,LOCK,8.

€ 2.00

47

0110710458
ref: 47

BOLT

€ 2.00

48

0832131108
ref: 48

LOCK WASHER

€ 2.00

49

0110708508
ref: 49

BOLT 8X50

€ 3.00

50

0832211088
ref: 50

WASHER

€ 2.00

51

0831012088
ref: 51

NUT

€ 2.00

52

5120114500163
ref: 52

PROTECTOR,RIGHT

€ 0.00

53

5120214500163
ref: 53

PROTECTOR

€ 25.50

54

0411120208
ref: 54

PIN 20X20

€ 1.50
