RIGHT HANDLE SWITCH
RM500 1984 (E)

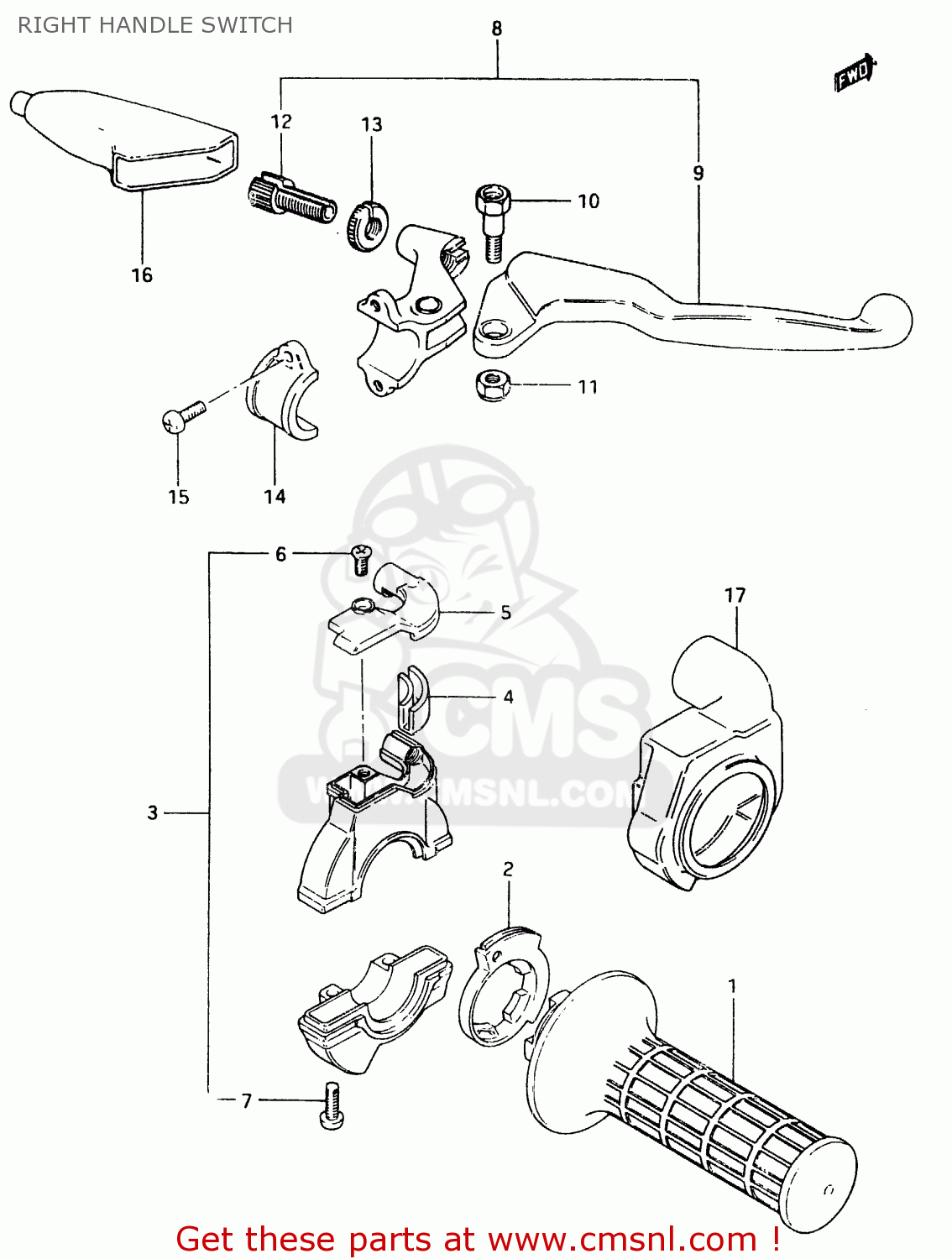

Right handle switch diagram RM500 1984 (E)
RIGHT HANDLE SWITCH RM500 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
5711014300
ref: 1
GRIP,THROTTLE
€ 25.00
2
5711414301
ref: 2
ROTOR,THROTTLE GRIP
€ 6.50
3
5710014301
ref: 3
MODEL D
CASE ASSEMBLY,THROTTLE
€ 57.50
3
5710014302
ref: 3
MODEL E
CASE ASSY,THROTTLE
€ 57.50
4
5712214301
ref: 4
GUIDE PIECE,THROTTLE
€ 4.00
5
5712914301
ref: 5
MODEL D
COVER,THROTTLE CASE
€ 8.50
5
5712914302
ref: 5
MODEL E
COVER,THROTTLE CASE
€ 8.50
6
0213204068
ref: 6
SCREW
€ 2.50
7
0211205168
ref: 7
SCREW
€ 2.50
8
5730014310
ref: 8
LEVER ASSEMBLY,BRAKE
€ 30.50
9
5742014300
ref: 9
LEVER,BRAKE
€ 23.00
10
5743114300
ref: 10
BOLT,LEVER
€ 6.50
11
0831921068
ref: 11
NUT 6MM
€ 2.00
12
5744114200
ref: 12
ADJUSTER,CABLE
€ 8.50
13
5744214200
ref: 13
NUT,CABLE ADJUSTER
€ 6.00
14
5751214300
ref: 14
BRACKET,CLUTCH LEVER HOLDER
€ 32.00
15
0211205168
ref: 15
SCREW
€ 2.50
16
5734140001
ref: 16
COVER,CLUTCH LEVER
€ 7.50
17
5712914501
ref: 17
MODEL E
COVER,THROTTLE CASE
€ 7.50
