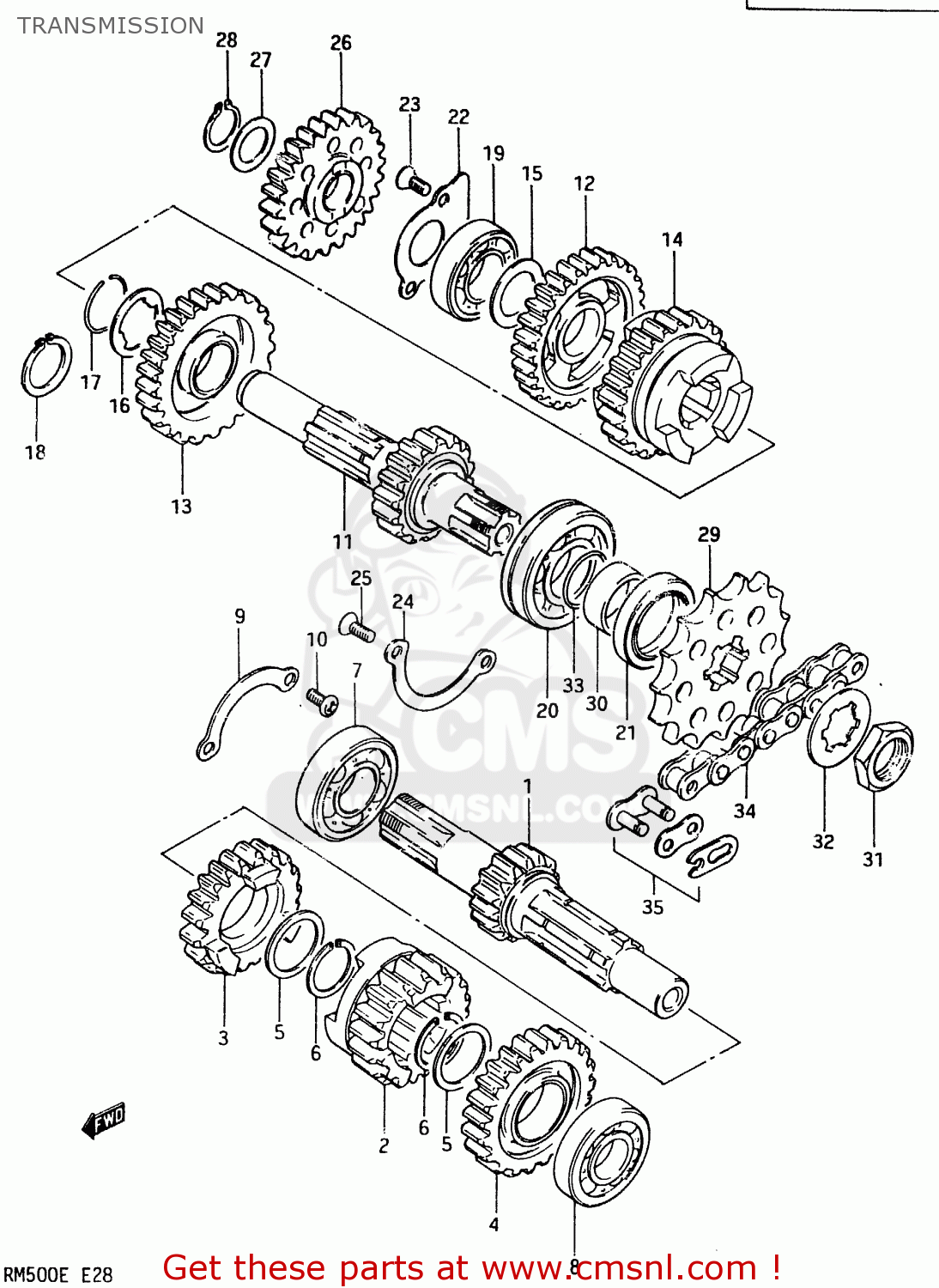

TRANSMISSION

ref

part #

description

quantity

1

2412014230
ref: 1

SHAFT,COUNTER

€ 152.50

2

2422114230
ref: 2

GEAR,SECOND DRIVE

€ 93.00

3

2423014230
ref: 3

GEAR,THIRD DRIVE

€ 54.50

4

2424114230
ref: 4

GEAR,FOURTH DRIVE

€ 54.50

5

0821125301
ref: 5

WASHER

€ 3.00

6

0938025010
ref: 6

CIRCLIP

€ 3.00

7

0926222012
ref: 7

BEARING

€ 63.50

8

0811360040
ref: 8

BEARING, LH

€ 20.50

9

2474114210
ref: 9

RETAINER,BEARING

€ 0.00

10

0211206128
ref: 10

SCREW 6X12

€ 2.00

11

2413014230
ref: 11
MODEL D

SHAFT,DRIVE

€ 165.00

11

2413014231
ref: 11
MODEL E

SHAFT,DRIVE

€ 165.00

12

2431114230
ref: 12

GEAR,FIRST DRIVEN

€ 65.50

13

2432014231
ref: 13

GEAR,SECOND DRIVEN

€ 54.50

14

2433114231
ref: 14

GEAR,THIRD DRIVEN

€ 57.00

15

0821120363
ref: 15

WASHER

€ 3.50

16

0916728004
ref: 16

WASHER

€ 0.00

17

0938028004
ref: 17
MODEL D

CIRCLIP

€ 1.50

18

0833111289
ref: 18
MODEL E

CIRCLIP

€ 2.50

19

0926420002
ref: 19

BEARING

€ 25.50

20

0926228004
ref: 20

BEARING(28X58X16)

€ 33.00

21

0928335023
ref: 21

SEAL,OIL(35X45X6)

€ 9.50

22

2475114211
ref: 22
MODEL D

RETAINER,DRIVESHAFT

€ 0.00

22

2475114212
ref: 22
MODEL E

RETAINER,DRIVESHAFT

€ 0.00

23

0212206128
ref: 23

SCREW

€ 3.00

24

2475214220
ref: 24

PLATE,DRIVESHAFT BEARING

€ 5.50

25

0212206128
ref: 25

SCREW

€ 3.00

26

2626014201
ref: 26

GEAR,KICK STARTER IDLE

€ 41.00

27

0821120281
ref: 27

WASHER,THRUST

€ 2.50

28

0833111209
ref: 28

CIRCLIP

€ 2.50

29

2751114220
ref: 29

SPROCKET,ENGINE (NT:14)

€ 24.50

29

2751114230
ref: 29
OPT

SPROCKET,ENGINE(NT:13)

€ 19.00

29

2751114240
ref: 29
OPT

SPROCKET,ENGINE (NT:15)

€ 21.00

30

0918028003
ref: 30

SPACER(28X35X11.4)

€ 11.50

31

0914028001
ref: 31

NUT

€ 8.00

32

0916728003
ref: 32

WASHER,LOCK

€ 6.50

33

0928028004
ref: 33

O RING(D:1.5,ID:27.7)

€ 7.50

34

2760014310
ref: 34

CHAIN ASSEMBLY,DRIVE

€ 80.00

35

2762014270
ref: 35

JOINT ASSEMBLY,CHAIN

€ 8.50

35

2762014261
ref: 35

JOINT ASSEMBLY,CHAIN

€ 0.00
