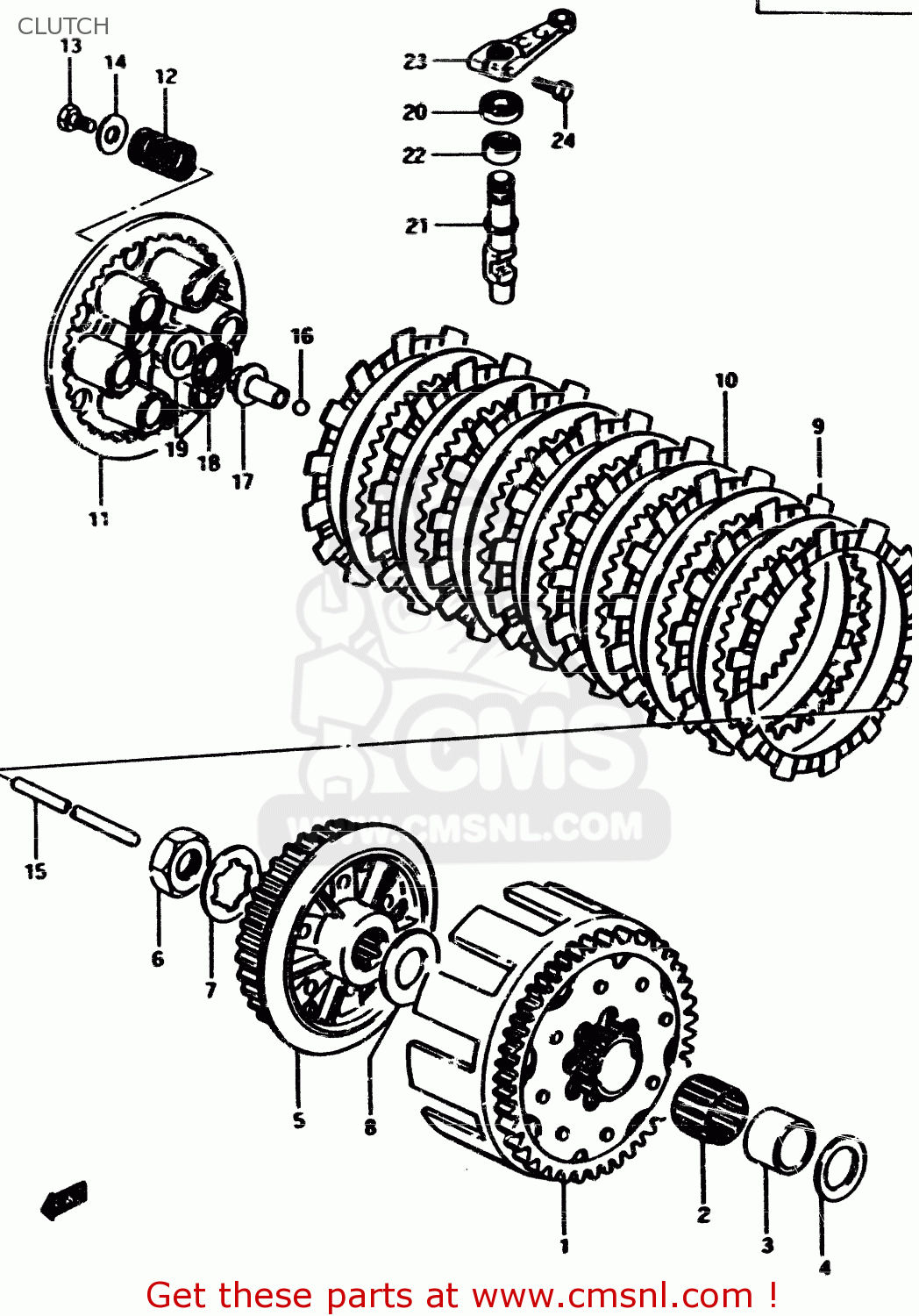

CLUTCH

ref

part #

description

quantity

1

2120014211
ref: 1
NT:18/62

GEAR ASSEMBLY,PRIMARY DRIVE

€ 190.00

2

0926328002
ref: 2

BEARING(28X33X27)

€ 21.00

3

0918022021
ref: 3

SPACER(22X28X27)

€ 16.00

4

0821122403
ref: 4

WASHER

€ 4.00

5

2141114212
ref: 5

HUB,CLUTCH SLEEVE

€ 69.00

6

0914022005
ref: 6

NUT

€ 4.00

7

0916722005
ref: 7

WASHER,LOCK

€ 2.50

8

0821122403
ref: 8

WASHER

€ 4.00

9

2144140402
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 20.50

10

2145145000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2146245103
ref: 11

DISC,CLUTCH PRESSURE

€ 146.50

12

0944019007
ref: 12

SPRING

€ 3.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14

WASHER

€ 2.00

15

2311114220
ref: 15

ROD,CLUTCH PUSH

€ 13.50

16

0611108003
ref: 16

BALL

€ 1.50

17

2312114300
ref: 17

PIECE,CLUTCH PUSH

€ 17.50

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0916015015
ref: 19

WASHER

€ 4.00

20

0928512004
ref: 20

SEAL,OIL(12X19X5)

€ 9.00

21

2312214311
ref: 21

SHAFT,CLUTCH RELEASE C

€ 33.50

22

0926312014
ref: 22

BEARING(12X19X12)

€ 11.00

23

2327114200
ref: 23

ARM,CLUTCH RELEASE

€ 39.50

24

0110706208
ref: 24

BOLT

€ 2.00

all assemblies
