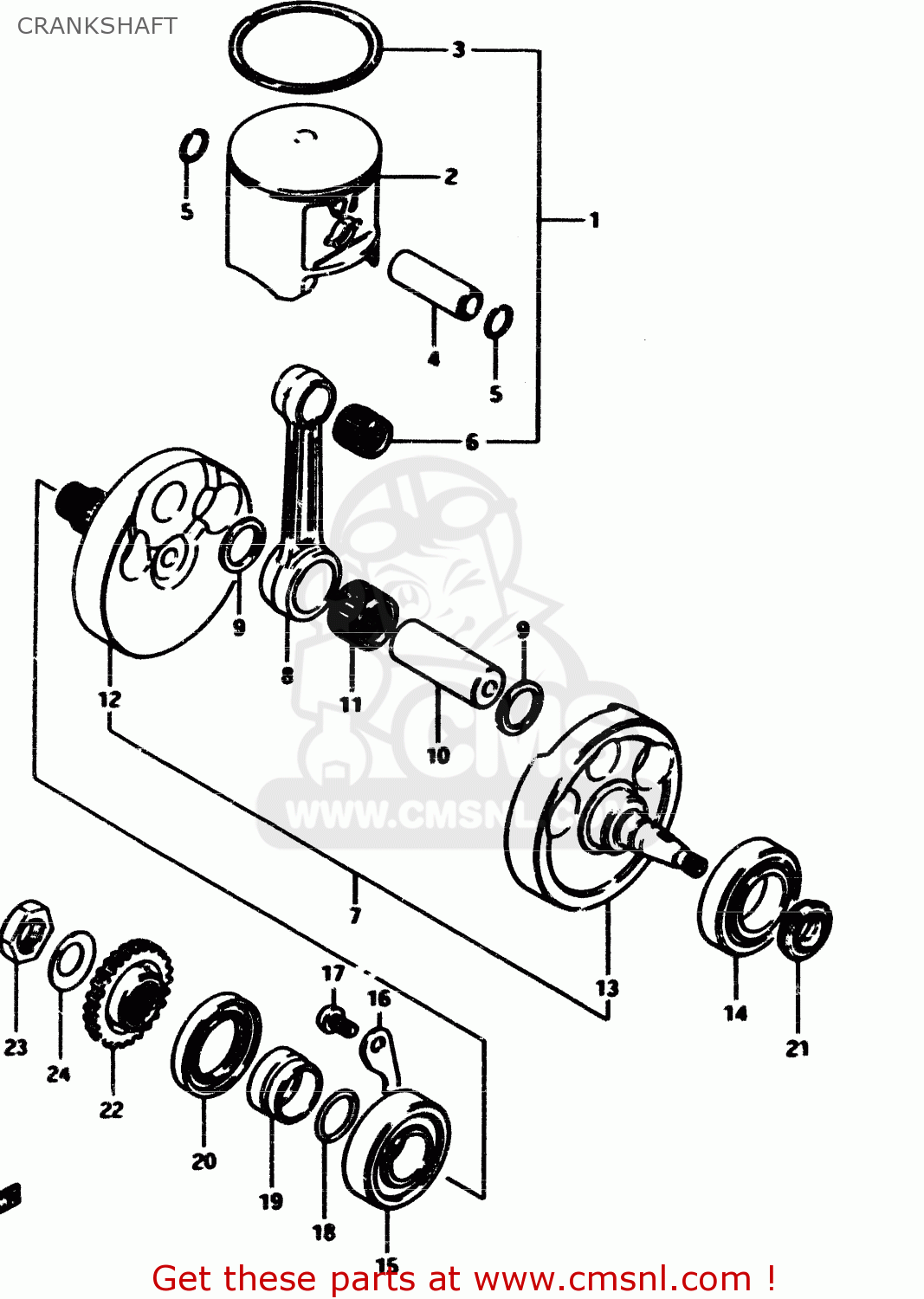

CRANKSHAFT

ref

part #

description

quantity

1-1

1210114870
ref: 1-1
OPT

PISTON SET (RM500F)

€ 77.50

1-2

1210114870025
ref: 1-2
OPT

PISTON SET (OS:0.25)

€ 77.50

1-3

1210114870050
ref: 1-3
OPT

PISTON SET (OS:0.5)

€ 77.50

2-1

1211014221
ref: 2-1

PISTON (88.5MM)

€ 528.50

2-2

1211014221025
ref: 2-2
OPT

PISTON

€ 71.00

2-3

1211014221050
ref: 2-3
OPT

PISTON

€ 529.50

3-1

1214114240
ref: 3-1

RING,PISTON

€ 34.50

3-2

1214114240025
ref: 3-2
OPT

RING,PISTON (OS:0.25)

€ 16.50

3-3

1214114240050
ref: 3-3
OPT

RING,PISTON (OS:0.5)

€ 18.50

4

1215115002
ref: 4

PIN,PISTON (18MM)

€ 14.50

5

0938118002A
ref: 5

CIRCLIP,PISTON PIN

€ 1.50

6

0926318016
ref: 6

BEARING(18X23X22)

€ 14.00

7

1220014230
ref: 7

CRANKSHAFT ASSEMBLY

€ 713.00

8

1216114220
ref: 8

ROD,CONNECTING

€ 74.50

9

0916026004
ref: 9

WASHER(26X32X1.5)

€ 4.50

10

1221114220
ref: 10

PIN,CRANK

€ 23.50

11

0926326014
ref: 11

ROLLER BEARING (26X33X2

€ 26.00

12

1222114230
ref: 12

CRANKSHAFT,RIGHT

€ 195.50

13

1226114230
ref: 13

CRANKSHAFT,LEFT

€ 138.50

14

0926235026
ref: 14

BEARING

€ 38.00

15

0926230070
ref: 15

BEARING

€ 47.50

16

1254114210
ref: 16

PLATE,CRANKSHAFT OIL S

€ 0.00

17

0211206108
ref: 17

SCREW

€ 1.50

18

0928028005
ref: 18

O RING(D:2.4,ID:27.7)

€ 2.00

19

1235914220
ref: 19

SPACER,PRIMARY DRIVE GEAR

€ 20.00

20

0928937001
ref: 20

SEAL,OIL(37X62X9)

€ 26.50

21

0928320034
ref: 21

SEAL,OIL(19.6X37X8)

€ 6.00

22

2111114210
ref: 22

GEAR,PRIMARY DRIVE

€ 35.00

23

0914020008
ref: 23

NUT (20MM)

€ 4.00

24

0916420003
ref: 24

WASHER

€ 2.50
