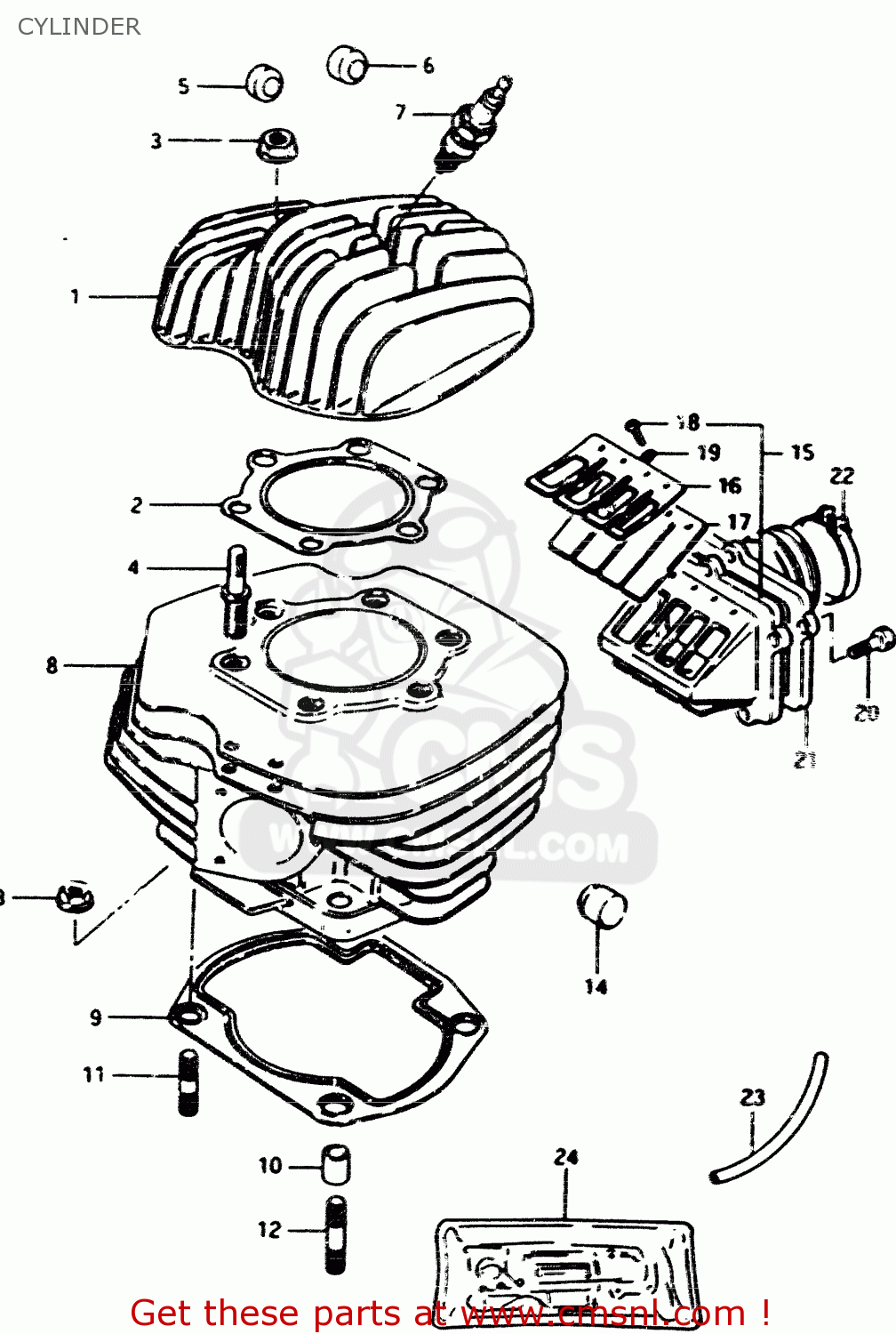

CYLINDER

ref

part #

description

quantity

1

1111114230
ref: 1

CYLINDER HEAD

€ 0.00

2

1114114220
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 20.50

3

0831616085
ref: 3

NUT 8MM

€ 3.00

4

0910808108
ref: 4

STUD

€ 4.00

5

1125228000
ref: 5
OPT

PAD,CYLINDER

€ 2.00

6

1125238001
ref: 6
OPT

PAD,CYLINDER HEAD

€ 3.50

7-1

0948200208
ref: 7-1

PLUG,SPARK(NGK B-8EN)

€ 16.00

7-2

0948200114
ref: 7-2
E4

SPARK PLUG (NGK,BR8EV)

€ 81.50

8

1121014240
ref: 8

CYLINDER

€ 0.00

9

1124114231
ref: 9

GASKET,CYLINDER (MCA)

€ 17.00

10

0920613001
ref: 10

PIN

€ 2.50

11

0910810065
ref: 11

STUD

€ 0.00

12

0910810066
ref: 12

BOLT,STUD L:60

€ 2.50

13

0831616105
ref: 13

NUT

€ 2.00

14

1115116400
ref: 14
OPT

PAD,CYLINDER HEAD

€ 8.00

15

1315014200
ref: 15

VALVE ASSEMBLY,REED

€ 97.00

16

1315214200
ref: 16

STOPPER,REED VALVE

€ 97.00

17

1315314200
ref: 17

VALVE,REED

€ 15.50

18

0211203088
ref: 18

SCREW

€ 1.50

19

0832121038
ref: 19

LOCK WASHER

€ 1.50

20

0110706205
ref: 20

BOLT

€ 2.00

21

1311014210
ref: 21

PIPE,INTAKE

€ 39.00

22

0940256208
ref: 22

CLAMP

€ 3.50

23-1

0934304046
ref: 23-1
L:440->300

HOSE

€ 3.00

23-2

0934304046
ref: 23-2
L:440->400

HOSE

€ 3.00

23-3

0934304046
ref: 23-3
L:440->330

HOSE

€ 3.00

24

1140014884
ref: 24
OPT

GASKET

€ 31.50
