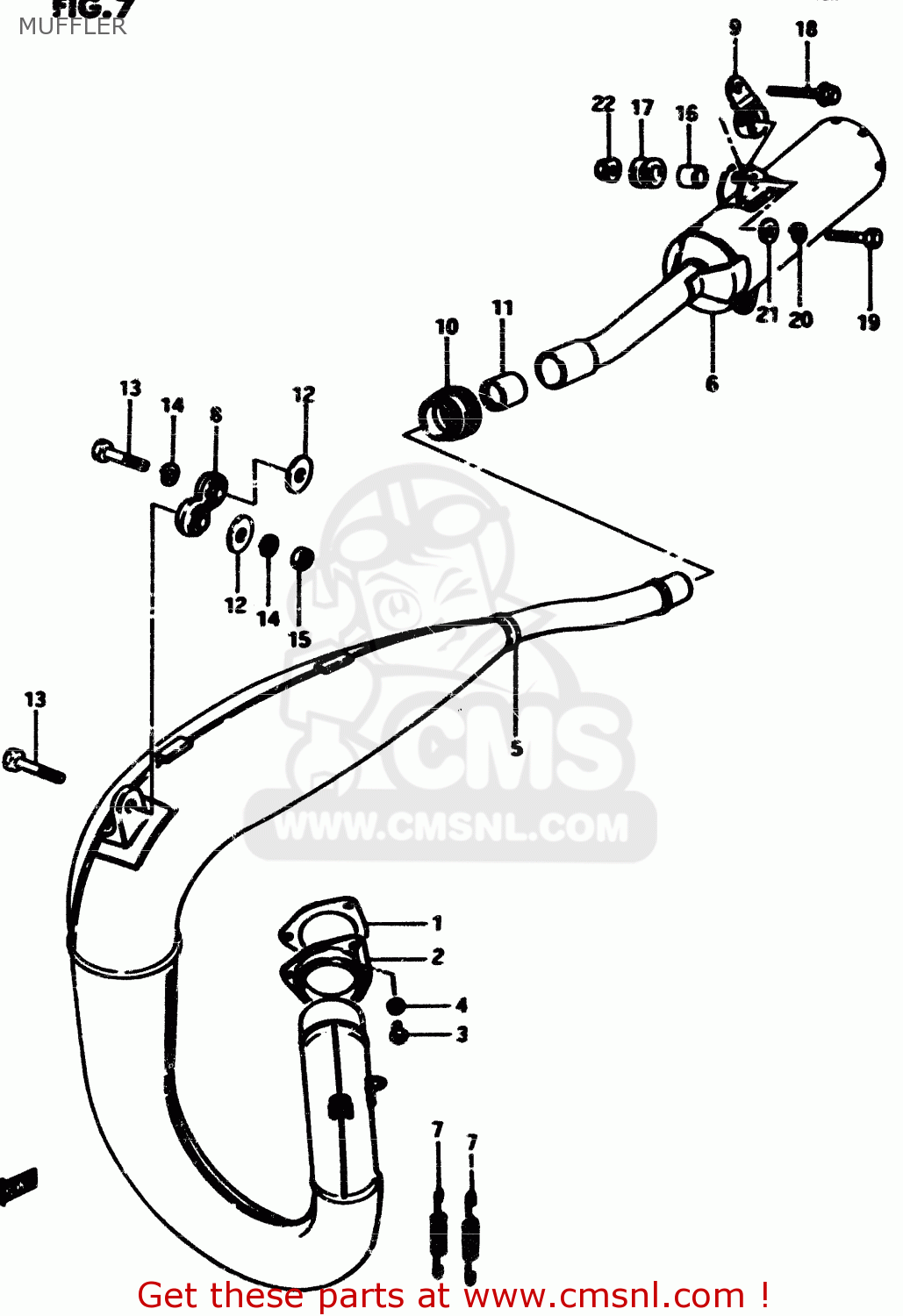

MUFFLER

ref

part #

description

quantity

1

1418141201
ref: 1

GASKET,EXHAUST PIPE (MCA)

€ 6.00

2

1417040403
ref: 2

FLANGE,EXHAUST PIPE

€ 27.50

3

0211206168
ref: 3

SCREW

€ 2.50

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5

1431014274
ref: 5

MUFFLER, 1ST

€ 316.00

6

1433014283
ref: 6

MUFFLER, 2ND

€ 85.50

7

0944312024
ref: 7

SPRING

€ 5.50

8

1477040000
ref: 8

DAMPER,MUFFLER

€ 139.00

9

1477014201
ref: 9

DAMPER,MUFFLER SUPPORT

€ 10.00

10

1477114200
ref: 10

CONNECTOR,SECOND MUFFLER

€ 17.50

11

1477314201
ref: 11

GASKET,SECOND MUFFLER (NA) (NAS)

€ 12.00

12

0916008035
ref: 12

WASHER

€ 2.00

13

0910008176
ref: 13

BOLT(8X32)

€ 2.00

14

0832121088
ref: 14

LOCK WASHER

€ 2.00

15

0831022088
ref: 15

NUT 8MM

€ 2.00

16

0918008102
ref: 16

SPACER (8.6X12X17.5)

€ 3.00

17

0932012026
ref: 17

CUSHION

€ 8.00

18

0910308065
ref: 18

BOLT(8X25)

€ 3.50

19

0110708358
ref: 19

BOLT

€ 3.50

20

0832121088
ref: 20

LOCK WASHER

€ 2.00

21

0832211088
ref: 21

WASHER

€ 2.00

22

0831626088
ref: 22

NUT

€ 3.00

all assemblies
