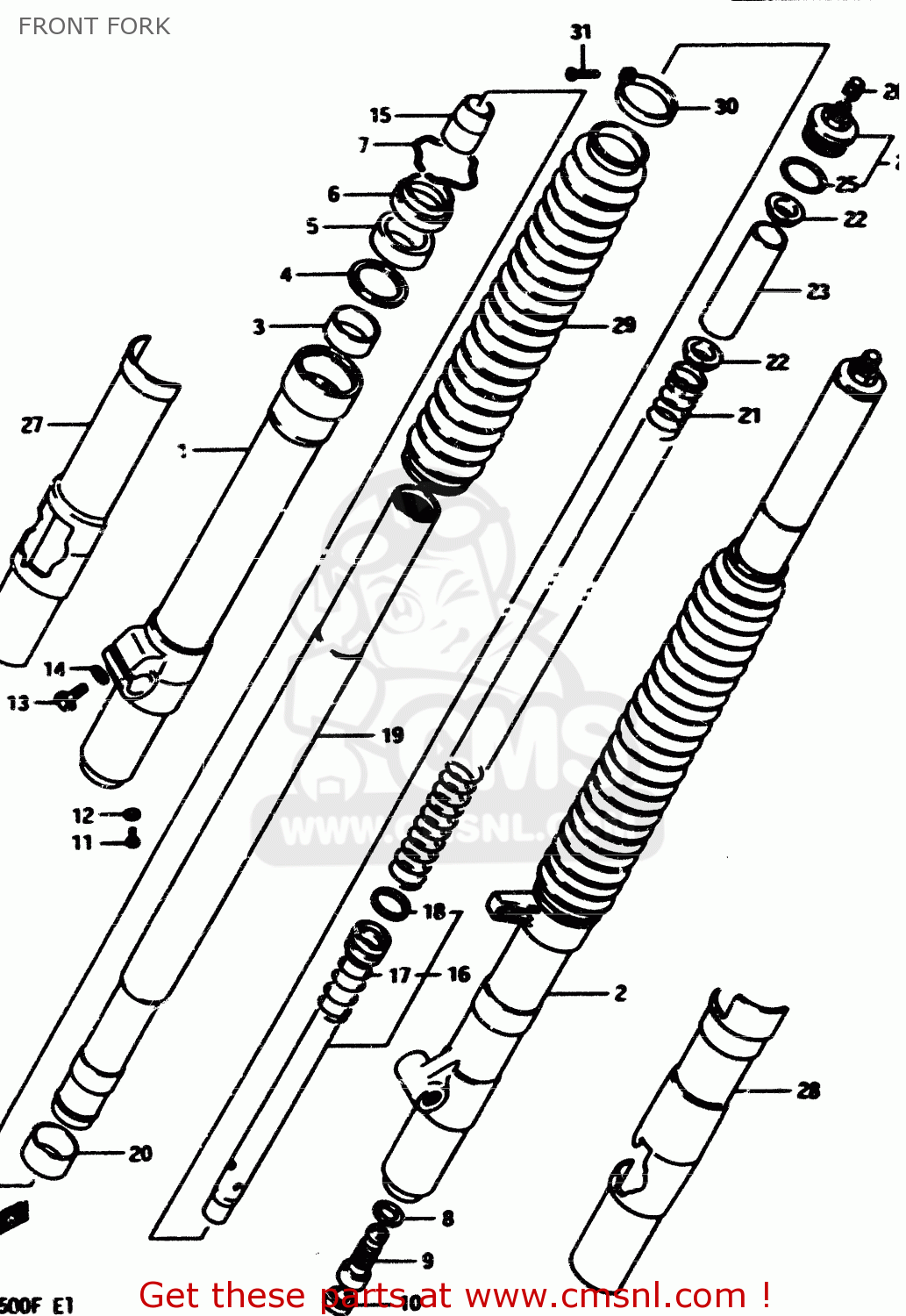

FRONT FORK

ref

part #

description

quantity

0

5110314290
ref: 0

DAMPER ASSY, RH

€ 0.00

0

5110414290
ref: 0

DAMPER ASSY, LH

€ 0.00

1

5113014500
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114014520
ref: 2

TUBE,OUTER,LEFT

€ 476.50

3

5116714200
ref: 3

METAL,SLIDE

€ 13.50

4

5115814200
ref: 4

WASHER

€ 4.00

5

5115314330
ref: 5

SEAL,OIL

€ 11.00

6

5117314330
ref: 6

SEAL,DUST

€ 9.50

7

5115614200
ref: 7

RING,STOPPER

€ 4.50

8

5114814330
ref: 8

GASKET,FORK CYLINDER

€ 2.50

9

5177014620
ref: 9

VALVE,DF

€ 97.50

10

5118914500
ref: 10

CAP,FRONT FORK DF

€ 5.00

11

0211204068
ref: 11

SCREW 4X6

€ 2.00

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

0110708308
ref: 13

BOLT (8X30)

€ 2.50

14

0832131088
ref: 14

WASHER,LOCK,8.

€ 2.00

15

5119514330
ref: 15

PIECE,FRONT FORK OIL LOCK

€ 10.50

16

5114614290
ref: 16

CYLINDER

€ 0.00

17

5117714280
ref: 17

SPRING,REBOUND

€ 0.00

18

5119614280
ref: 18

RING,FRONT FORK PISTON

€ 0.00

19

5111014280
ref: 19

TUBE,FORK,INNER

€ 0.00

20

5112114200
ref: 20

PISTON

€ 14.00

21

5117114280
ref: 21

SPRING,FRONT FORK

€ 0.00

22

5117214280
ref: 22

GUIDE,FRONT FORK SPRING

€ 0.00

23

5117614280
ref: 23

SPACER,FRONT FORK SPRING

€ 0.00

24

5135114500
ref: 24

CAP,FORK INNER TUBE

€ 31.50

25

5111714260
ref: 25

O RING

€ 0.00

26

5129420400
ref: 26

CAP

€ 3.50

27

5120114500163
ref: 27

PROTECTOR,RIGHT

€ 0.00

28

5120214501163
ref: 28

PROTECTOR,LEFT

€ 25.50

29

515711450019F
ref: 29

BOOT,FRONT FORK COVER

€ 61.50

30

5157514520
ref: 30

BAND,BOOT,UPPER

€ 7.00

31

0211204108
ref: 31

SCREW 4X10

€ 2.00

all assemblies
