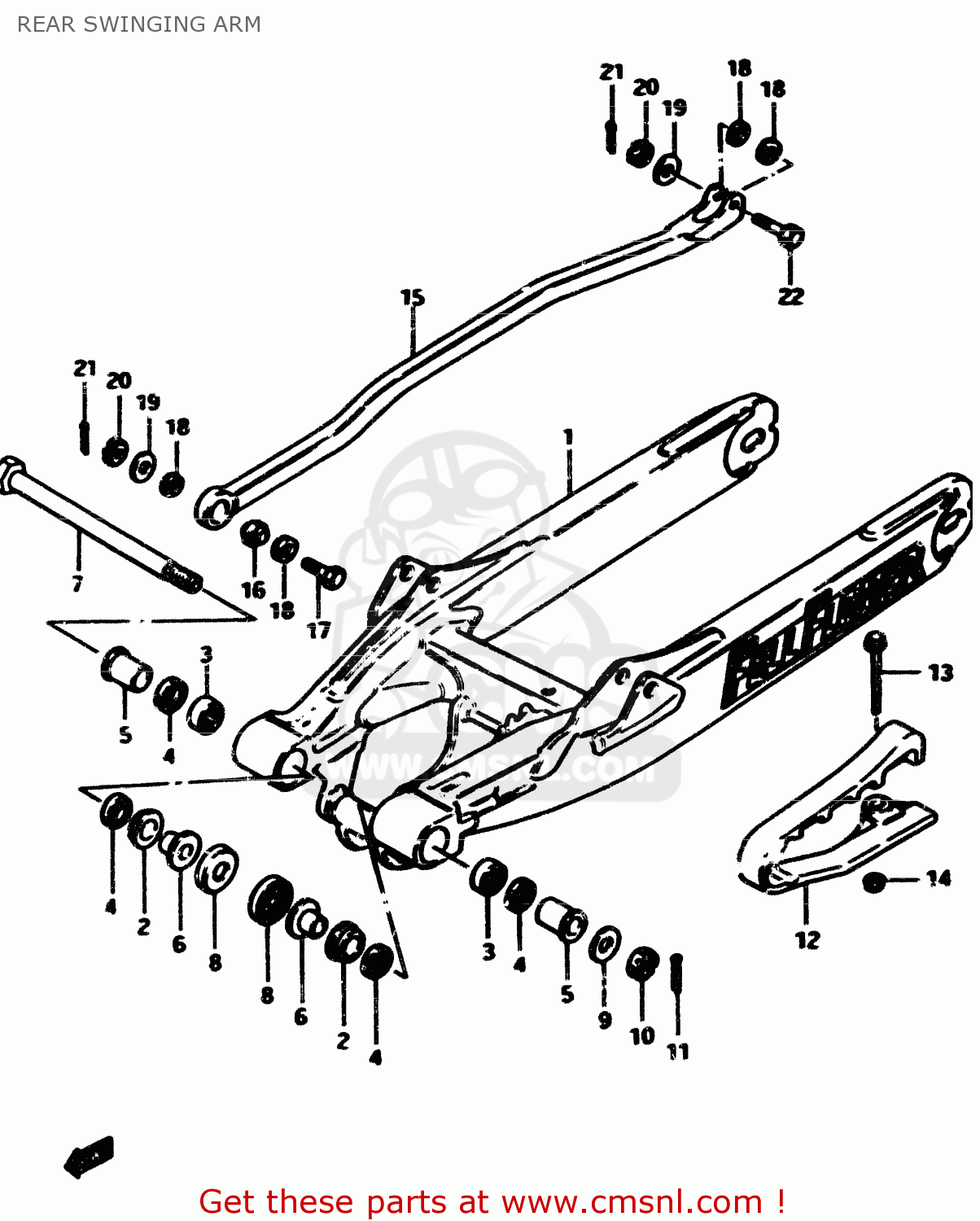

REAR SWINGING ARM

ref

part #

description

quantity

1

6100014240
ref: 1

SWING ARM ASSEMBLY,REAR

€ 0.00

2

6126140402
ref: 2

BUSHING,REAR SWING ARM PIVOT

€ 26.00

3

0926320041
ref: 3

BEARING(20X27X20)

€ 15.00

4

0928520005
ref: 4

OIL SEAL

€ 5.00

5

6125114100
ref: 5

SPACER,RR SWGARM PIVOT

€ 16.00

6

6125214100
ref: 6

SPACER,RR SWGARM PIVOT INNER

€ 12.50

7

6121114102
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 47.50

8

6126240400
ref: 8

COVER,RR SWGARM DUST SEAL

€ 4.00

9

0916014009
ref: 9

WASHER(14.5X29X2.3)

€ 3.50

10

0831441146
ref: 10

NUT

€ 3.00

11

0411130308
ref: 11

COTTER PIN

€ 1.50

12

6127314240
ref: 12

BUFFER,CHAIN TOUCH DEFLECTOR

€ 22.00

13

0151706658
ref: 13

BOLT 6X65

€ 3.00

14

0831931066
ref: 14

NUT

€ 2.50

15

6430014850
ref: 15

LINK,REAR TORQUE

€ 109.50

16

6435240411
ref: 16

SPHERICAL BEARING,TORQUE

€ 69.50

17

0910108003
ref: 17

BOLT 8X28

€ 2.00

18

6433940410
ref: 18

6433940410

19

0832211088
ref: 19

WASHER

€ 2.00

20

0831441088
ref: 20

NUT 8MM

€ 2.50

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

0910108014
ref: 22

BOLT 8X29.5

€ 1.50
