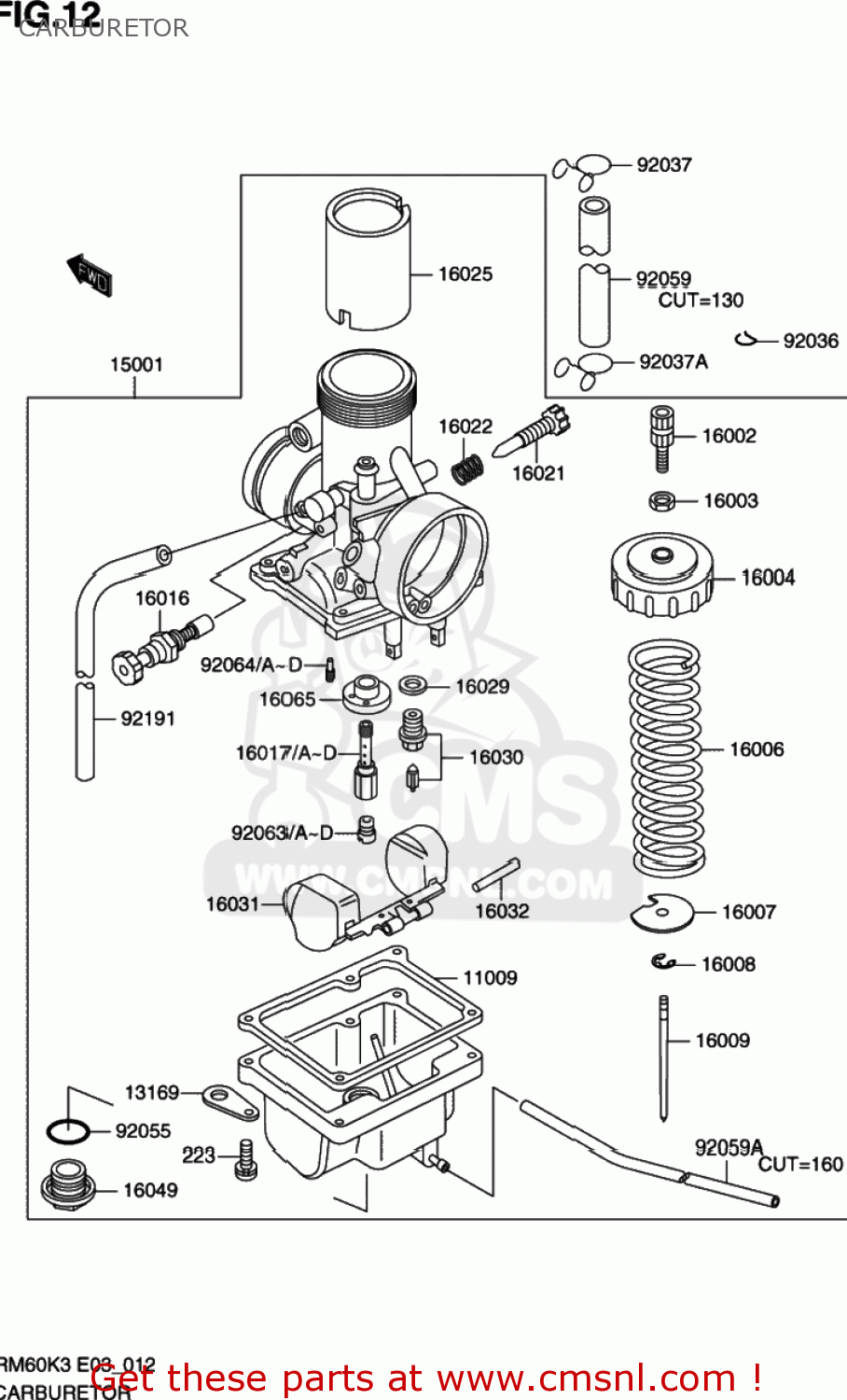

CARBURETOR

ref

part #

description

quantity

223

KK223B0416
ref: 223
KK223-D0416

SCHROEF

€ 1.50

11009

K110091147
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

13169

K131691951
ref: 13169

PLATE,TUBE

€ 0.00

15001

K150011384
ref: 15001

CARBURETOR-ASSY

€ 0.00

16002

KK16002011
ref: 16002

ADJUSTER-CABLE

€ 8.50

16003

KK16003006
ref: 16003

NUT,ADJUST LOCK

€ 4.00

16004

KK16004025
ref: 16004

CAP-CHAMBER

€ 16.00

16006

KK16006023
ref: 16006

SPRING,THROTTLE VALVE

€ 7.00

16007

KK16007023
ref: 16007

SEAT-SPRING,THROTTLE VALVE

€ 5.50

16008

KK16008010
ref: 16008

CLAMP,E-TYPE

€ 0.00

16009

K160091220
ref: 16009

NEEDLE-JET,5I14

€ 0.00

16016

K160161052
ref: 16016
K1601-60008

PLUNGER,STARTE

€ 26.50

16017

K160171215
ref: 16017

JET-NEEDLE,N-8

€ 0.00

16017A

K160171216
ref: 16017A

JET-NEEDLE,O-0

€ 0.00

16017B

K160171217
ref: 16017B

JET-NEEDLE,O-2

€ 0.00

16017C

K160171259
ref: 16017C

JET-NEEDLE,N-6

€ 0.00

16017D

K160171268
ref: 16017D

JET-NEEDLE,N-4

€ 0.00

16021

K160211108
ref: 16021

SCREW-THROTTLE STOP

€ 0.00

16022

KK16022005
ref: 16022

SPRING,THROTTLE STOP SCREW

€ 0.00

16025

K160251107
ref: 16025

VALVE-THROTTLE,CA2.0

€ 0.00

16029

KK16029004
ref: 16029

GASKET,FLOAT VALVE SEAT (NAS)

€ 2.50

16030

KK16030005
ref: 16030

VALVE-FLOAT,2.5

€ 0.00

16031

K160311005
ref: 16031

FLOAT

€ 35.00

16032

KK16032008
ref: 16032

PIN,FLOAT

€ 3.50

16049

K160491001
ref: 16049

COVER MAIN JET

€ 15.50

16065

K160651020
ref: 16065

HOLDER,JET NEEDLE

€ 11.50

92036

KK92036018
ref: 92036

RING-SNAP

€ 3.50

92037

KK92037147
ref: 92037

CLAMP,TUBE

€ 8.00

92037A

K920371712
ref: 92037A

CLAMP

€ 3.00

92055

K920551061
ref: 92055

RING-O,MAIN JET COVER

€ 5.00

92059

K920591596
ref: 92059

TUBE,5.3X10.5X350

€ 0.00

92059A

K920591755
ref: 92059A

TUBE,3X5X300

€ 0.00

92063

KK92063020
ref: 92063

JET-MAIN,#180

€ 7.50

92063A

KK92063021
ref: 92063A

JET-MAIN,#190

€ 7.50

92063B

KK92063022
ref: 92063B

JET-MAIN,#200

€ 8.50

92063C

KK92063023
ref: 92063C

JET-MAIN,#210

€ 8.50

92063D

KK92063024
ref: 92063D

JET-MAIN,#220

€ 0.00

92064

K920641023
ref: 92064

JET-PILOT,#35

€ 0.00

92064A

K920641030
ref: 92064A

JET-PILOT,#30

€ 0.00

92064B

K920641038
ref: 92064B

JET-PILOT,#25

€ 0.00

92064C

K920641104
ref: 92064C

JET-PILOT,#40

€ 0.00

92064D

K920641110
ref: 92064D

JET-PILOT,#20

€ 0.00

92191

K921912065
ref: 92191

TUBE,3X5X270

€ 0.00
