FRONT HUB

RM60 2003 (K3) USA (E03)

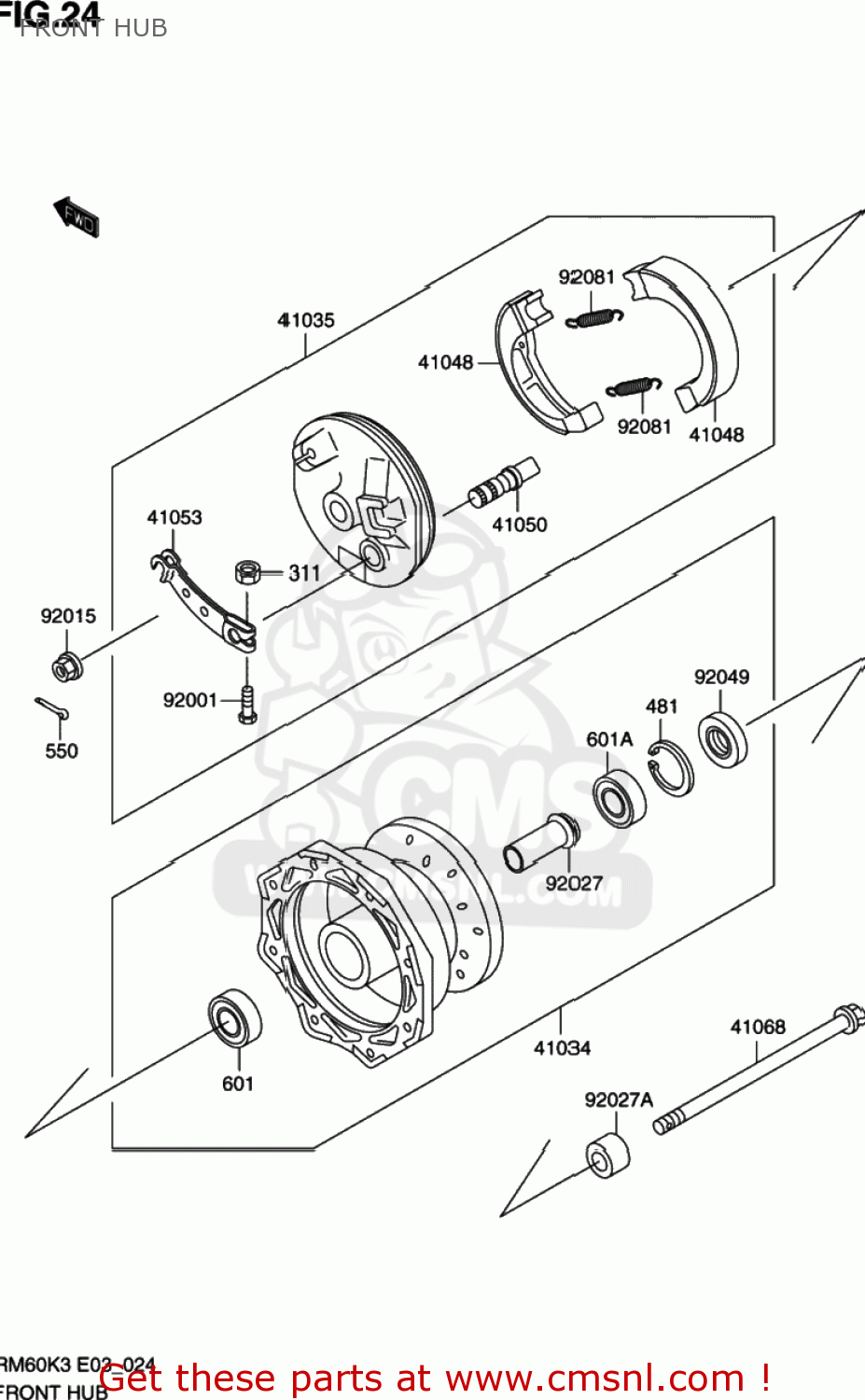

Front hub diagram RM60 2003 (K3) USA (E03)

FRONT HUB RM60 2003 (K3) USA (E03)
FRONT HUB RM60 2003 (K3) USA (E03)
FRONT HUB RM60 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
311
KK311H0500
ref: 311
NUT-HEX
€ 0.00
481
KK481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
KK481J3500
€ 2.50
550
KK550D2520
ref: 550
PIN-COTTER,2.5X20
€ 0.00
601
KKK601B6200UU
ref: 601
BEARING-BALL,#6200UUC3
€ 0.00
601A
KKK601B6300UU
ref: 601A
BEARING-BALL,#6300UUC3
€ 0.00
41034
K410341168
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 0.00
41035
K410351285
ref: 41035
PANEL-ASSY-BRAKE,FR
€ 0.00
41048
K410481083
ref: 41048
SHOE-BRAKE
€ 19.00
41050
K410501031
ref: 41050
CAM-BRAKE
€ 0.00
41053
K410531027
ref: 41053
LEVER-BRAKE CAM,FR
€ 0.00
41068
K410681305
ref: 41068
K4106-80015
AXLE,FR
€ 13.50
92001
K920011695
ref: 92001
BOLT,5X25
€ 0.00
92015
K920151335
ref: 92015
K9221-00276
NUT,FLANGED,10MM
€ 1.50
92027
K920271470
ref: 92027
COLLAR,FRONT DRUM,L=54
€ 0.00
92027A
K920271472
ref: 92027A
COLLAR,FRONT AXLE,L=14.5
€ 0.00
92049
K920491095
ref: 92049
SEAL-OIL,DD20357
€ 9.50
92081
K920811564
ref: 92081
SPRING,BRAKE SHOE
€ 5.50
