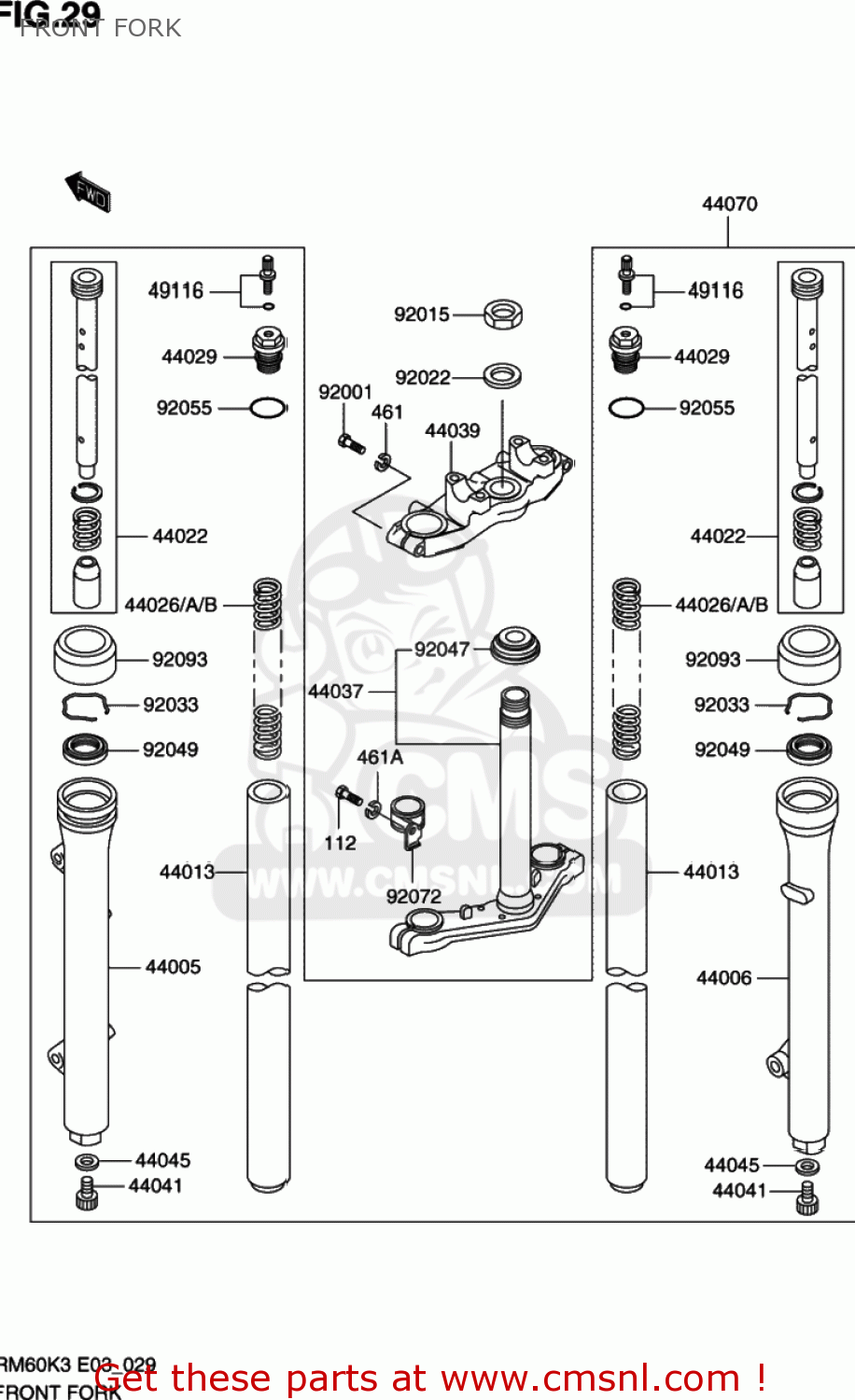

FRONT FORK

ref

part #

description

quantity

112

KK112P1035
ref: 112

BOLT-UPSET

€ 0.00

461

KK461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.00

461A

KK461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.00

44005

K440051101
ref: 44005

PIPE-LEFT FORK OUTER

€ 0.00

44006

K440061101
ref: 44006

PIPE-RIGHT FORK OUTER

€ 0.00

44013

K440131098
ref: 44013

PIPE-FORK INNER

€ 0.00

44022

K440221085
ref: 44022

CYLINDER-FORK

€ 0.00

44026

K440261156
ref: 44026

SPRING-FRONT FORK,K=0.25

€ 0.00

44026A

K440261174
ref: 44026A

SPRING-FRONT FORK,K=0.23

€ 0.00

44026B

K440261175
ref: 44026B

SPRING-FRONT FORK,K=0.27

€ 0.00

44029

K440291101
ref: 44029

SEAT-FORK SPRING

€ 0.00

44037

K440371227
ref: 44037

HOLDER-FORK UNDER

€ 0.00

44039

K440391326
ref: 44039

HOLDER-FORK UPPER

€ 0.00

44041

KK44041078
ref: 44041

BOLT,FORK CYLINDER

€ 0.00

44045

KK44045051
ref: 44045

GASKET,FORK CYLINDER BOLT (NAS)

€ 6.50

44070

K440705007
ref: 44070
K4400-31456

DAMPER-ASSY,FORK

€ 177.00

49116

K491161054
ref: 49116

VALVE-ASSY,AIR

€ 0.00

92001

K920011643
ref: 92001

BOLT,8X35

€ 1.50

92015

K920151653
ref: 92015

NUT,STEERING STEM,22MM

€ 9.50

92022

K920221873
ref: 92022

WASHER,STEERING STEM

€ 4.50

92033

K920331062
ref: 92033

RING-SNAP

€ 0.00

92047

KK92047013
ref: 92047

RACE,STEERING STEM BEARING

€ 10.50

92049

K920491069
ref: 92049

SEAL-OIL,FORK OUTER TUBE

€ 12.00

92055

K920551142
ref: 92055

RING-O,FORK TOP

€ 3.00

92072

K920721089
ref: 92072

BAND,CABLE

€ 0.00

92093

K920931054
ref: 92093

DUST SHIELD,FORK

€ 0.00
