KICKSTARTER MECHANISM

RM60 2003 (K3) USA (E03)

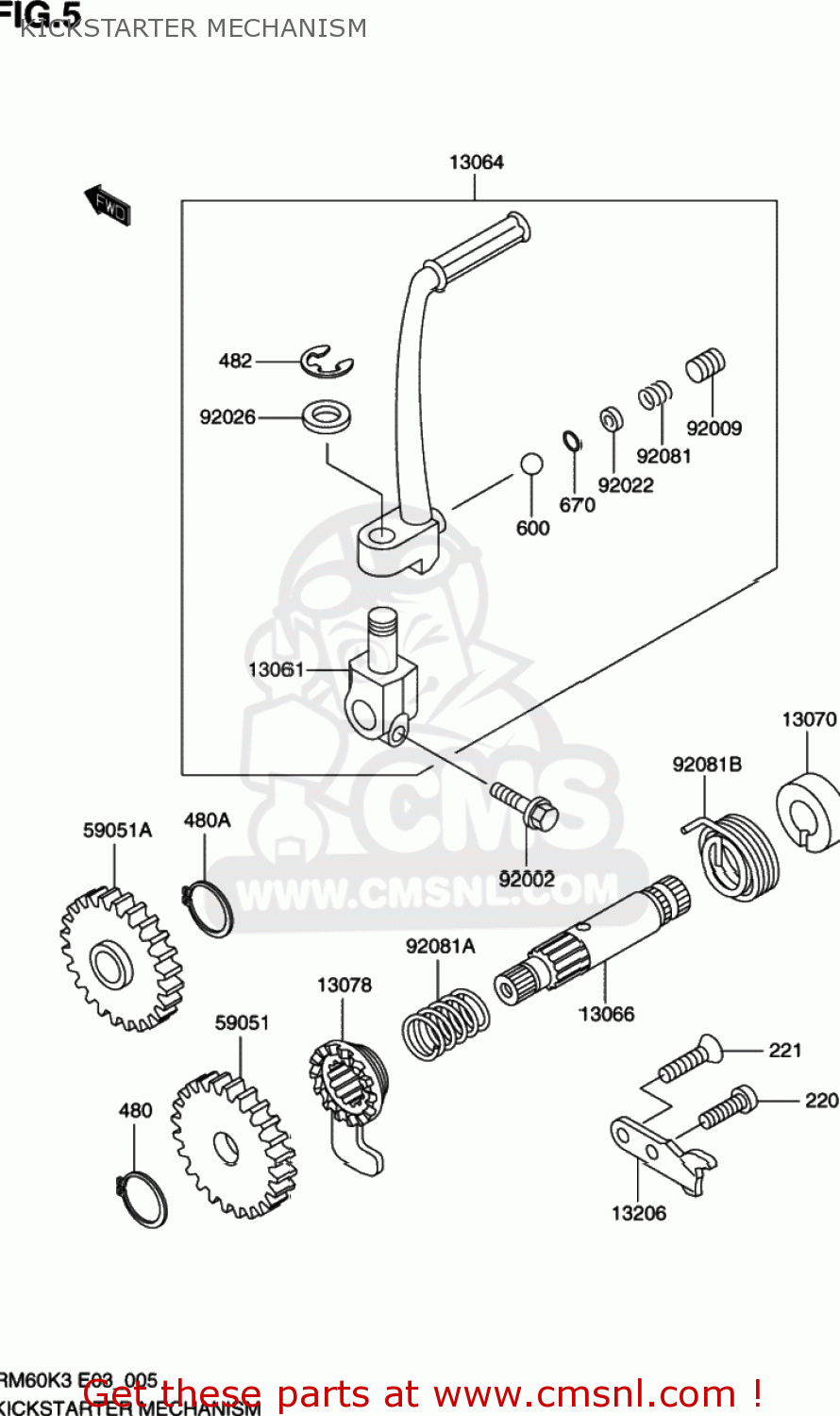

Kickstarter mechanism diagram RM60 2003 (K3) USA (E03)

KICKSTARTER MECHANISM RM60 2003 (K3) USA (E03)
KICKSTARTER MECHANISM RM60 2003 (K3) USA (E03)
KICKSTARTER MECHANISM RM60 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
220
KK220B0616
ref: 220
SCREW-PAN-CROS,6X16
€ 0.00
221
KK221B0618
ref: 221
SCREW-CSK-CROS,6X18
€ 1.50
480
KK480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 1.50
480A
KK480J1500
ref: 480A
CIRCLIP-TYPE-C,15MM
€ 1.00
482
KK482K8000
ref: 482
CIRCLIP-TYPE-E,8MM
€ 0.00
600
KK600A0800
ref: 600
BALL-STEEL,1/4
KK600A0800
€ 1.50
670
KK670B1504
ref: 670
O RING
€ 3.00
13061
K130611301
ref: 13061
BOSS,KICK LEVER
€ 0.00
13064
K130641154
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 86.00
13066
K130661093
ref: 13066
SHAFT-KICK,STARTER
€ 0.00
13070
K130701034
ref: 13070
GUIDE,KICK SPRING
€ 0.00
13078
K130781004
ref: 13078
RATCHET
€ 28.50
13206
K132061065
ref: 13206
GUIDE-KICK
€ 0.00
59051
K590511026
ref: 59051
GEAR-SPUR,32T
€ 33.00
59051A
K590511027
ref: 59051A
GEAR-SPUR,30T
€ 34.50
92002
K920021237
ref: 92002
BOLT,6X20
€ 2.50
92009
K920091312
ref: 92009
SCREW,SOCKET,8X8
€ 0.00
92022
K920221481
ref: 92022
WASHER
€ 0.00
92026
K920261527
ref: 92026
SPACER,12.2X20X1.6
€ 0.00
92081
KK92081020
ref: 92081
SPRING,KICK PEDAL
KK92081020
€ 3.50
92081A
KK92081122
ref: 92081A
SPRING,RATCHET
€ 5.50
92081B
K920811434
ref: 92081B
SPRING,RETURN
€ 0.00
