SWINGARM

RM60 2003 (K3) USA (E03)

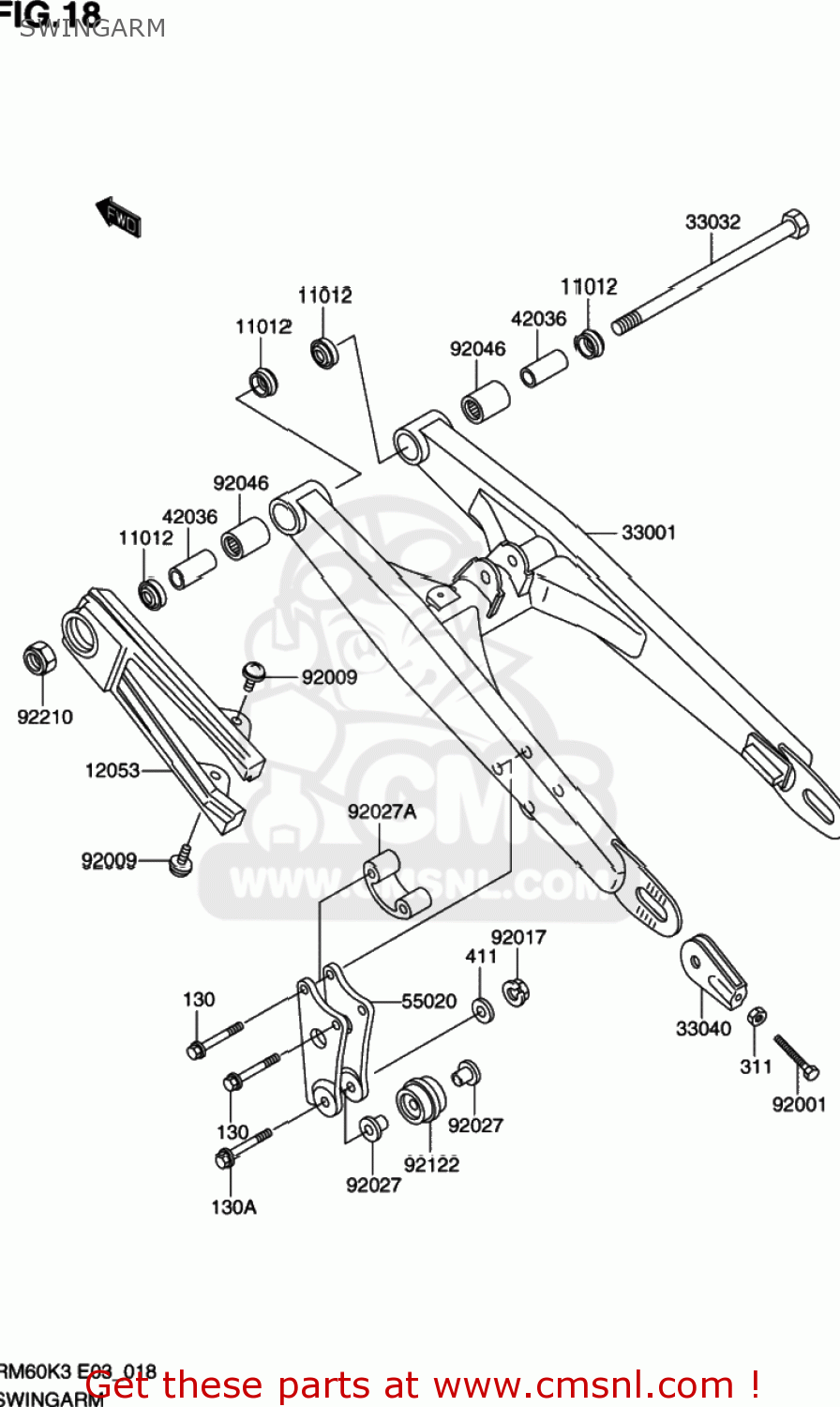

Swingarm diagram RM60 2003 (K3) USA (E03)

SWINGARM RM60 2003 (K3) USA (E03)
SWINGARM RM60 2003 (K3) USA (E03)
SWINGARM RM60 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
130
KK130G0645
ref: 130
BOLT-FLANGED,6X45
€ 0.00
130A
KK130G0650
ref: 130A
K130B-A0650
BOLT FLANGED,6
€ 1.50
311
KK311B0600
ref: 311
K311A-A0600
NUT HEX,6MM
€ 1.00
411
KK411B0600
ref: 411
K411A-A0600
WASHER-PLAIN,6MM
€ 2.00
11012
K110121263
ref: 11012
CAP
K110121263
€ 11.00
12053
K120531410
ref: 12053
GUIDE-CHAIN,FR
€ 0.00
33001
KK330011307CE
ref: 33001
ARM-COMP-SWING
€ 0.00
33032
K330321031
ref: 33032
SHAFT-SWING ARM,PIVOT
€ 0.00
33040
K330401055
ref: 33040
ADJUSTER-CHAIN
€ 0.00
42036
K420361067
ref: 42036
SLEEVE,SWING ARM,L=34
€ 7.00
55020
K550201163
ref: 55020
GUARD,CHAIN,RR
€ 0.00
92001
K920011463
ref: 92001
BOLT,6X39
€ 4.00
92009
K920091286
ref: 92009
SCREW,6X10,WHITE
€ 0.00
92017
KK92017014
ref: 92017
NUT,LOCK,6MM
€ 0.00
92027
K920271183
ref: 92027
COLLAR
€ 0.00
92027A
K920271495
ref: 92027A
COLLAR,CHAIN GUIDE
€ 0.00
92046
K920461046
ref: 92046
BEARING-NEEDLE
€ 18.50
92122
K921221030
ref: 92122
ROLLER,CHAIN GUIDE
€ 0.00
92210
K922101249
ref: 92210
NUT,LOCK,12MM
€ 0.00
