REAR HUB
RM60 2003 (K3) USA (E03)

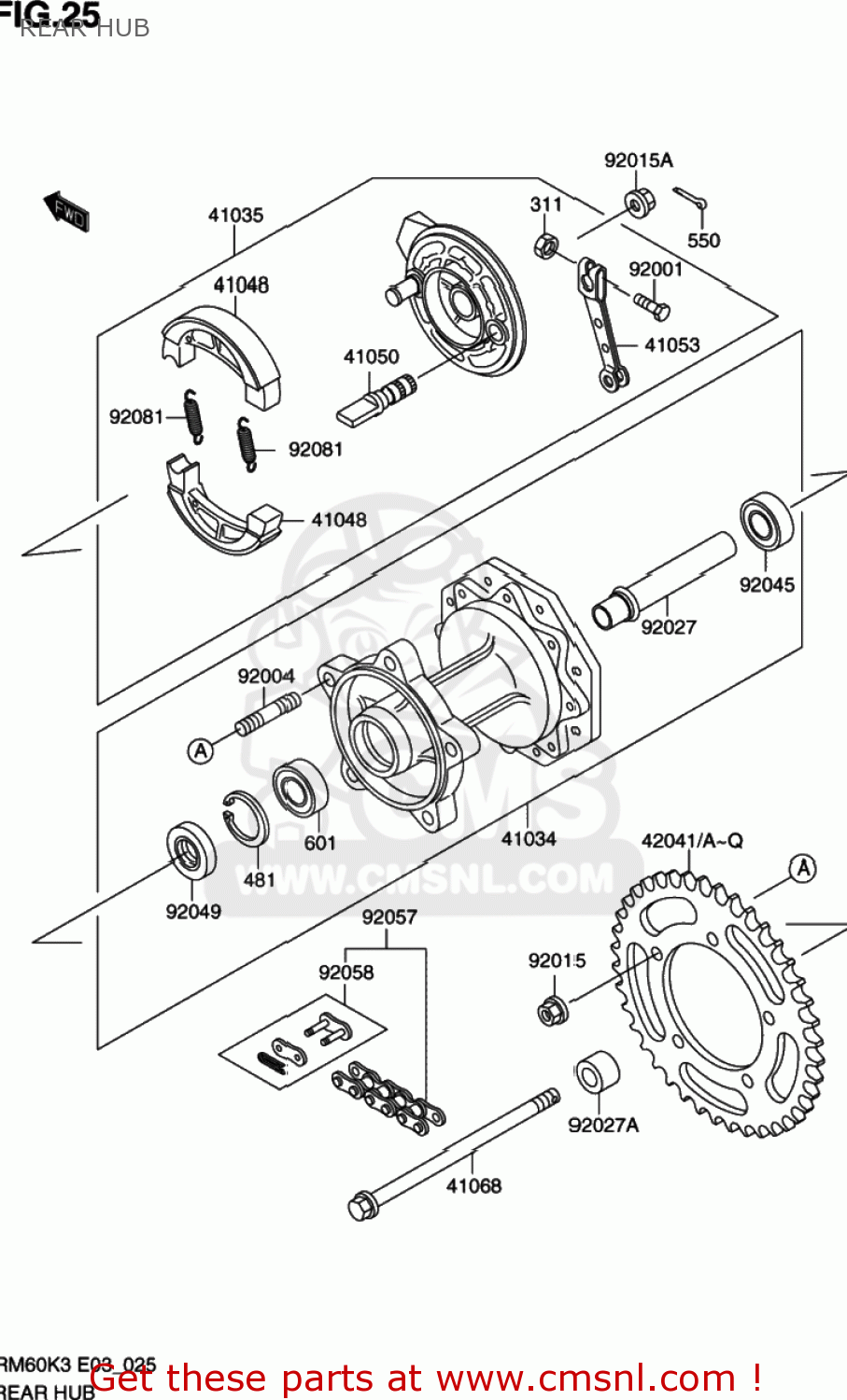

Rear hub diagram RM60 2003 (K3) USA (E03)
REAR HUB RM60 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
311
KK311H0500
ref: 311
NUT-HEX
€ 0.00
481
KK481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
550
KK550D2520
ref: 550
PIN-COTTER,2.5X20
€ 0.00
601
KKK601B6301UU
ref: 601
BEARING-BALL,#6201UUC3
€ 16.00
41034
K410341169
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 0.00
41035
K410351286
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 0.00
41048
K410481083
ref: 41048
SHOE-BRAKE
€ 19.00
41050
K410501031
ref: 41050
CAM-BRAKE
€ 0.00
41053
K410531058
ref: 41053
LEVER-BRAKE CAM,RR
€ 0.00
41068
K410681306
ref: 41068
K4106-80016
AXLE,RR
€ 0.00
42041
K420411114
ref: 42041
SPROCKET-HUB,44T
€ 0.00
42041A
K420411116
ref: 42041A
SPROCKET-HUB,43T
€ 0.00
42041B
K420411117
ref: 42041B
SPROCKET-HUB,45T
€ 0.00
42041C
K420411121
ref: 42041C
SPROCKET-HUB,49T
€ 0.00
42041D
K420411122
ref: 42041D
SPROCKET-HUB,48T
€ 0.00
42041E
K420411123
ref: 42041E
SPROCKET-HUB,50T
€ 0.00
42041F
K420411129
ref: 42041F
SPROCKET-HUB,47T
€ 0.00
42041G
K420411167
ref: 42041G
SPROCKET-HUB,43T,AL
€ 0.00
42041H
K420411168
ref: 42041H
SPROCKET-HUB,44T,AL
€ 0.00
42041I
K420411169
ref: 42041I
SPROCKET-HUB,48T,AL
€ 0.00
42041J
K420411170
ref: 42041J
SPROCKET-HUB,49T,AL
€ 0.00
42041K
K420411171
ref: 42041K
SPROCKET-HUB,50T,AL
€ 0.00
42041L
K420411175
ref: 42041L
SPROCKET-HUB,45T,AL
€ 0.00
42041M
K420411176
ref: 42041M
SPROCKET-HUB,46T,AL
€ 0.00
42041N
K420411177
ref: 42041N
SPROCKET-HUB,47T,AL
€ 0.00
42041O
K420411178
ref: 42041O
SPROCKET-HUB,46T
€ 0.00
42041P
K420411181
ref: 42041P
SPROCKET-HUB,51T
€ 0.00
42041Q
K420411182
ref: 42041Q
SPROCKET-HUB,51T,AL
€ 0.00
92001
K920011695
ref: 92001
BOLT,5X25
€ 0.00
92004
K920041183
ref: 92004
STUD,8X16
€ 0.00
92015
K920151143
ref: 92015
NUT,8MM
€ 1.50
92015A
K920151433
ref: 92015A
NUT,FLANGED,12MM
€ 5.00
92027
K920271471
ref: 92027
COLLAR,REAR DRUM,L=115
€ 0.00
92027A
K920271473
ref: 92027A
COLLAR,REAR AXLE,L=14.5
€ 0.00
92045
K920451062
ref: 92045
BEARING-BALL,TMB201LLUC3/2A
€ 17.50
92049
K920491096
ref: 92049
SEAL-OIL,DD20377
€ 0.00
92057
K920571436
ref: 92057
CHAIN,DRIVE,DID420MBK1X104L
€ 0.00
92058
K920581073
ref: 92058
JOINT-CHAIN,DRIVE
€ 8.00
92081
K920811766
ref: 92081
SPRING,BRAKE SHOE
€ 6.50
