CARBURETOR
RM80 2000 (Y) USA (E03)

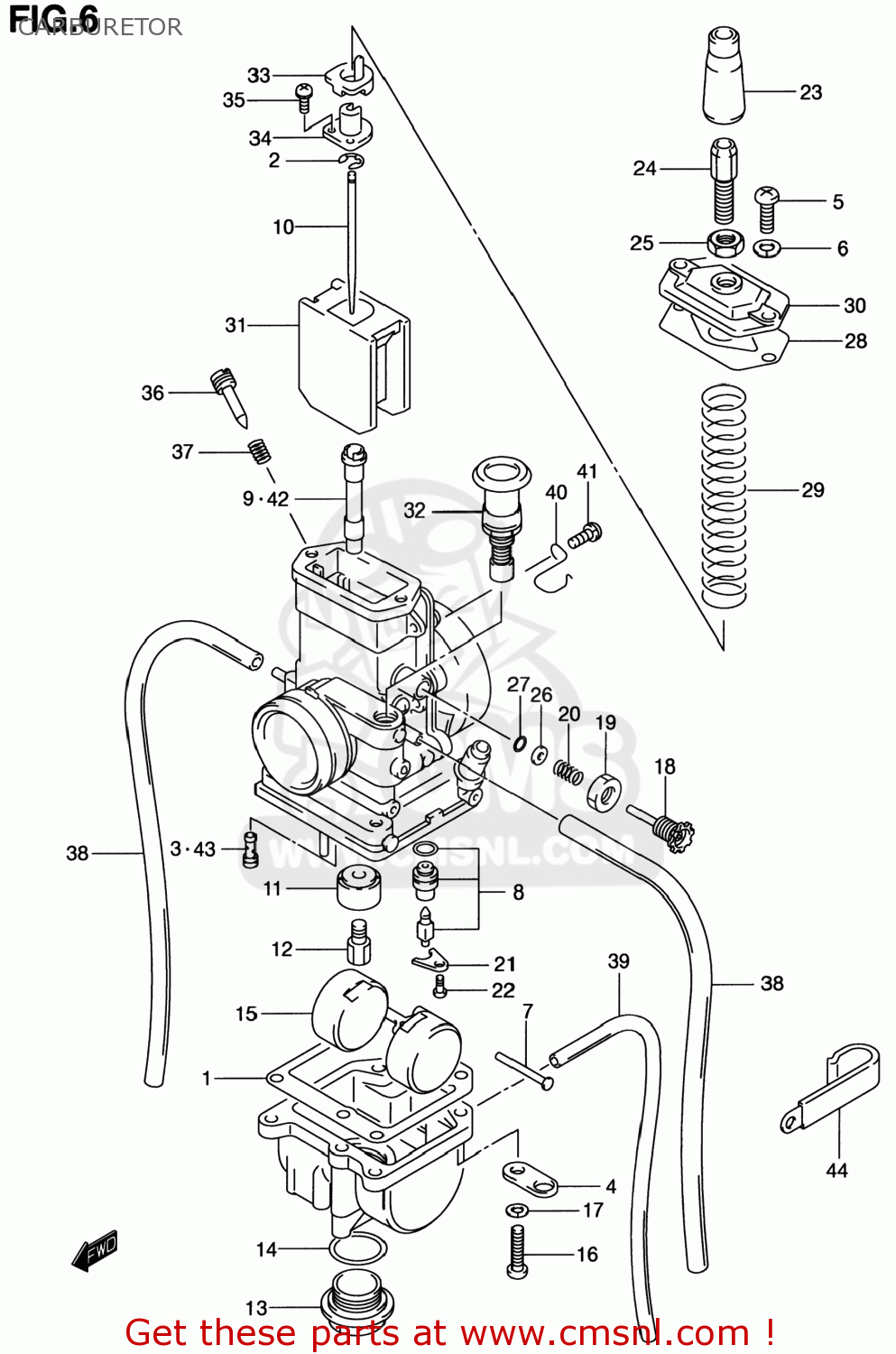

Carburetor diagram RM80 2000 (Y) USA (E03)
CARBURETOR RM80 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320003B00
ref:
CARBURETOR ASSY
€ 232.50
1
1325102B40
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 6.50
2
1339410010
ref: 2
CLIP
€ 4.50
3
0949230006
ref: 3
JET,PILOT(30)
€ 8.50
4
1369336500
ref: 4
PLATE,CARBURETOR
€ 3.50
5
0211204123
ref: 5
02112-0412A
SCREW
€ 1.50
6
0832101043
ref: 6
08321-0104A
WASHER,LOCK
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337002B50
ref: 8
VALVE ASSY,NEEDLE
€ 54.50
9
0949400523
ref: 9
JET,NEEDLE(P-4)
€ 14.50
10
1338346900
ref: 10
NEEDLE,JET(5DP39-4)
€ 11.50
11
1333128710
ref: 11
RING
€ 8.50
12
0949142005
ref: 12
JET,MAIN(210)
€ 11.00
13
1324746900
ref: 13
PLUG
€ 12.50
14
1324629630
ref: 14
O RING
€ 5.00
15
1325202B50
ref: 15
FLOAT
€ 26.00
16
0211204203
ref: 16
02112-0420A
SCREW
€ 1.00
17
0832101043
ref: 17
08321-0104A
WASHER,LOCK
€ 2.00
18
1326716700
ref: 18
ADJUSTER,THROTTLE STOP
€ 11.00
19
1366102B00
ref: 19
NUT
€ 4.00
20
1326835010
ref: 20
SPRING
€ 3.00
21
1337339110
ref: 21
PLATE
€ 6.50
22
0211204087
ref: 22
SCREW
€ 1.50
23
1368133010
ref: 23
CAP,CABLE ADJUSTER
€ 8.00
24
1357741612
ref: 24
ADJUSTER,CABLE
€ 8.00
25
1366116600
ref: 25
NUT
€ 5.00
26
1329135010
ref: 26
WASHER
€ 2.50
27
1329533010
ref: 27
O RING
€ 4.50
28
1326616700
ref: 28
GASKET,CARBURETOR TOP (NAS)
€ 6.00
29
1357316700
ref: 29
SPRING
€ 6.00
30
1326116700
ref: 30
CAP,CARBURETOR TOP
€ 14.50
31
1355120910
ref: 31
VALVE,THROTTLE
€ 56.50
32
1341026410
ref: 32
PLUNGER ASSY,STARTER
€ 36.00
33
1362916700
ref: 33
RING
€ 11.50
34
1339816700
ref: 34
JOINT
€ 7.00
35
0211233103
ref: 35
SCREW
€ 1.50
36
1326916700
ref: 36
SCREW,AIR
€ 9.50
37
1326801010
ref: 37
SPRING
€ 3.50
38
0935135653600
ref: 38
HOSE(3.5X6.5X600)
€ 5.50
39
0935230503600
ref: 39
HOSE(3X5X600)
€ 8.00
40
1369214500
ref: 40
CLIP
€ 4.00
41
1360104148
ref: 41
SCREW
€ 2.50
42-1
0949400519
ref: 42-1
JET,NEEDLE(P-0)
€ 15.50
42-2
0949400522
ref: 42-2
JET,NEEDLE,P-2
€ 14.50
42-3
0949400585
ref: 42-3
JET,NEEDLE,P-6
€ 18.50
43-1
0949225005
ref: 43-1
JET,PILOT(25)
€ 6.50
43-2
0949235004
ref: 43-2
JET,PILOT(35)
€ 7.50
44
0940306307
ref: 44
CLAMP
€ 4.50
