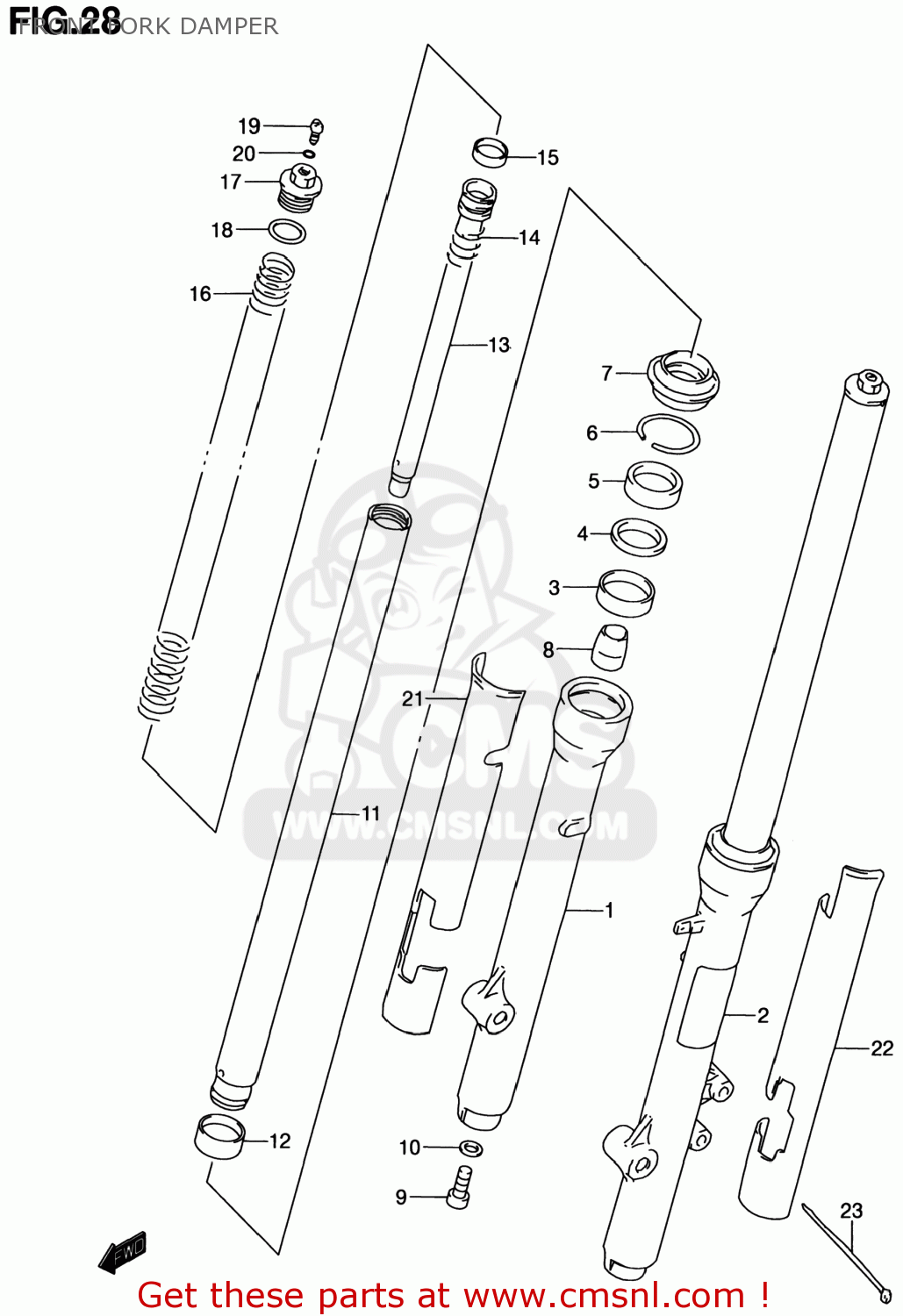

FRONT FORK DAMPER

ref

part #

description

quantity

5110302B60
ref:

DAMPER ASSY,FR FORK,R

€ 542.50

5110402B60
ref:

DAMPER ASSEMBLY,LEFT

€ 623.00

1

5113002B60
ref: 1

TUBE,OUTER,R

€ 229.00

2

5114002B60
ref: 2

TUBE,OUTER,L

€ 229.00

3

5115245400
ref: 3

BUSH,GUIDE

€ 14.00

4

5116830B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115319D10
ref: 5

SEAL,OIL 35X48X11

€ 14.00

6

5115601A00
ref: 6

RING,OIL SEAL STOPPER

€ 3.50

7

5157103B20
ref: 7

SEAL,DUST

€ 22.00

8

5119502B40
ref: 8

PIECE,OIL LOCK

€ 9.00

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5111002B40
ref: 11

TUBE,INNER

€ 211.50

12

5112134A00
ref: 12

PISTON

€ 11.00

13

5119402B40
ref: 13

SEAT,UNDER

€ 64.00

14

5117702B20
ref: 14

SPRING,REBOUND

€ 5.00

15

5119602B40
ref: 15

RING,PISTON

€ 6.50

16

5117102B40
ref: 16

SPRING,UNDER

€ 39.50

16A

99104S2691
ref: 16A

SPRING, FRONT (HARD, K=0.36)

€ 0.00

17

5135102B60
ref: 17

BOLT,FORK

€ 37.50

18

5111702B20
ref: 18

O RING

€ 3.50

19

5135727C40
ref: 19

BOLT,PLUG

€ 5.50

20

5111719C10
ref: 20

O RING

€ 2.00

21

5120102B00
ref: 21

PROTECTOR,FR FORK,R

€ 42.50

22

5120202B00
ref: 22

PROTECTOR,FR FORK,L

€ 42.50

23

0940725402
ref: 23

CLAMP(L:250)

€ 4.50

all assemblies
