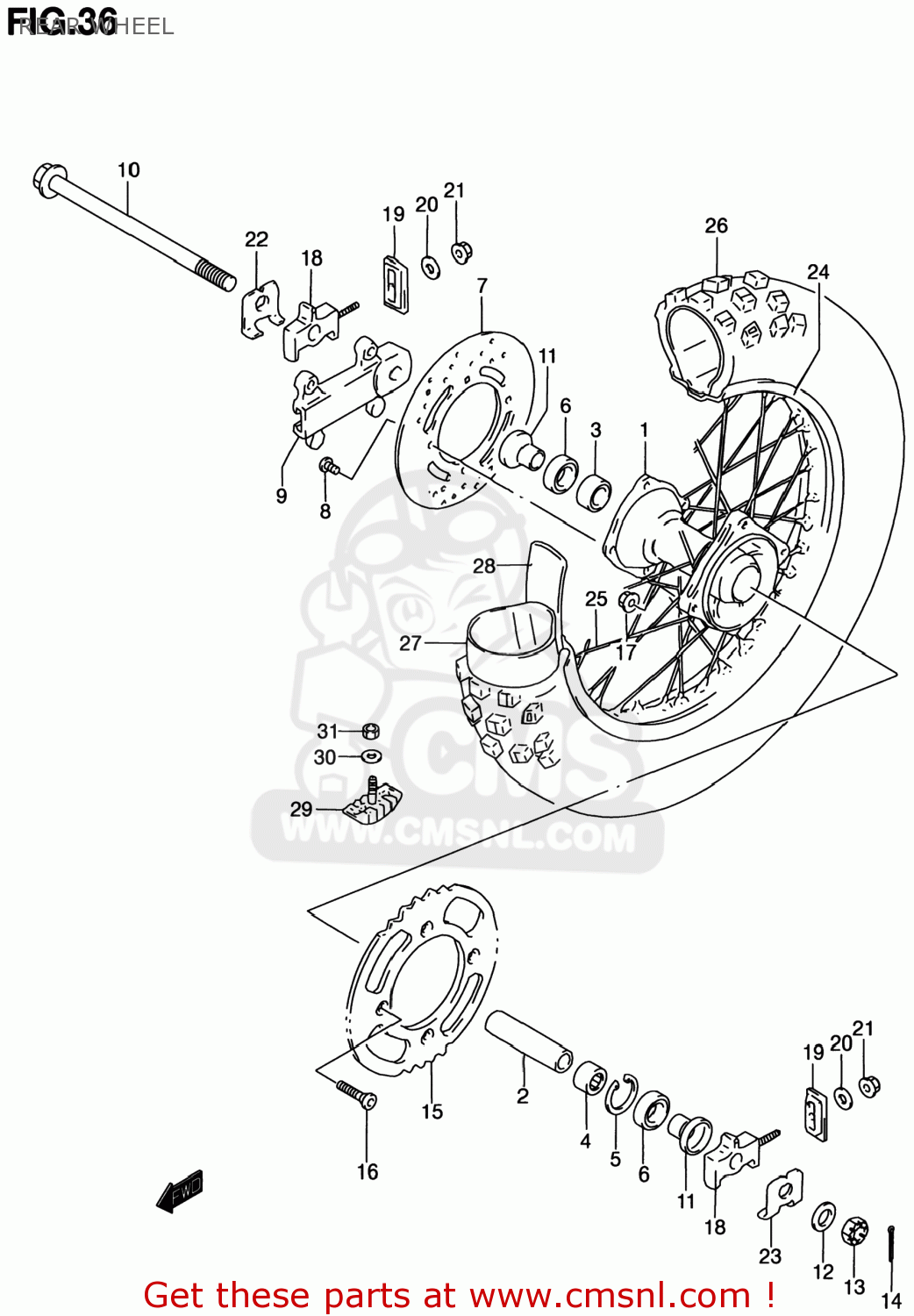

REAR WHEEL

ref

part #

description

quantity

1

6411102B43
ref: 1

HUB,RR WHEEL

€ 175.00

2

6473102B40
ref: 2

SPACER,RR HUB BEARING

€ 10.50

3

0812360027
ref: 3

BEARING

€ 16.00

4

0926215021
ref: 4

BEARING(15X35X11)

€ 14.00

5

0833141356
ref: 5
08331-41359

CIRCLIP

€ 2.00

6

0928320024
ref: 6

SEAL,OIL(20X35X7)

€ 5.50

7

6921102B40
ref: 7
69211-02B41

DISC,REAR BRAKE

€ 147.00

8

0212206123
ref: 8
02122-0612A

SCREW

€ 3.00

9

6972102B42
ref: 9

BRACKET,RR AXLE

€ 92.00

10

6471102B40
ref: 10

AXLE,RR

€ 34.00

11

6474102B41
ref: 11

SPACER,RR AXLE

€ 47.00

12

0916014033
ref: 12
09160-14062

WASHER

€ 3.00

13

0914114004
ref: 13

NUT

€ 5.00

14

0411130308
ref: 14
04111-3030A

COTTER PIN

€ 1.50

15-1

6451120920
ref: 15-1

SPROCKET,RR(NT:48)

€ 68.50

15-2

6451120980
ref: 15-2

SPROCKET,RR(NT:46)

€ 174.50

15-3

6451120550
ref: 15-3

SPROCKET,RR(NT:47)

€ 82.00

15-4

6451102B40
ref: 15-4

SPROCKET,RR(49T)

€ 79.00

16

0912008010
ref: 16

BOLT(8X30.5)

€ 2.50

17

0915908067
ref: 17

NUT

€ 5.50

18

6141002B02
ref: 18

ADJUSTER,CHAIN

€ 147.50

19

6142102B00
ref: 19
61421-02B0V

PLATE,CHAIN ADJUSTER

€ 7.00

20

0832201063
ref: 20
08322-0106B

WASHER

€ 2.00

21

0831921068
ref: 21
08319-2106A

NUT 6MM

€ 2.00

22

6471202B00
ref: 22

WASHER,CHAIN ADJUSTER RH

€ 2.50

23

6471302B00
ref: 23

WASHER,CHAIN ADJUSTER,L

€ 2.00

24

6531102B40
ref: 24

RIM,RR WHEEL(1.60X14 AL)

€ 169.50

25

6532002B51
ref: 25

SPOKE ASSY,RR WHEEL

€ 42.00

26

6511002B60
ref: 26
65110-02B70

TIRE,REAR 90/100-14 D7

€ 162.00

26

6511002B60
ref: 26
65110-02B70

TIRE,REAR 90/100-14 D7

€ 162.00

27-1

6520002B60
ref: 27-1
65200-02B40

TUBE ASSEMBLY,WHEEL,INNER

€ 26.00

27-2

6520002B40
ref: 27-2

TUBE ASSY,WHEEL INNER

€ 26.00

28-1

6526102B60
ref: 28-1
65261-02B40

PROTECTOR,WHEEL,INNER

€ 3.00

28-2

6526102B40
ref: 28-2

PROTECTOR,WHL INR TUBE

€ 3.00

29

6527043D00
ref: 29

STOPPER,BEAD(1.85)

€ 30.50

30

0832201083
ref: 30
08322-0108A

WASHER

€ 1.50

31

0831000083
ref: 31
08310-0008A

NUT

€ 1.50

all assemblies
