REAR CUSHION LEVER
RM80 2000 (Y) USA (E03)

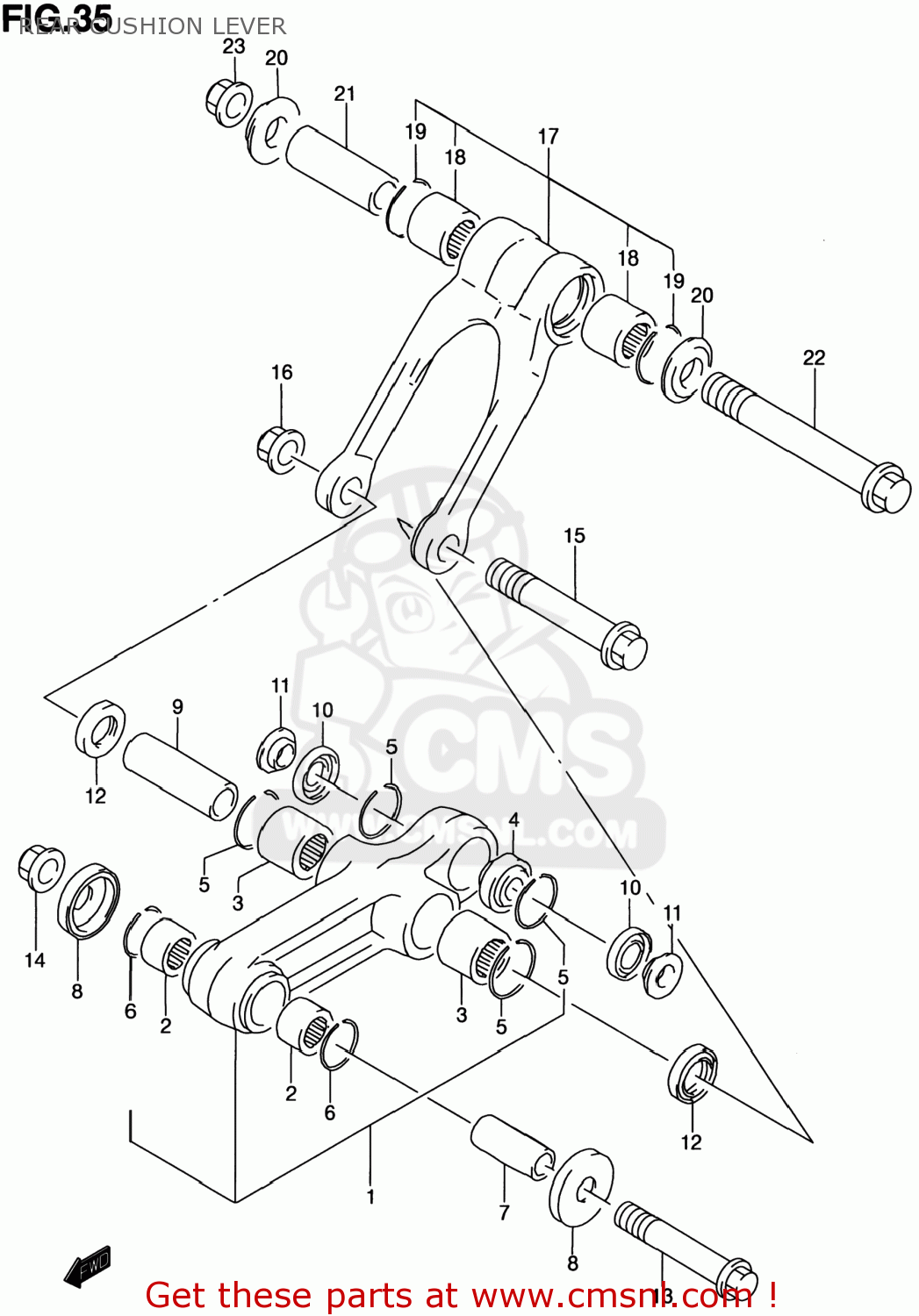

Rear cushion lever diagram RM80 2000 (Y) USA (E03)
REAR CUSHION LEVER RM80 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260002840
ref: 1
LEVER SET,RR CUSHION
€ 261.50
2
0926314027
ref: 2
BEARING(14X20X12)
€ 11.00
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
6217500B00
ref: 4
BEARING,RR CUSHION LEVER
€ 66.00
5
6265734A01
ref: 5
RING,STOPPER
€ 1.50
6
0938120004
ref: 6
CIRCLIP,PISTON PIN
€ 2.00
7
6231702B40
ref: 7
SPACER,RR CUSHION LEVER FR
€ 8.50
8
6216203B00
ref: 8
SEAL,RR CUSHION LEVER FR DUST
€ 6.50
9
6262602B40
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 10.00
10
6222628C00
ref: 10
SEAL,RR CUSHION LEVER RR DUST
€ 7.50
11
6268428C10
ref: 11
SPACER,RR CUSHION LEVER RR
€ 11.00
12
0928517001
ref: 12
SEAL,OIL(17X24X3)
€ 3.50
13
6265802B40
ref: 13
BOLT,RR CUSHION LEVER FR
€ 4.50
14
0915910058
ref: 14
09159-10115
NUT
€ 4.00
15
6262102B40
ref: 15
BOLT,RR CUSHION LEVER CTR
€ 5.00
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17
6260002851
ref: 17
62600-03850
ROD SET,REAR CUSHION,LEFT
€ 211.50
18
0926317039
ref: 18
BEARING(17X24X20)
€ 18.00
19
6265734A01
ref: 19
RING,STOPPER
€ 1.50
20
6264702B40
ref: 20
SPACER,RR CUSHION ROD SIDE
€ 6.00
21
6264602B40
ref: 21
SPACER,RR CUSHION ROD
€ 10.00
22
6262202B40
ref: 22
BOLT,RR CUSHION ROD
€ 7.50
23
0831931128
ref: 23
08319-3112A
NUT 12MM
€ 4.00
