FRAME

RM80 2000 (Y) USA (E03)

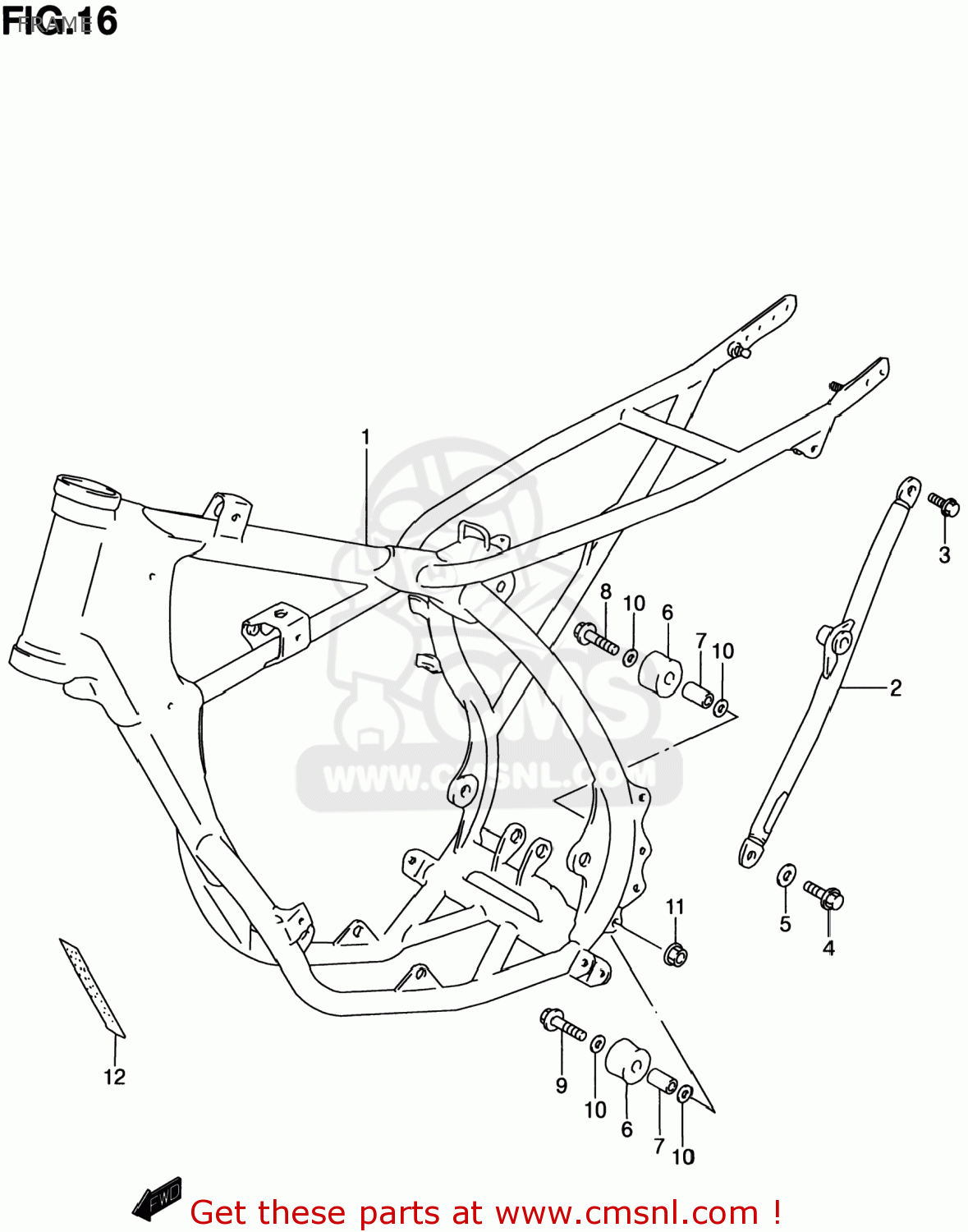

Frame diagram RM80 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

FRAME COMP

€ 954.00

TUBE,FRAME SIDE(CHARCOAL)

€ 62.50

0910008274
ref: 3

BOLT(8X22)

€ 3.00

0910008284
ref: 4

BOLT(8X16)

€ 4.00

0916008121
ref: 5
09160-08120

WASHER

€ 2.50

4391135B00
ref: 6

ROLLER,CHAIN CONTROL

€ 14.50

0918008214
ref: 7

SPACER(8.6X12.2X25.5)

€ 3.50

0910308178
ref: 8

BOLT(8X38)

€ 5.00

0910308170
ref: 9
09103-08339

BOLT

€ 3.50

0918108167
ref: 10

SHIM(8X16X1)

€ 2.00

0831931087
ref: 11

NUT

€ 2.50

6837202B31
ref: 12

PLATE,WARNING

€ 4.00
