REAR FENDER

RM80 2000 (Y) USA (E03)

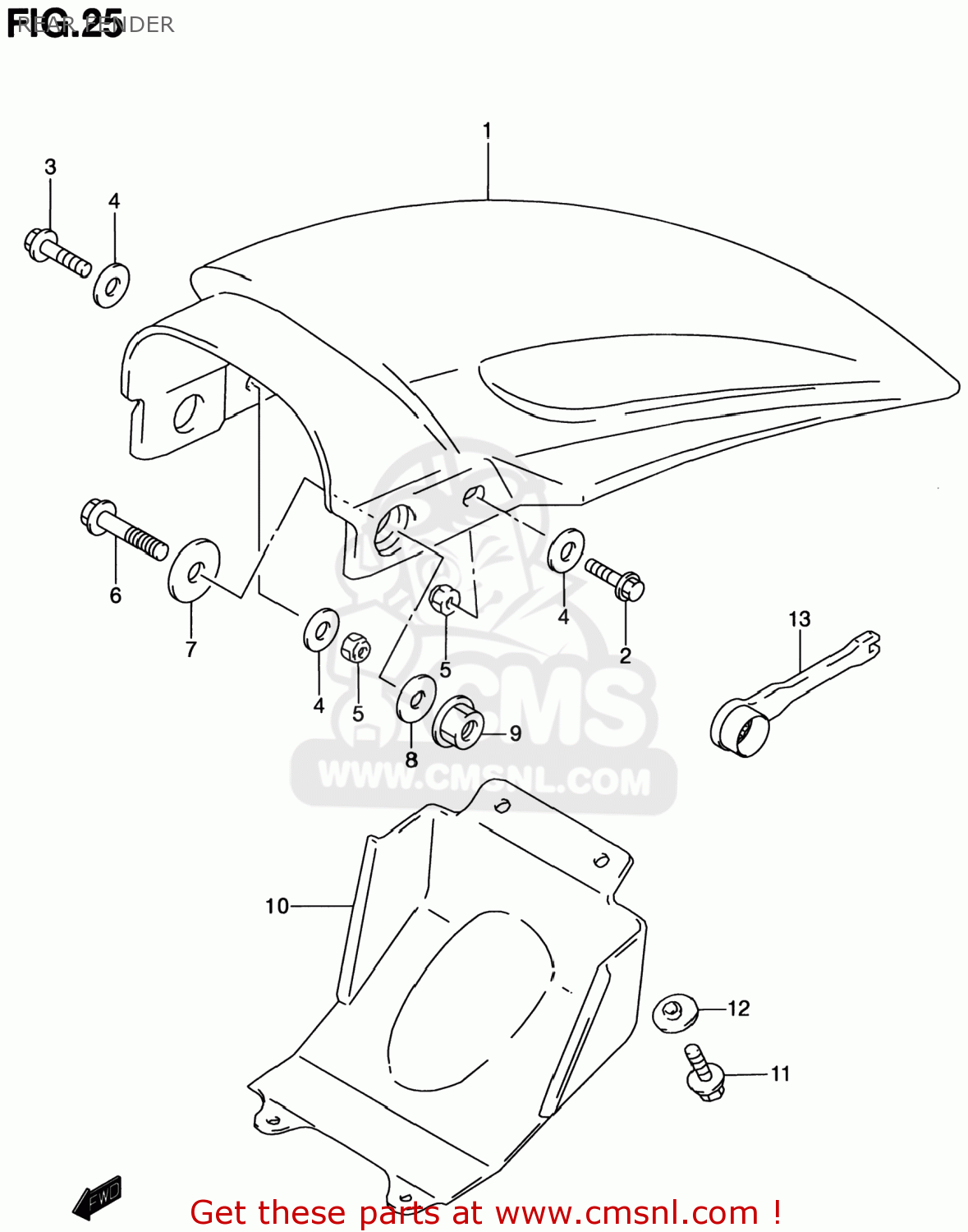

Rear fender diagram RM80 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311103B6025Y
ref: 1-1

FENDER,RR

€ 40.00

1-2

6311103B60YR1
ref: 1-2

FENDER,REAR

€ 46.50

0154706203
ref: 2
01547-0620B

SCREW

€ 2.50

0154706303
ref: 3
01547-0630B

BOLT,G/S SWITC

€ 3.00

0916006077
ref: 4

WASHER(6.5X20X1.2)

€ 2.00

0831921068
ref: 5
08319-2106A

NUT 6MM

€ 2.00

0154706303
ref: 6
01547-0630B

BOLT,G/S SWITC

€ 3.00

0916006135
ref: 7

WASHER(6.5X26X2.3)

€ 1.50

0916006084
ref: 8

WASHER(6.5X18X1.6)

€ 2.00

0831931063
ref: 9
08319-3106A

NUT

€ 2.50

6335103B00
ref: 10

MUDGUARD,RR FENDER FR

€ 13.50

0154706103
ref: 11
01547-0610B

BOLT

€ 3.00

0916906010
ref: 12

WASHER

€ 3.00

0981600126
ref: 13

SPARK PLUG WRENCH 21 & SPANNER 5.1

€ 10.00
