CLUTCH
RM80X 1983 (D)

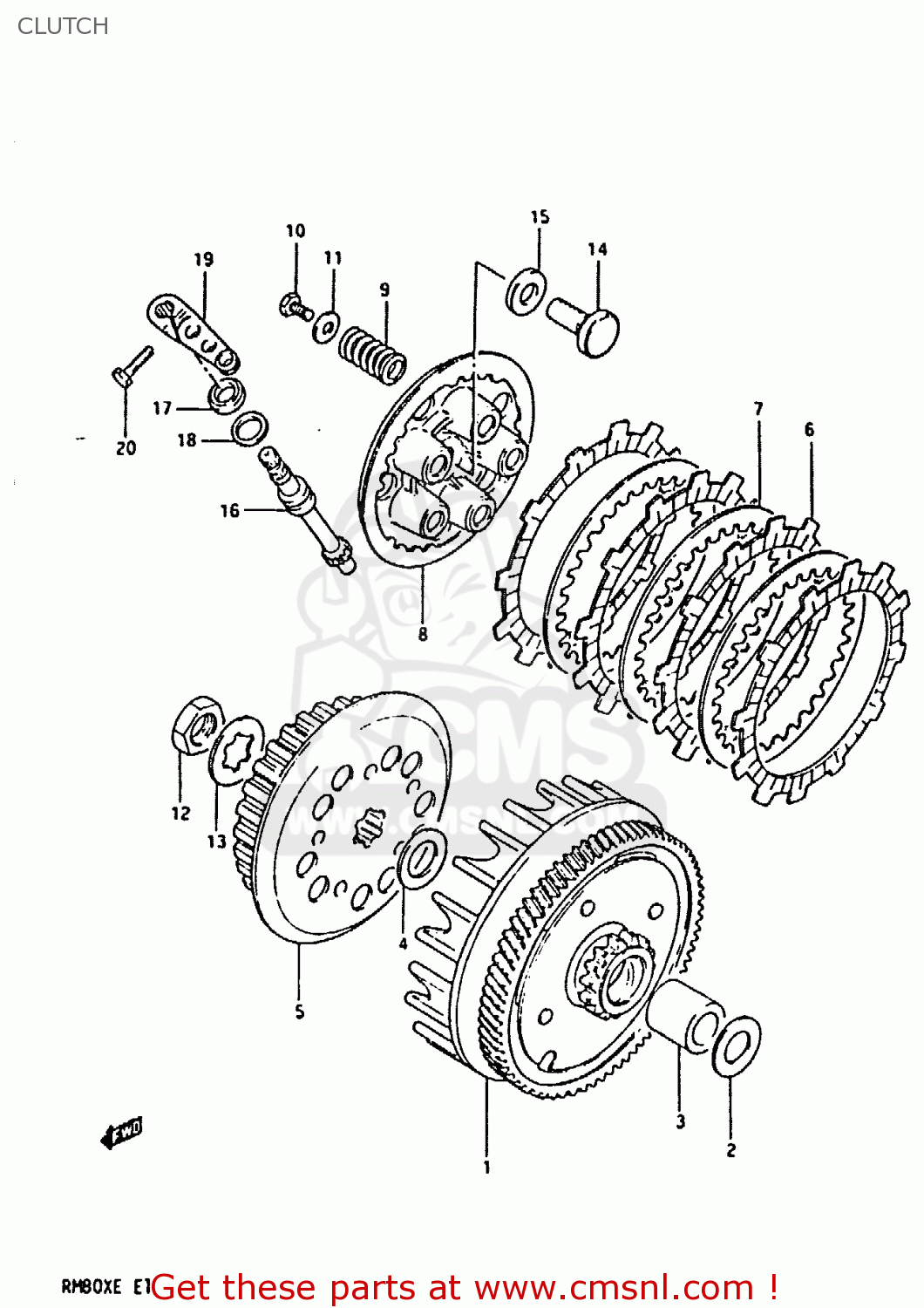

Clutch diagram RM80X 1983 (D)
CLUTCH RM80X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120020401
ref: 1-1
NT:64/17 MODEL D
GEAR ASSEMBLY,PRIMARY DRIVE
€ 119.00
1-2
2120020910
ref: 1-2
NT:64/17 MODEL E
GEAR ASSEMBLY,PRIMARY DRIVE
€ 167.50
2
0821117301
ref: 2
WASHER,THRUST
€ 3.00
3
0918017049
ref: 3
SPACER(17X22X28.5)
€ 20.50
4
0821117282
ref: 4
WASHER
€ 3.00
5-1
2141120400
ref: 5-1
MODEL D
HUB,CLUTCH SLEEVE
€ 41.00
5-2
2141146901
ref: 5-2
MODEL E
HUB,CLUTCH SLEEVE
€ 55.00
6-1
2144128301
ref: 6-1
MODEL D
PLATE,CLUTCH DRIVE
€ 8.50
6-2
2144128301
ref: 6-2
MODEL E
PLATE,CLUTCH DRIVE
€ 8.50
7-1
2145128000
ref: 7-1
MODEL D
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
7-2
2145128000
ref: 7-2
MODEL E
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
8-1
2146220400
ref: 8-1
MODEL D
DISC,CLUTCH PRESSURE
€ 19.50
8-2
2146246901
ref: 8-2
MODEL E
DISC,CLUTCH PRESSURE
€ 21.00
9
0944015014
ref: 9
SPRING
€ 4.00
10
0910005002
ref: 10
BOLT(5X16)
€ 2.00
11
0916005017
ref: 11
WASHER (5.5X16X1.2)
€ 2.50
12
0914016001
ref: 12
NUT
€ 4.50
13
0916717002
ref: 13
WASHER,LOCK
€ 2.00
14
2316528300
ref: 14
RACK,CLUTCH RELEASE
€ 20.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
€ 8.50
16
2326141301
ref: 16
PINION,CLUTCH RELEASE
€ 27.50
17
0928510004
ref: 17
SEAL,OIL(10X17X5)
€ 3.50
18
0916012035
ref: 18
WASHER (12X17X1)
€ 2.00
19
2327120900
ref: 19
ARM,CLUTCH RELEASE
€ 20.50
20
0110706168
ref: 20
BOLT, UPPER
€ 3.00
