FRONT WHEEL
RM80X 1983 (D)

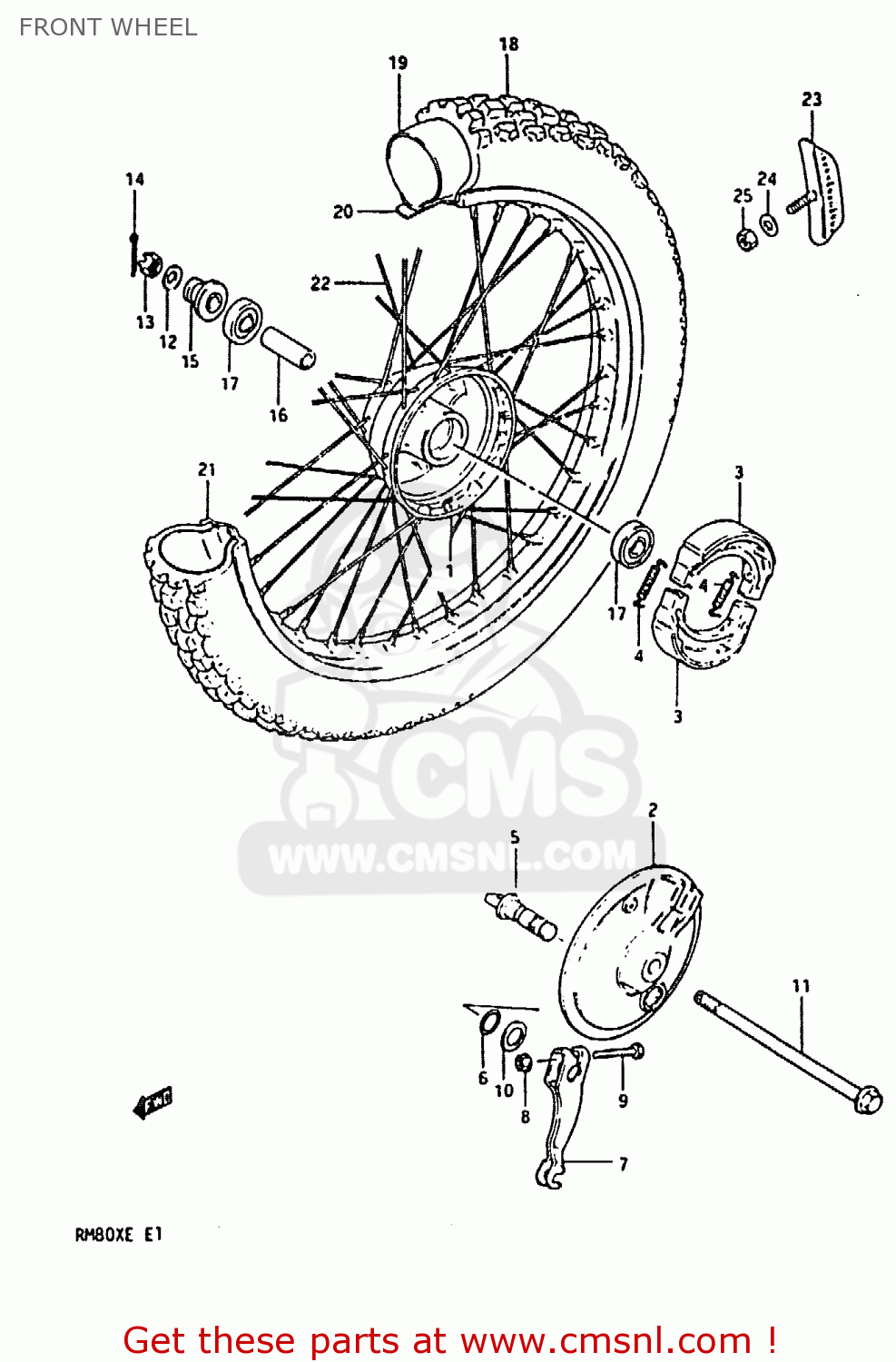

Front wheel diagram RM80X 1983 (D)
FRONT WHEEL RM80X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411020401
ref: 1-1
MODEL D
HUB,FRONT
€ 100.50
1-2
5411020403
ref: 1-2
MODEL E
HUB,FRONT
€ 100.50
2
5421020900
ref: 2
PANEL,FRONT HUB
€ 103.00
3
5441020401
ref: 3
SHOE,BRAKE (MCA)
€ 50.50
4
0944307025
ref: 4
SPRING(L:35.8)
€ 2.50
5
5444120900
ref: 5
CAM,BRAKE
€ 9.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7
5445120400
ref: 7
LEVER,FRONT BRAKE CAM
€ 13.00
8
0831616066
ref: 8
NUT
€ 2.50
9
0151706308
ref: 9
BOLT
€ 2.00
10
0916012011
ref: 10
WASHER(12.5X20X1)
€ 1.50
11
5471120400
ref: 11
AXLE,FRONT
€ 29.50
12
0832211108
ref: 12
WASHER
€ 2.50
13
0831431108
ref: 13
NUT
€ 1.50
14
0411120208
ref: 14
PIN 20X20
€ 1.50
15
5474020400
ref: 15
SPACER,FRONT AXLE,RIGHT
€ 14.00
16
0918010079
ref: 16
SPACER (10.4X15X48)
€ 2.00
17-1
0812362007
ref: 17-1
MODEL D
BEARING
€ 12.00
17-2
0926210009
ref: 17-2
MODEL E
BEARING(10X30X9)
€ 14.00
18-1
5510020520
ref: 18-1
MODEL D
TIRE 2.75-17
€ 56.50
18-2
5510020900
ref: 18-2
MODEL D
TIRE,FRONT
€ 68.00
18-3
5510020400
ref: 18-3
MODEL E
TIRE,FRONT
€ 68.00
18-4
5510020420
ref: 18-4
MODEL E
TIRE,FRONT
€ 56.50
19-1
5520020330
ref: 19-1
MODEL D
TUBE,INNER
€ 21.00
19-2
5520020510
ref: 19-2
MODEL E
TUBE,INNER
€ 0.00
20-1
5526120330
ref: 20-1
MODEL D
PROTECTOR,WHEEL,INNER
€ 3.50
20-2
5526101010
ref: 20-2
MODEL E
PROTECTOR,WHEEL,INNER
€ 3.50
21-1
5531120900
ref: 21-1
MODEL D
RIM,FRONT WHEEL
€ 199.50
21-2
5531120910
ref: 21-2
MODEL E
RIM,FRONT WHEEL
€ 199.50
22
5532020400
ref: 22
SPOKE SET,FRONT
€ 28.00
23
6527028600
ref: 23
STOPPER,BEAD
€ 26.50
24
0832211088
ref: 24
WASHER
€ 2.00
25
0831012088
ref: 25
NUT
€ 2.00
