REAR WHEEL (MODEL D)
RM80X 1983 (D)

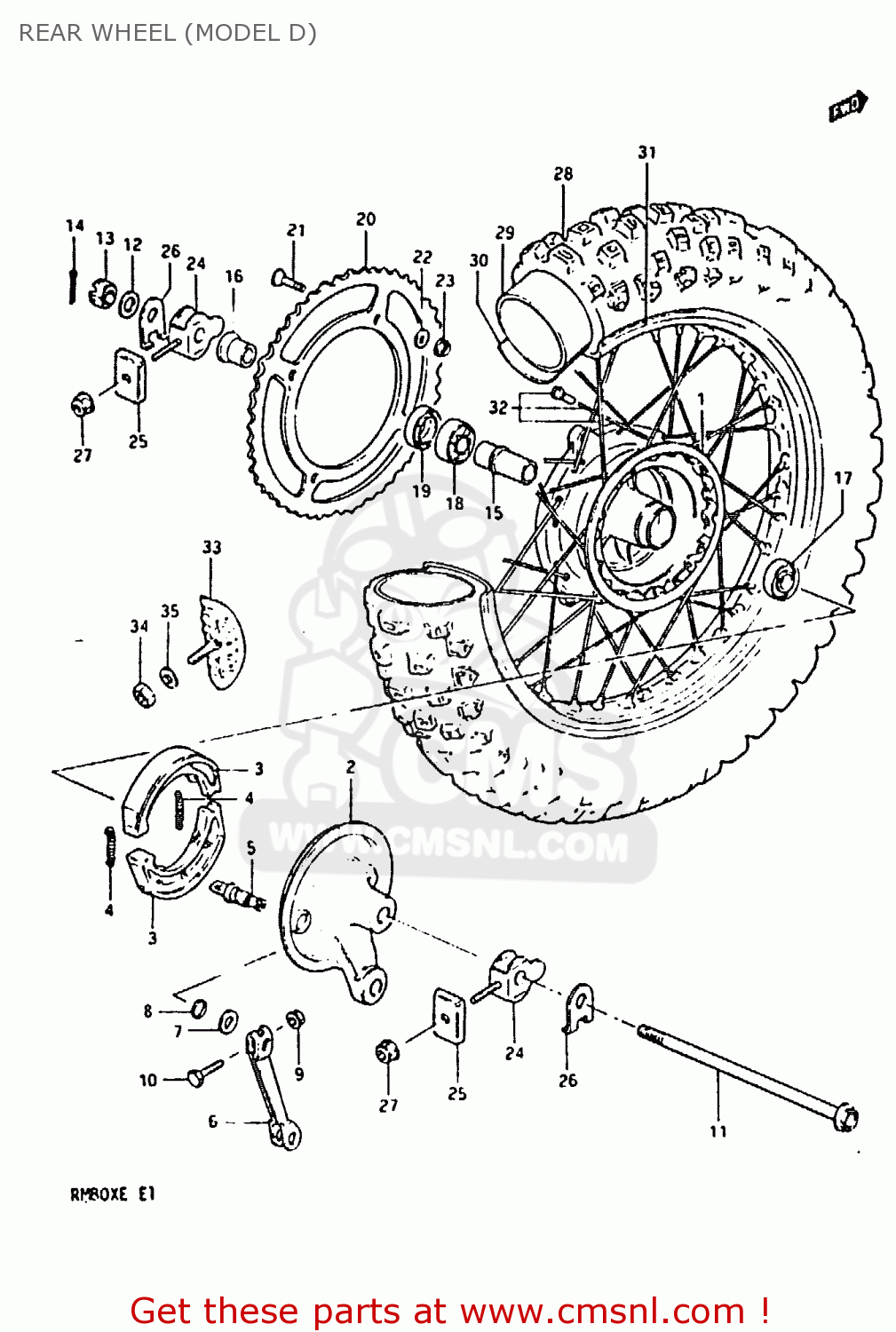

Rear wheel (model d) diagram RM80X 1983 (D)
REAR WHEEL (MODEL D) RM80X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
6411020402
ref: 1
HUB,REAR
€ 89.00
2
6421020900
ref: 2
PANEL,REAR HUB
€ 41.50
3
6441020402
ref: 3
SHOE,BRAKE
€ 8.50
4
0944307025
ref: 4
SPRING(L:35.8)
€ 2.50
5
5444120900
ref: 5
CAM,BRAKE
€ 9.50
6
6445120400
ref: 6
LEVER,RR BRAKE CAM
€ 234.50
7
0916012011
ref: 7
WASHER(12.5X20X1)
€ 1.50
8
0928012001
ref: 8
O RING(D:2.5,ID:11.4)
€ 2.50
9
0831616068
ref: 9
NUT
€ 2.50
10
0151706308
ref: 10
BOLT
€ 2.00
11
6471120510
ref: 11
AXLE,REAR
€ 30.50
12
0832211128
ref: 12
WASHER
€ 2.00
13
0831431128
ref: 13
NUT 12MM
€ 2.00
14
0411130208
ref: 14
PIN 30X20
€ 1.50
15
6473020400
ref: 15
SPACER,REAR HUB BEARING
€ 29.50
16
6475120400
ref: 16
SPACER,RR AXLE,L
€ 8.00
17
0812362017
ref: 17
BEARING, RH
€ 15.00
18
0811363010
ref: 18
BEARING
€ 9.50
19
0928418001
ref: 19
OIL SEAL(17X38X5)
€ 12.50
20-1
6451120900
ref: 20-1
NT:50
SPROCKET,REAR (NT:50)(AL)
€ 96.00
20-2
6451120920
ref: 20-2
NT:48, OPT
SPROCKET,RR(NT:48)
€ 68.50
20-3
6451120930
ref: 20-3
NT:52, OPT
SPROCKET,REAR (NT:52)(AL)
€ 96.00
20-4
6451120940
ref: 20-4
NT:54, OPT
SPROCKET,REAR
€ 84.00
21
0912008004
ref: 21
SCREW(8X33.5)
€ 3.00
22
0832221088
ref: 22
WASHER
€ 2.00
23
0831931088
ref: 23
NUT
€ 2.50
24
6141020900
ref: 24
ADJUSTER CHAIN
€ 9.50
25
6142126501
ref: 25
ADJUSTER,CHAIN
€ 4.00
26
6471220900
ref: 26
WASHER,CHAIN ADJUSTER
€ 2.00
27
0831931088
ref: 27
NUT
€ 2.50
28-1
6510020900
ref: 28-1
IRC
TIRE
€ 52.50
28-2
6510020520
ref: 28-2
BS
TIRE 4.10-14
€ 0.00
29
6520020300
ref: 29
TUBE ASSEMBLY,WHEEL,INNER
€ 26.00
30
5526124010
ref: 30
PROTECTOR,INNER TUBE
€ 9.50
31
6531120400
ref: 31
RIM,REAR WHEEL
€ 149.00
32
6532020410
ref: 32
SPOKE SET
€ 29.50
33
6527046910
ref: 33
STOPPER,BEAD
€ 30.50
34
0831012088
ref: 34
NUT
€ 2.00
35
0832211088
ref: 35
WASHER
€ 2.00
