REAR SWINGING ARM (MODEL E)
RM80X 1983 (D)

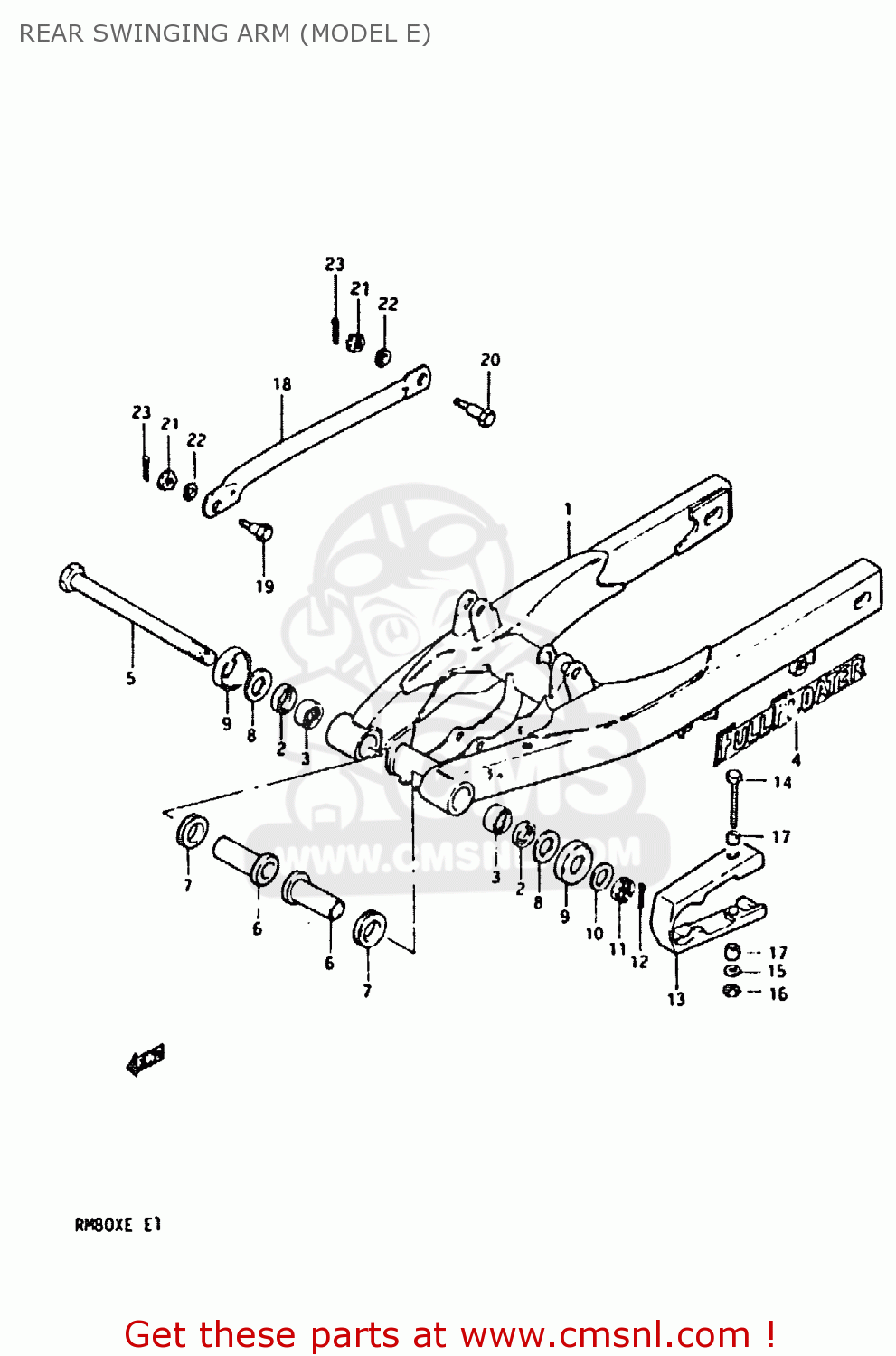

Rear swinging arm (model e) diagram RM80X 1983 (D)
REAR SWINGING ARM (MODEL E) RM80X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
610002091008C
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
0928517001
ref: 2
SEAL,OIL(17X24X3)
€ 3.50
3
0926317011
ref: 3
ROLLER BEARING (17X24X2
€ 13.50
4
683812092097J
ref: 4
EMBLEM
€ 0.00
5
6121120400
ref: 5
SHAFT,REAR SWING ARM
€ 13.00
6
6125120400
ref: 6
SPACER,RR SWGARM PIVOT
€ 15.50
7
0928617001
ref: 7
SEAL,OIL(17X24X5)
€ 3.50
8
0821112281
ref: 8
WASHER
€ 2.00
9
6126241500
ref: 9
COVER,RR SWGARM DUST SEAL
€ 7.50
10
0832211128
ref: 10
WASHER
€ 2.00
11
0831441128
ref: 11
NUT, REAR AXLE
€ 2.50
12
0411120308
ref: 12
COTTER PIN
€ 1.00
13
6127320901
ref: 13
BUFFER,CHAIN TOUCH DEFLECTOR
€ 25.50
14
6127520901
ref: 14
SCREW,CHAIN TOUCH DEFEND
€ 1.50
15
0832221058
ref: 15
WASHER
€ 2.50
16
0831022058
ref: 16
NUT
€ 2.50
17
0918005015
ref: 17
SPACER (5.5X8X4)
€ 3.00
18
643112030008C
ref: 18
LINK,REAR TORQUE
€ 14.50
19
0911108015
ref: 19
BOLT(8X22)
€ 3.00
20
0911108048
ref: 20
BOLT(8X21)
€ 3.50
21
0914008008
ref: 21
NUT
€ 1.50
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
0411120208
ref: 23
PIN 20X20
€ 1.50
