CUSHION LEVER
RM80X 1983 (D)

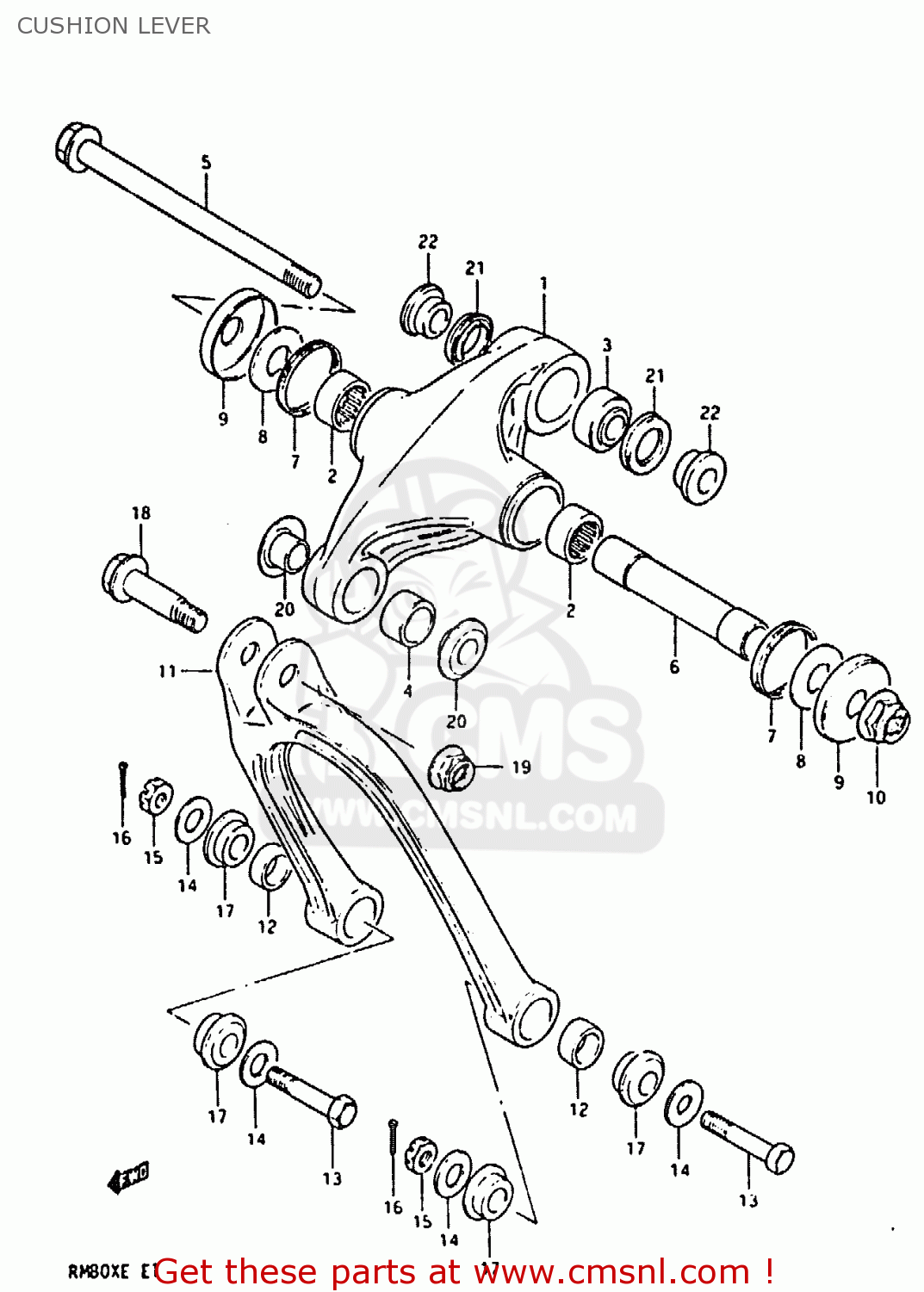

Cushion lever diagram RM80X 1983 (D)
CUSHION LEVER RM80X 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
6260020841
ref: 1-1
MODEL D
LEVER SET,REAR CUSHION
€ 104.00
1-2
6260020871
ref: 1-2
MODEL E
LEVER SET,REAR CUSHION
€ 133.50
2
0926317018
ref: 2
BEARING(17X25X20)
€ 36.00
3-1
0926910001
ref: 3-1
MODEL D
BEARING
€ 66.00
3-2
0926910004
ref: 3-2
MODEL E
BEARING
€ 66.00
4
6268520900
ref: 4
BUSH,FR
€ 9.00
5-1
6262120401
ref: 5-1
MODEL D
SHAFT,REAR CUSHION LEVER
€ 14.50
5-2
6262120402
ref: 5-2
MODEL E
SHAFT,REAR CUSHION LEVER
€ 14.50
6
6262320401
ref: 6
SPACER,REAR CUSHION LEVER
€ 14.00
7
6262420401
ref: 7
DUST SEAL,RR CUSHION LEVER
€ 6.00
8
0821112341
ref: 8
WASHER
€ 2.00
9
6262720900
ref: 9
DUST COVER,REAR CUSHION
€ 3.00
10
0831931128
ref: 10
NUT 12MM
€ 4.00
11
6260020852
ref: 11
ROD SET,REAR CUSHION LEVER
€ 248.00
12
6264220900
ref: 12
BUSHING
€ 9.00
13
6231320900
ref: 13
BOLT,REAR CUSHION LEVER
€ 2.00
14
0832211088
ref: 14
WASHER
€ 2.00
15
0831441088
ref: 15
NUT 8MM
€ 2.50
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
6268620910
ref: 17
SPACER,REAR CUSHION ROD
€ 8.50
18
0910310049
ref: 18
BOLT(10X44)
€ 5.50
19
0831931108
ref: 19
NUT
€ 3.00
20
6268620400
ref: 20
SPACER,REAR CUSHION,FRONT
€ 12.00
21
6268320900
ref: 21
DUST SEAL,REAR CUSHION,LEFT
€ 2.00
22
6268420900
ref: 22
SPACER
€ 8.00
