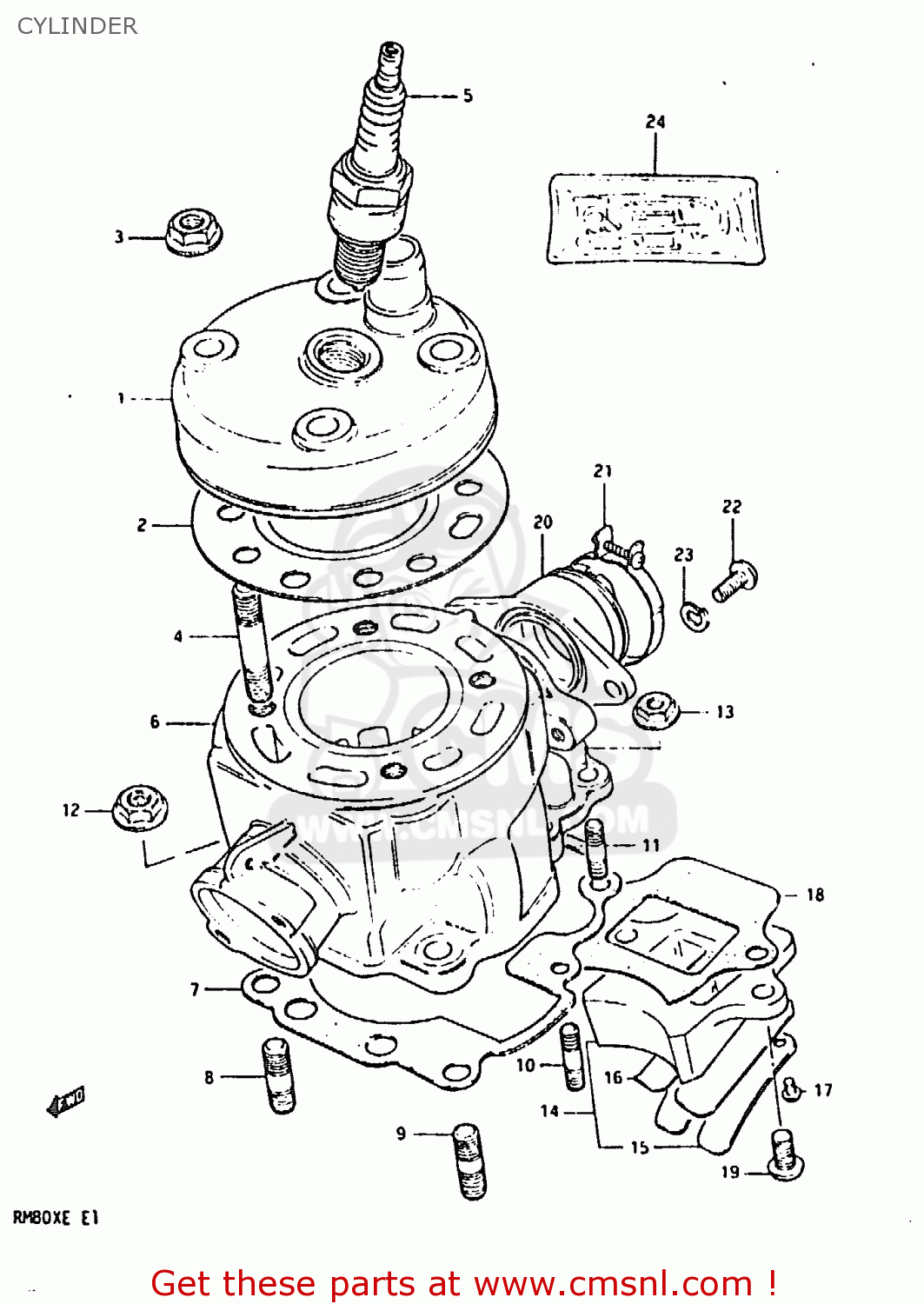

CYLINDER

ref

part #

description

quantity

1

1111120902
ref: 1

HEAD,CYLINDER

€ 138.50

2-1

1114120900
ref: 2-1
MODEL D

GASKET,CYLINDER HEAD (MCA)

€ 15.00

2-2

1114120930
ref: 2-2
MODEL E

GASKET,CYLINDER HEAD

€ 15.00

3

0831616085
ref: 3

NUT 8MM

€ 3.00

4

0910808102
ref: 4

BOLT,STUD

€ 4.00

5-1

0948200232
ref: 5-1

SPARK PLUG

€ 2.50

5-2

0948200160
ref: 5-2

SPARK PLUG W27ES

€ 9.00

5-3

0948200135
ref: 5-3
E4, E6

SPARK PLUG (NGK, BR9ES)

€ 2.50

5-4

0948200233111
ref: 5-4
E4, E6

SPARK PLUG (ND, W27ESR)

€ 10.50

6-1

1121020912
ref: 6-1
MODEL D

CYLINDER

€ 304.50

6-2

1121020941
ref: 6-2
MODEL E

CYLINDER

€ 304.50

7

1124120900
ref: 7

GASKET,CYLINDER (MCA)

€ 12.50

8

0910808106
ref: 8

BOLT,STUD(8X20)

€ 3.00

9

0142108205
ref: 9

STUD BOLT

€ 2.00

10

0142106205
ref: 10

STUD BOLT L:20

€ 2.50

11

0142106165
ref: 11

STUD 6X16

€ 2.00

12

0831616085
ref: 12

NUT 8MM

€ 3.00

13

0831616065
ref: 13

NUT

€ 2.50

14

1315046011
ref: 14

VALVE ASSY,REED

€ 72.00

15

1315223011
ref: 15

STOPPER,REED VALVE

€ 4.50

16

1315327110
ref: 16

VALVE,REED

€ 8.50

17

1315419011
ref: 17

SCREW,REED VALVE

€ 1.50

18

1315646001
ref: 18

GASKET,REED VALVE (MCA)

€ 2.50

19

0211206168
ref: 19

SCREW

€ 2.50

20

1311020400
ref: 20

PIPE,INTAKE

€ 32.50

21

0940242306
ref: 21

CLAMP

€ 4.50

22

0110706208
ref: 22

BOLT

€ 2.00

23

0832121068
ref: 23

LOCK WASHER

€ 2.50

24

1140020870
ref: 24
OPT

GASKET SET (MCA)

€ 72.50

all assemblies
