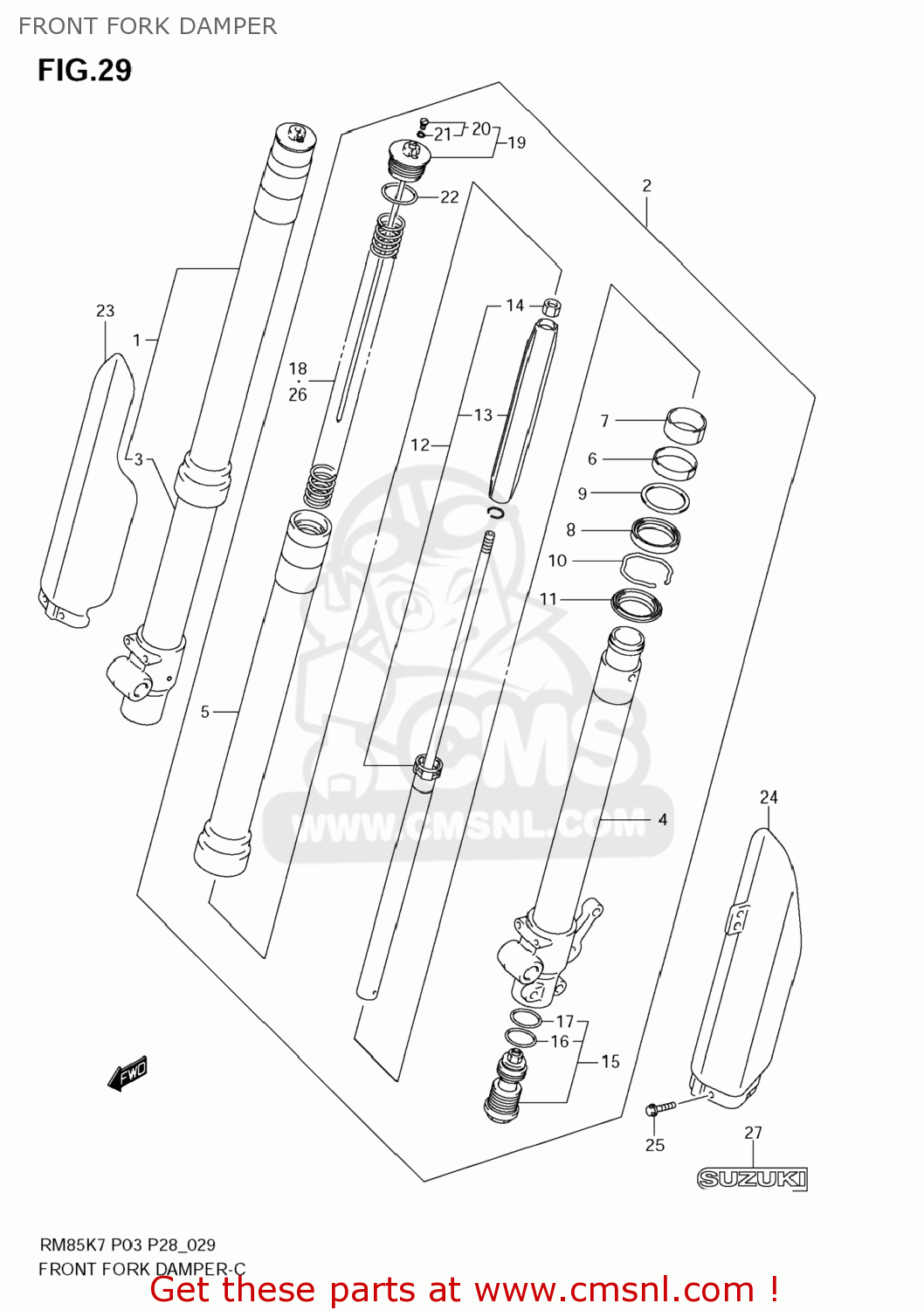

FRONT FORK DAMPER

ref

part #

description

quantity

1

5110303B70
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,115.00

2

5110403B70
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,115.00

3

5111003B30
ref: 3

TUBE,INNER,R

€ 285.00

4

5112003B70
ref: 4

TUBE,INNER,L

€ 285.00

5

5113003B30
ref: 5

TUBE,OUTER

€ 418.50

6

5116703B30
ref: 6

BUSH,GUIDE

€ 10.50

7

5112103B30
ref: 7

BUSH,SLIDE

€ 10.50

8

5115303B30
ref: 8

OIL SEAL,FRONT FORK

€ 15.00

9

5115803B30
ref: 9

SPACER,SEAL

€ 5.50

10

5115603B30
ref: 10

RING,STOPPER

€ 3.00

11

5117303B30
ref: 11

SEAL,DUST

€ 14.00

12

5119003B70
ref: 12

CYLINDER

€ 364.00

13

5117203B30
ref: 13

GUIDE,SPRING

€ 14.50

14

5112903B30
ref: 14

NUT

€ 4.00

15

5117003B70
ref: 15

BOLT,CTR

€ 118.50

16

5117736E20
ref: 16

O RING

€ 2.50

17

5117503B30
ref: 17

O RING

€ 3.00

18

5117103B50
ref: 18

SPRING,FR(K=0.28)

€ 42.50

19

5135103B70
ref: 19

BOLT,FORK

€ 84.00

20

5135727C40
ref: 20

BOLT,PLUG

€ 5.50

21

5111719C10
ref: 21

O RING

€ 2.00

22

5111729EA0
ref: 22

O RING

€ 5.50

23

5150103B10
ref: 23

PROTECTOR,FR FORK,R

€ 57.50

24

5151103B20
ref: 24

PROTECTOR,FR FORK,L

€ 46.50

25

0910306256
ref: 25

BOLT(6X10)

€ 2.00

26-1

5117103B30
ref: 26-1

SPRING,FR(K=0.26)

€ 42.50

26-2

5117103B60
ref: 26-2

SPRING,FR(K=0.30)

€ 47.50

27

6811103410DSV
ref: 27

EMBLEM,SUZUKI

€ 10.00

all assemblies
