MAGNETO

RM85 2010 (L0) USA (E03)

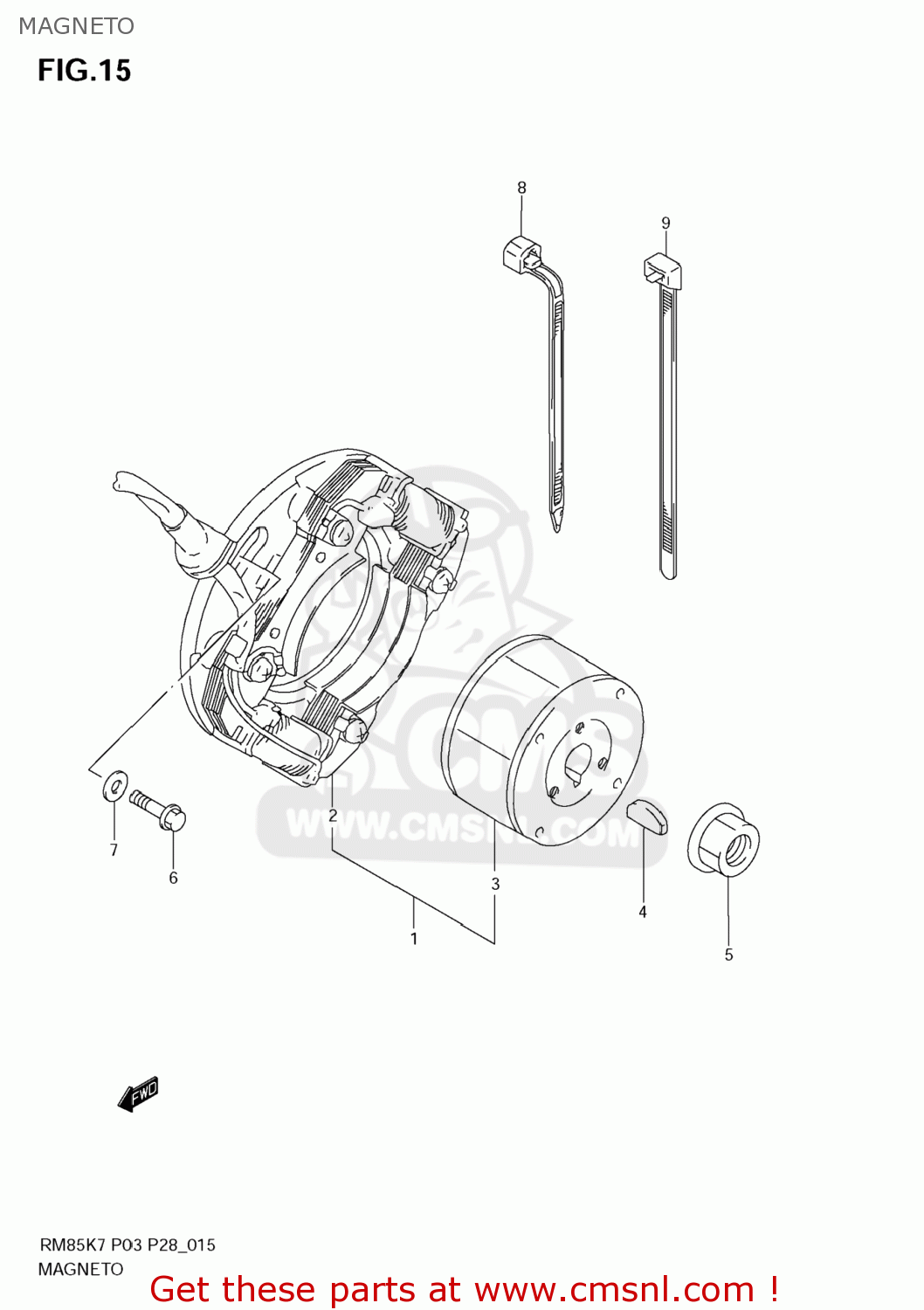

Magneto diagram RM85 2010 (L0) USA (E03)

MAGNETO RM85 2010 (L0) USA (E03)

MAGNETO RM85 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210002B32
ref: 1

MAGNETO ASSY

€ 461.50

2

3210102B32
ref: 2

STARTER ASSY

€ 268.00

3

3210202B31
ref: 3

ROTOR ASSY

€ 253.50

4

0942004008
ref: 4

KEY

€ 3.50

5

083161010B
ref: 5

NUT

€ 2.00

6

0154706207
ref: 6

BOLT

€ 2.50

7

083220106B
ref: 7

WASHER

€ 2.00

8

0940718402
ref: 8

CLAMP(L:165)

€ 2.50

9

0940715401
ref: 9

CLAMP(L:150)

€ 2.50
