REAR SHOCK ABSORBER
RM85 2010 (L0) USA (E03)

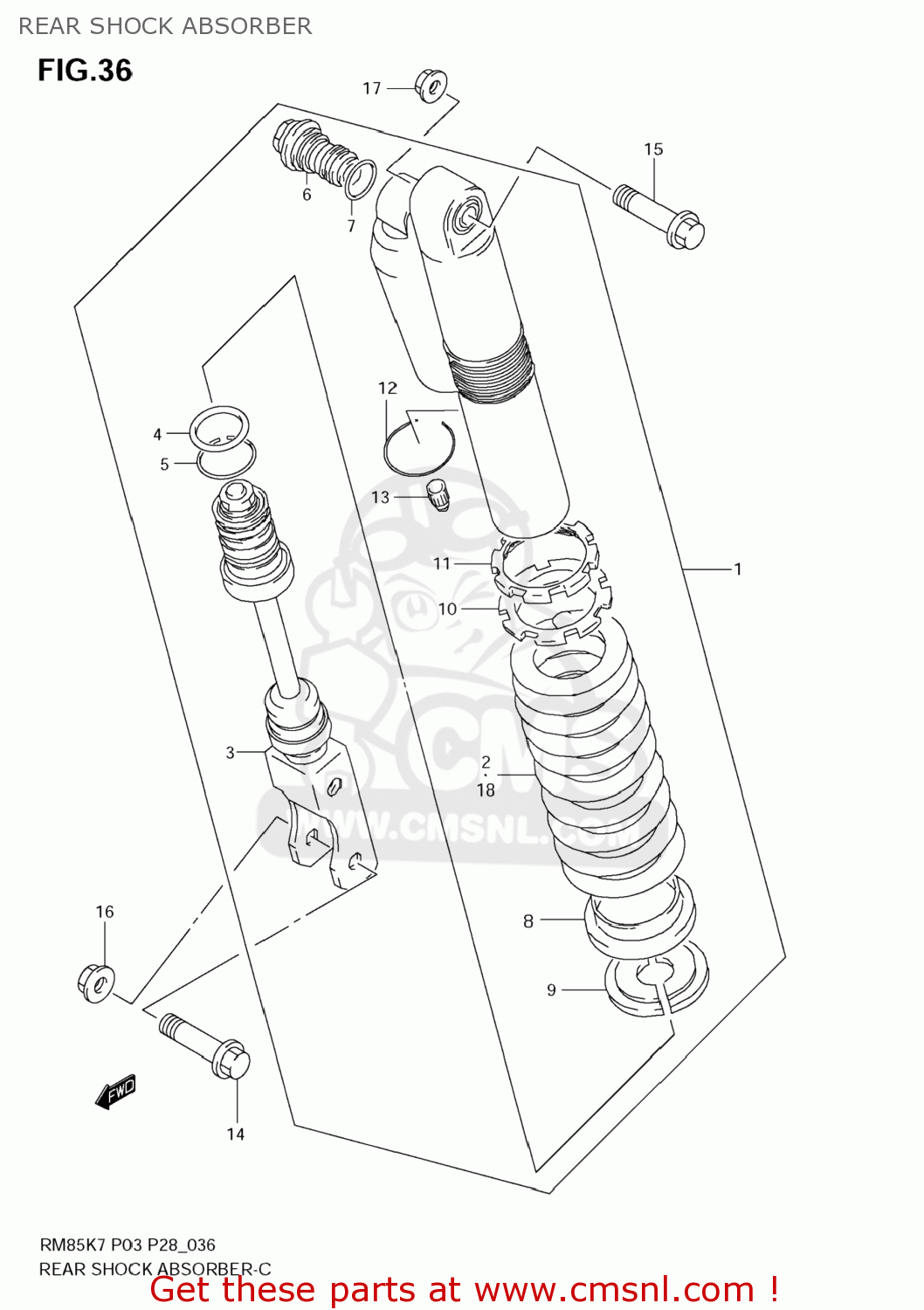

Rear shock absorber diagram RM85 2010 (L0) USA (E03)
REAR SHOCK ABSORBER RM85 2010 (L0) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6210003BD0YKS
ref: 1-1
ABSORBER ASSY,RR SHOCK
€ 682.50
1-2
6210003BF0YKS
ref: 1-2
ABSORBER ASSY,RR SHOCK
€ 682.50
2-1
6221103B90
ref: 2-1
SPRING,RR(K=4.6)
€ 149.50
2-2
6221103BA0
ref: 2-2
SPRING,RR(K=4.8)
€ 187.50
3
6212003BB0
ref: 3
ROD,PISTON
€ 470.00
4
6215303BB0
ref: 4
O RING
€ 5.00
5
6227903BB0
ref: 5
RING,STOPPER
€ 4.50
6
6213003B30
ref: 6
BOLT,PLUG
€ 72.00
7
5117736E20
ref: 7
O RING
€ 2.50
8
6224917C00
ref: 8
SEAT,SPRING
€ 14.00
9
6222517C00
ref: 9
SEAT,SPRING STOPPER
€ 21.50
10
6219119C00
ref: 10
ADJUSTER,SPRING
€ 21.00
11
6219403BB0
ref: 11
NUT,SPRING ADJUSTER
€ 23.50
12
6227803B30
ref: 12
RING,STOPPER
€ 4.50
13
5129420400
ref: 13
CAP
€ 3.50
14
6222137F30
ref: 14
BOLT,RR SHOCK ABSORBER LWR
€ 4.00
15
6264814500
ref: 15
BOLT,RR CUSHION ROD UPR
€ 3.00
16
0915910067
ref: 16
NUT
€ 4.00
17
0915910115
ref: 17
NUT
€ 4.00
18-1
6221103B80
ref: 18-1
SPRING,RR(K=4.4)
€ 159.50
18-1
6221103B80
ref: 18-1
SPRING,RR(K=4.4)
€ 159.50
18-2
6221103BA0
ref: 18-2
SPRING,RR(K=4.8)
€ 187.50
18-2
6221103BA0
ref: 18-2
SPRING,RR(K=4.8)
€ 187.50
18-3
6221103B90
ref: 18-3
SPRING,RR(K=4.6)
€ 149.50
18-3
6221103B90
ref: 18-3
SPRING,RR(K=4.6)
€ 149.50
18-4
6221103BB0
ref: 18-4
SPRING,RR(K=5.0)
€ 183.00
18-4
6221103BB0
ref: 18-4
SPRING,RR(K=5.0)
€ 183.00
