REAR CUSHION LEVER
RM85 2010 (L0) USA (E03)

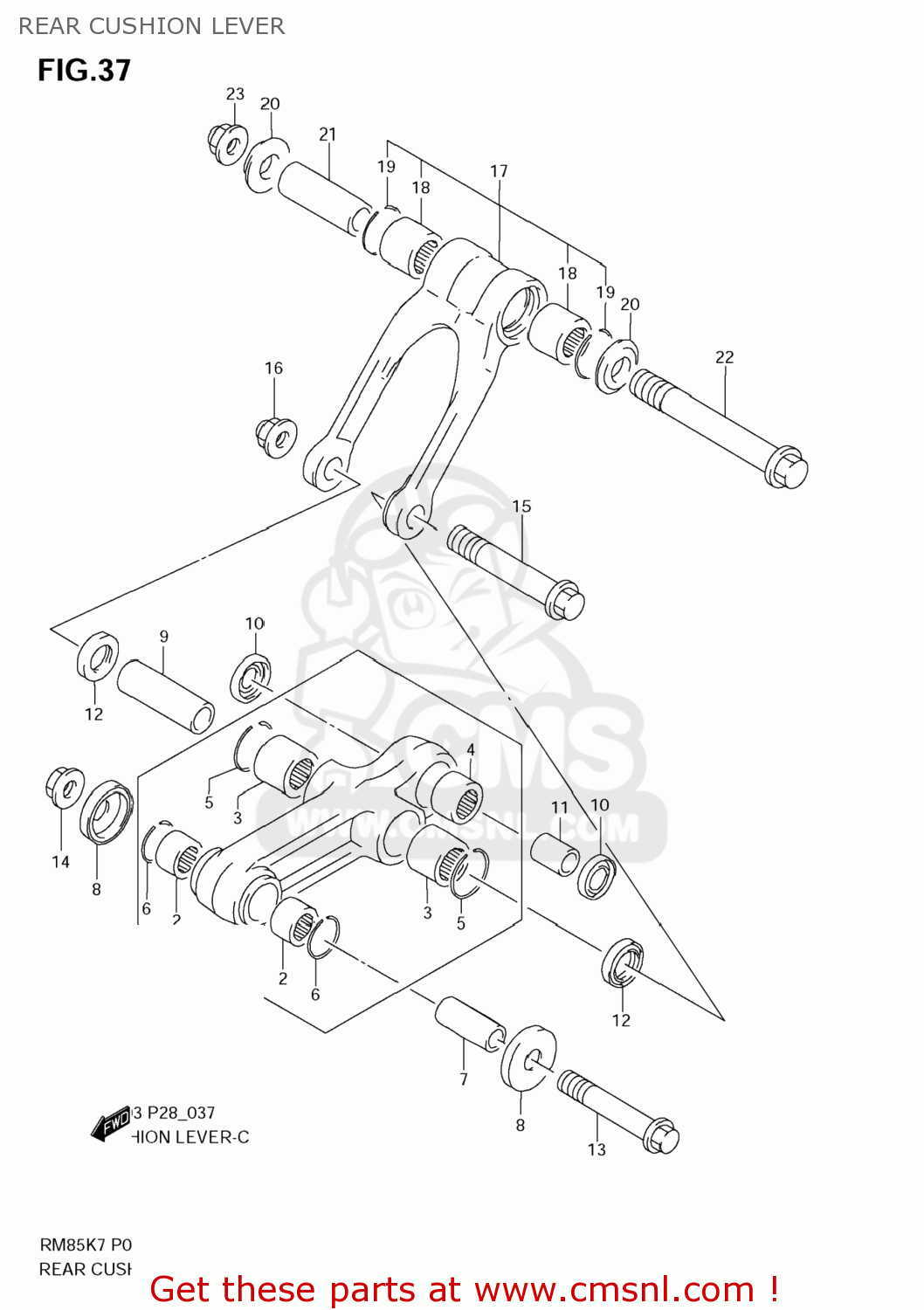

Rear cushion lever diagram RM85 2010 (L0) USA (E03)
REAR CUSHION LEVER RM85 2010 (L0) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260003890
ref: 1
LEVER SET,RR CUSHION
€ 208.50
2
0926314027
ref: 2
BEARING(14X20X12)
€ 11.00
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
0926320083
ref: 4
BEARING(20X26X12)
€ 21.50
5
6265734A01
ref: 5
RING,STOPPER
€ 1.50
6
0938120004
ref: 6
CIRCLIP,PISTON PIN
€ 2.00
7
6231702B40
ref: 7
SPACER,RR CUSHION LEVER FR
€ 8.50
8
6216203B00
ref: 8
SEAL,RR CUSHION LEVER FR DUST
€ 6.50
9
6262602B40
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 10.00
10
0928420001
ref: 10
SEAL,OIL(20X26X4.5)
€ 3.50
11
6268436E00
ref: 11
SPACER,RR CUSHION LEVER RR
€ 9.50
12
0928517001
ref: 12
SEAL,OIL(17X24X3)
€ 3.50
13
6265802B40
ref: 13
BOLT,RR CUSHION LEVER FR
€ 4.50
14
0915910115
ref: 14
NUT
€ 4.00
15
6262102B40
ref: 15
BOLT,RR CUSHION LEVER CTR
€ 5.00
16
083193112A
ref: 16
NUT
€ 4.00
17
6260003880
ref: 17
ROD SET,RR CUSHION LEVER
€ 172.00
18
0926317039
ref: 18
BEARING(17X24X20)
€ 18.00
19
6265734A01
ref: 19
RING,STOPPER
€ 1.50
20
6264702B40
ref: 20
SPACER,RR CUSHION ROD SIDE
€ 6.00
21
6264602B40
ref: 21
SPACER,RR CUSHION ROD
€ 10.00
22
6262202B40
ref: 22
BOLT,RR CUSHION ROD
€ 7.50
23
083193112A
ref: 23
NUT
€ 4.00
