CLUTCH
RM85L 2004 (K4) USA (E03)

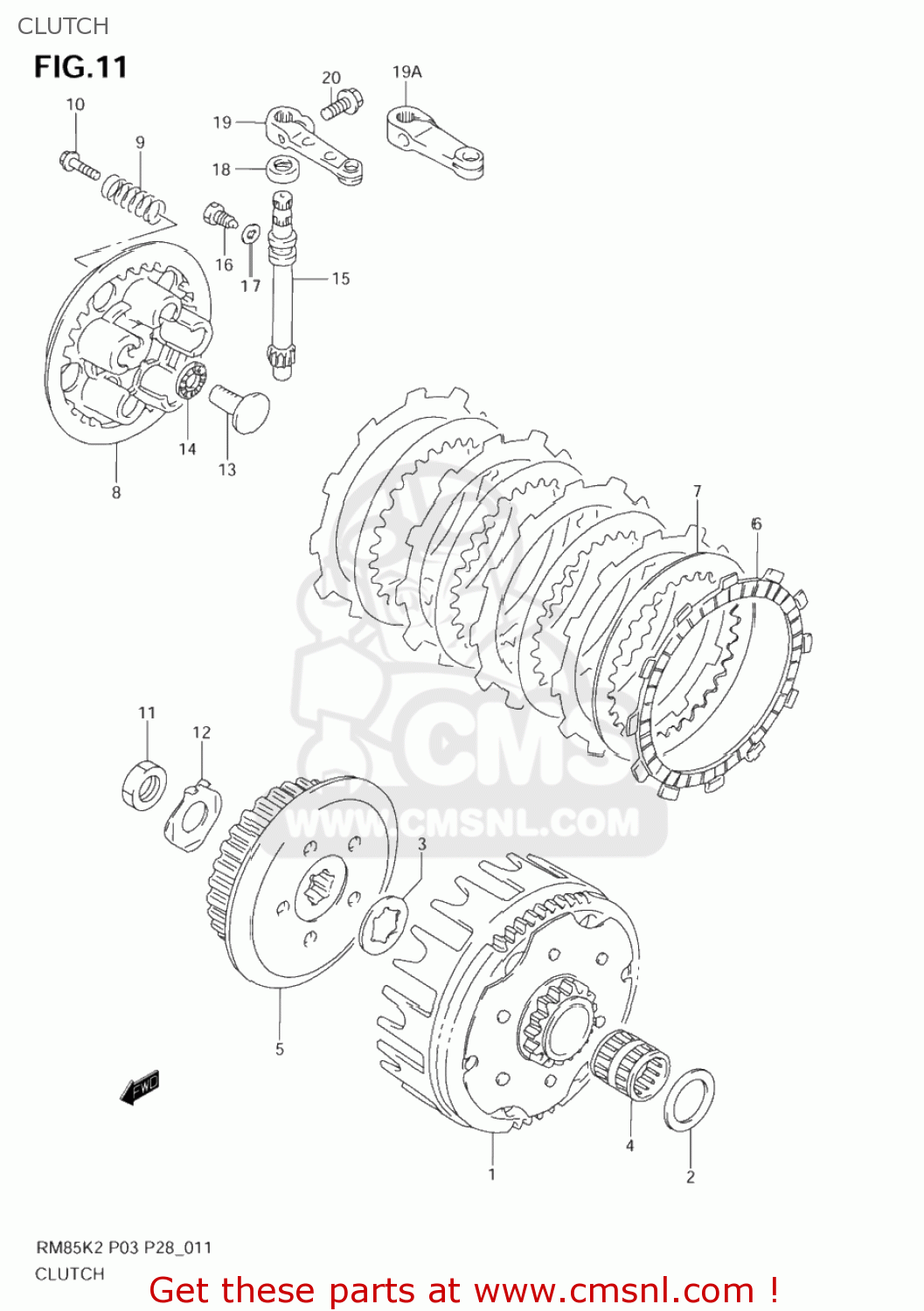

Clutch diagram RM85L 2004 (K4) USA (E03)
CLUTCH RM85L 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120002B41
ref: 1
GEAR ASSY,PRI DRIVEN(NT:62/16)
€ 150.50
2
0918120223
ref: 2
SHIM(20X32X1)
€ 3.00
3
0916720024
ref: 3
WASHER,LOCK
€ 3.50
4
0926320023
ref: 4
BEARING(20X25X26)
€ 15.00
5-1
2141001B00
ref: 5-1
21410-01B01
HUB COMP,CLUTCH SLEEVE
€ 52.50
5-2
2141001B01
ref: 5-2
HUB,CLUTCH SLEEVE
€ 52.50
6
2144113A01
ref: 6
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
7
2145136200
ref: 7
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 5.00
8
2146202B40
ref: 8
21462-02B41
DISC,CLUTCH PRESSURE
€ 21.00
9
0944016017
ref: 9
SPRING
€ 5.00
10-1
0911605020
ref: 10-1
BOLT(5X16)
€ 2.50
10-2
0911605021
ref: 10-2
BOLT(5X20)
€ 1.50
11
0914016027
ref: 11
NUT
€ 5.50
12
0916916005
ref: 12
WASHER
€ 2.50
13
2316544B01
ref: 13
RACK,CLUTCH RELEASE
€ 17.00
14
0926310002
ref: 14
BEARING(10X22X2.8)
€ 8.50
15
2326120A01
ref: 15
PINION,CLUTCH RELEASE
€ 35.00
16
0913506013
ref: 16
09135-06501
BOLT
€ 2.50
17
0916806004
ref: 17
GASKET(6.2X11X1).2 (NAS)
€ 1.50
18
0928510004
ref: 18
SEAL,OIL(10X17X5)
€ 3.50
19
2327120901
ref: 19
23271-20902
ARM,CLUTCH RELEASE
€ 20.50
19A
2327120902
ref: 19A
ARM,CLUTCH RELEASE
€ 20.50
20
0910306234
ref: 20
BOLT(6X16)
€ 2.50
