FUEL TANK (MODEL K4)
RM85L 2004 (K4) USA (E03)

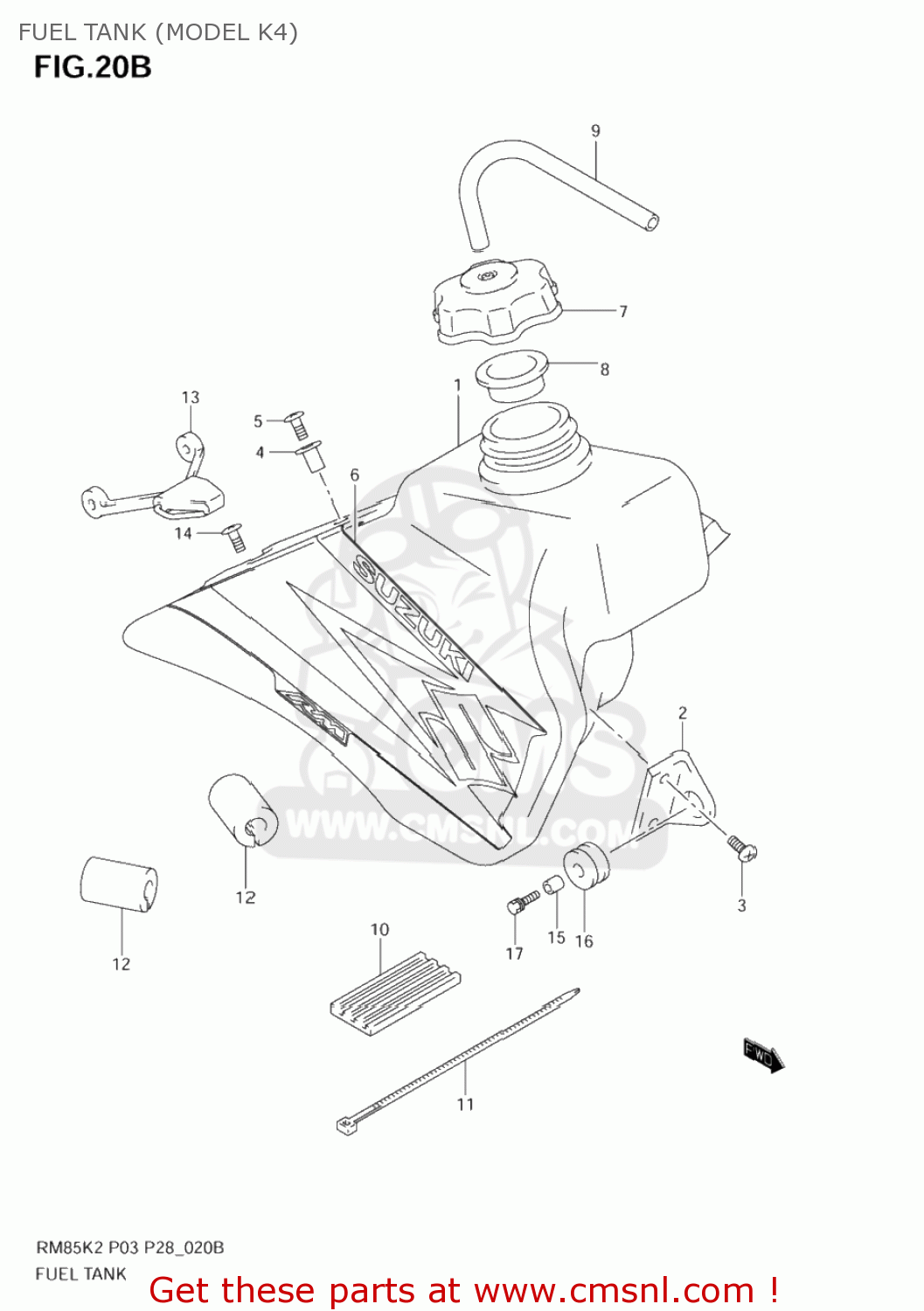

Fuel tank (model k4) diagram RM85L 2004 (K4) USA (E03)
FUEL TANK (MODEL K4) RM85L 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4411003B10YU1
ref: 1
TANK,FUEL(YELLOW)
€ 364.00
2
4413127C01
ref: 2
BRACKET,FUEL TANK FR
€ 6.50
3
0214206123
ref: 3
02142-0612A
SCREW 6X12
€ 2.00
4
4413227C01
ref: 4
HOOK,SEAT FR
€ 39.00
5
0214206203
ref: 5
02142-0620A
SCREW
€ 2.00
6
6811003BD0NN2
ref: 6
TAPE SET,FUEL TANK
€ 89.00
7
4421037F00
ref: 7
CAP,FUEL TANK FILLER
€ 18.00
8
4424827C00
ref: 8
GASKET,CAP (NAS)
€ 4.00
9
0935250823600
ref: 9
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
10
4454114300
ref: 10
CUSHION,FUEL TANK UPR FR
€ 4.50
11
0940725402
ref: 11
CLAMP(L:250)
€ 4.50
12
4454217300
ref: 12
CUSHION,FUEL TANK UPR RR
€ 5.00
13
4456026C00
ref: 13
BAND,FUEL TANK RR
€ 9.50
14
0913906134
ref: 14
SCREW(6X13.5)
€ 1.50
15
0918006268
ref: 15
SPACER(6.5X9X13.5)
€ 2.00
16
1476201B01
ref: 16
CUSHION,MUFFLER
€ 3.00
17
0911606195
ref: 17
BOLT(6X35)
€ 2.50
