REAR SWINGING ARM (MODEL K4)
RM85L 2004 (K4) USA (E03)

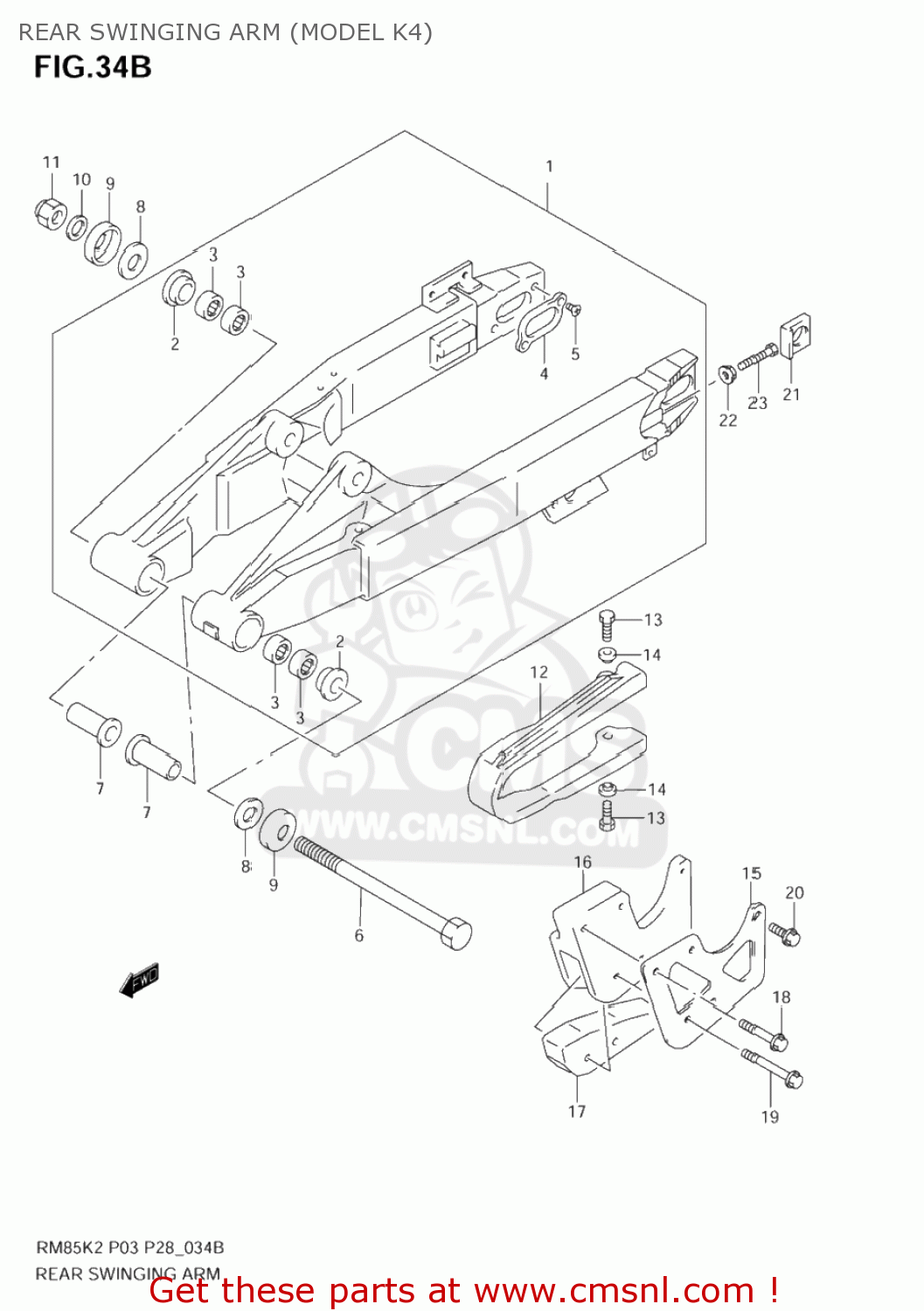

Rear swinging arm (model k4) diagram RM85L 2004 (K4) USA (E03)
REAR SWINGING ARM (MODEL K4) RM85L 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100003B70
ref: 1-1
61000-03B90
SWINGINGARM AS
€ 899.00
1-2
6100003B80
ref: 1-2
61000-03BC0
SWINGINGARM SE
€ 711.50
2
6126102B00
ref: 2
BUSHING,SWGARM PIVOT
€ 9.50
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
6112803B70
ref: 4
PLATE,SWGARM RR
€ 14.50
5
0212204103
ref: 5
02122-0410A
SCREW,UPPER
€ 2.50
6
6121102B40
ref: 6
SHAFT,RR SWINGINGARM PIVOT
€ 10.00
7
6125102B40
ref: 7
SPACER,RR SWGARM PIVOT
€ 14.00
8
0821112282
ref: 8
WASHER
€ 2.00
9
6126203B00
ref: 9
COVER,SWGARM PIVOT
€ 5.00
10
0832201123
ref: 10
08322-0112B
WASHER
€ 2.00
11
0831921128
ref: 11
08319-2112A
NUT 12MM
€ 4.00
12
6127302B20
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 24.50
13
0910306234
ref: 13
BOLT(6X16)
€ 2.50
14
0916906057
ref: 14
WASHER
€ 4.00
15
6134202B40
ref: 15
PLATE,GUIDE CHAIN OUTER
€ 15.00
16
6134302B40
ref: 16
GUIDE,CHAIN
€ 19.00
17
6134802B20
ref: 17
DEFENSE,CHAIN GUIDE
€ 11.00
18
0910306251
ref: 18
BOLT(6X30)
€ 2.50
19
0910306241
ref: 19
BOLT(6X40)
€ 2.50
20
0910306234
ref: 20
BOLT(6X16)
€ 2.50
21
6144503B00
ref: 21
WASHER,CHAIN ADJUSTER
€ 18.50
22
6144703B00
ref: 22
09159-08034
NUT,ADJUSTER
€ 2.00
23
0910008301
ref: 23
BOLT(8X43)
€ 2.50
