CYLINDER
RM85L 2004 (K4) USA (E03)

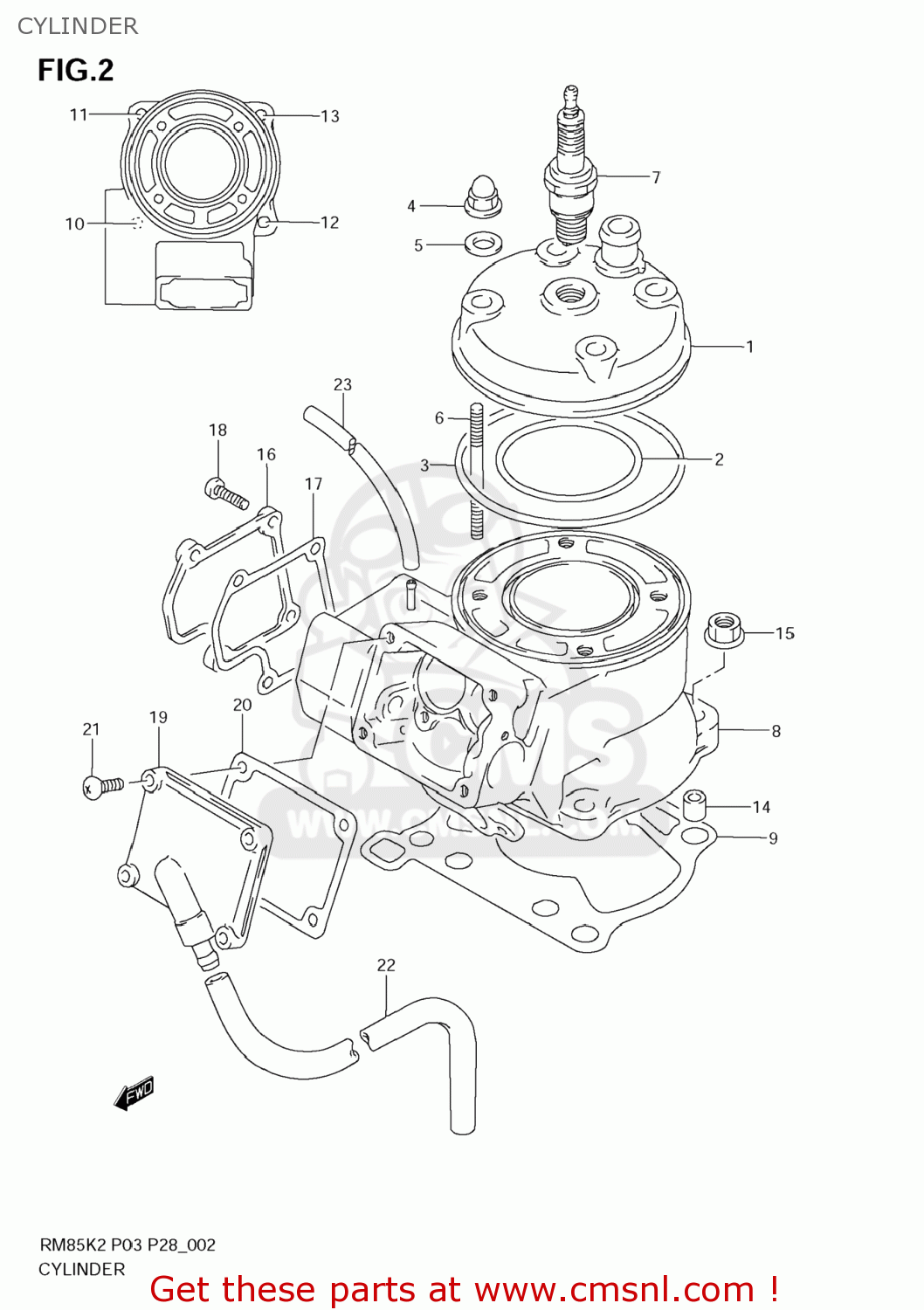

Cylinder diagram RM85L 2004 (K4) USA (E03)
CYLINDER RM85L 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111103B10
ref: 1
HEAD,CYLINDER
€ 73.00
2
1114703B00
ref: 2
O RING,CYLINDER HEAD NO.1
€ 9.00
3
1114803B00
ref: 3
O RING,CYLINDER HEAD NO.2
€ 5.00
4
0915908049
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
09108-08231
BOLT,STUD
€ 4.50
7
0948200360
ref: 7
PLUG,SPARK(BR10ES)
€ 10.00
8-1
1120003820
ref: 8-1
11200-03821
CYLINDERSET
€ 502.50
8-2
1120003830
ref: 8-2
CYLINDER SET
€ 426.50
9
1124103B01
ref: 9
GASKET,CYLINDER (NAS)
€ 5.50
10-1
0910808200
ref: 10-1
09108-08255
BOLT,STUD
€ 3.00
10-2
0142108208
ref: 10-2
01421-0820A
STUD 8X20
€ 2.00
11
0142108258
ref: 11
01421-0825A
STUD 8X25
€ 2.50
12-1
0910808142
ref: 12-1
BOLT,STUD
€ 3.00
12-2
0910808220
ref: 12-2
BOLT,STUD
€ 3.50
13
0142108358
ref: 13
01421-0835A
STUD BOLT
€ 2.00
14
0920611004
ref: 14
PIN(8.4X11X14)
€ 6.00
15-1
0831610083
ref: 15-1
08316-1008B
NUT
€ 3.00
15-2
0915908124
ref: 15-2
NUT
€ 4.50
16
1123102B40
ref: 16
COVER,CYLINDER NO.1
€ 16.00
17
1123302B42
ref: 17
GASKET,CYLINDER COVER NO.1 (NAS)
€ 4.50
18-1
0216205163
ref: 18-1
02162-0516A
BOLT
€ 1.50
18-2
0910305023
ref: 18-2
09103-05016
BOLT,CYLINDER
€ 2.00
19-1
1124019D20
ref: 19-1
COVER,CYLINDER
€ 27.00
19-2
1124812C01
ref: 19-2
COVER,CYLINDER NO.2
€ 22.50
20
1123801B30H17
ref: 20
GASKET,CYL COVER NO.2 (NAS)
€ 6.00
21-1
0216205163
ref: 21-1
02162-0516A
BOLT
€ 1.50
21-2
0910305023
ref: 21-2
09103-05016
BOLT,CYLINDER
€ 2.00
22-1
0935570125600
ref: 22-1
44421-12FR0
HOSE(7X12X600)
€ 26.00
22-1
0935570125600
ref: 22-1
44421-12FR0
HOSE(7X12X600)
€ 26.00
22-2
0935950823600
ref: 22-2
HOSE(5X8.2X600)
€ 14.00
22-2
0935950823600
ref: 22-2
HOSE(5X8.2X600)
€ 14.00
23-1
0935250823600
ref: 23-1
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
23-1
0935250823600
ref: 23-1
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
23-2
0935250823600
ref: 23-2
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
23-2
0935250823600
ref: 23-2
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
