FRONT MASTER CYLINDER (MODEL K2/K3/K4)
RM85L 2004 (K4) USA (E03)

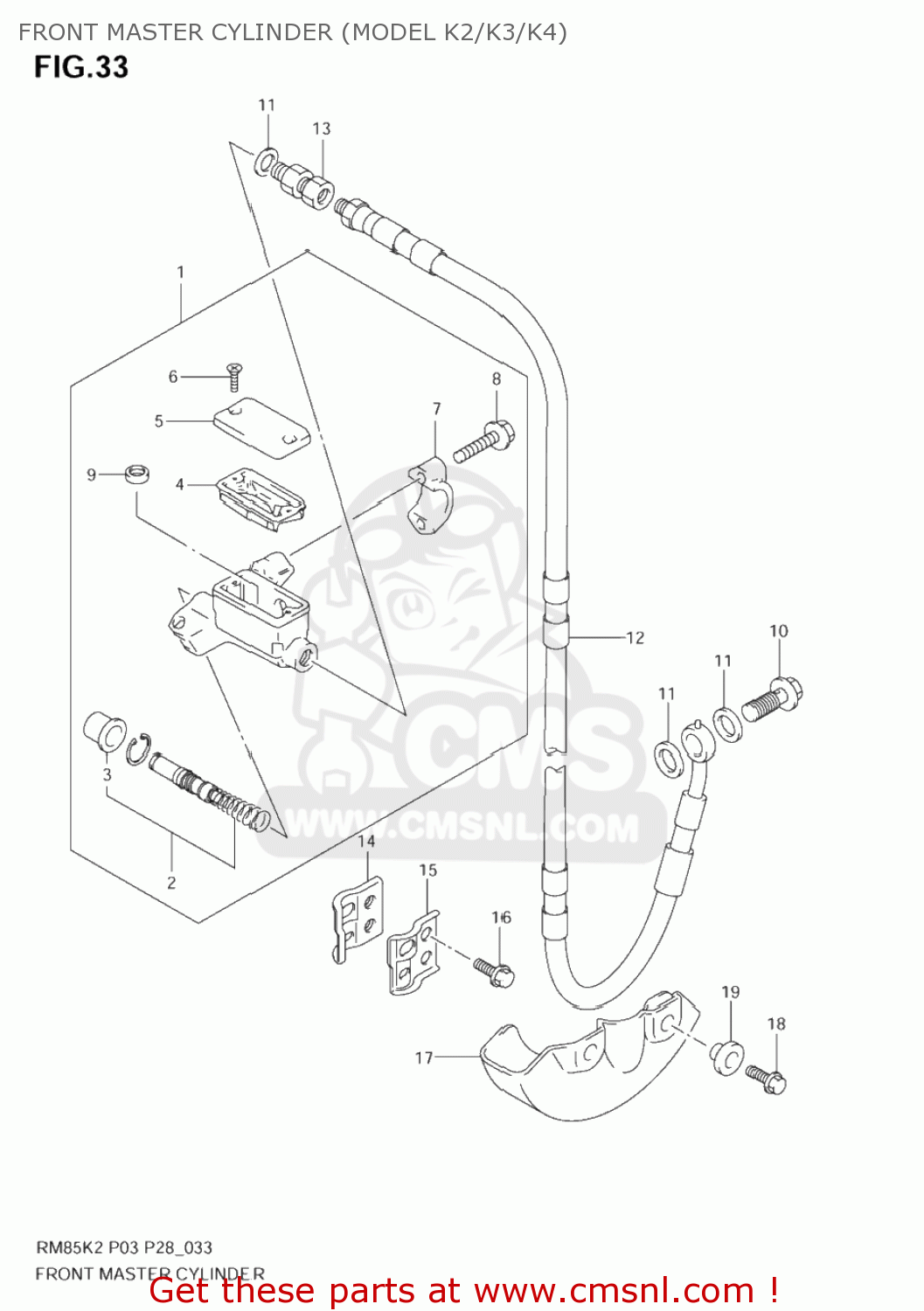

Front master cylinder (model k2/k3/k4) diagram RM85L 2004 (K4) USA (E03)
FRONT MASTER CYLINDER (MODEL K2/K3/K4) RM85L 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5960027C01
ref: 1-1
CYLINDER ASSY,FR MASTER
€ 231.00
1-2
5960027C20
ref: 1-2
CYLINDER ASSY,FR MASTER
€ 161.50
2
5960027820
ref: 2
PISTON & CUP SET
€ 30.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966714500
ref: 4
DIAPHRAGM
€ 6.50
5
5966927C01
ref: 5
CAP
€ 10.00
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967127C00
ref: 7
HOLDER
€ 9.50
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974814500
ref: 9
SEPARATOR
€ 6.00
10
0936010040
ref: 10
09360-10062
BOLT UNION
€ 5.00
11
0916110009
ref: 11
WASHER(10X15X1.5)
€ 2.00
12-1
5948003B60
ref: 12-1
HOSE,FR BRAKE
€ 96.50
12-2
5948003B70
ref: 12-2
HOSE,FR BRAKE
€ 94.00
13
5929014501
ref: 13
ADAPTOR,BRAKE HOSE
€ 18.50
14
5926003B00
ref: 14
CLAMP,FR BRAKE HOSE INNER
€ 6.50
15
5927103B00
ref: 15
CLAMP,FR BRAKE OUTER
€ 5.50
16
0910306234
ref: 16
BOLT(6X16)
€ 2.50
17
5923303B00
ref: 17
COVER,FR BRAKE HOSE
€ 20.00
18
0910306233
ref: 18
BOLT(6X12)
€ 2.00
19
0916906054
ref: 19
09169-06053
WASHER
€ 2.00
